Description
Overview

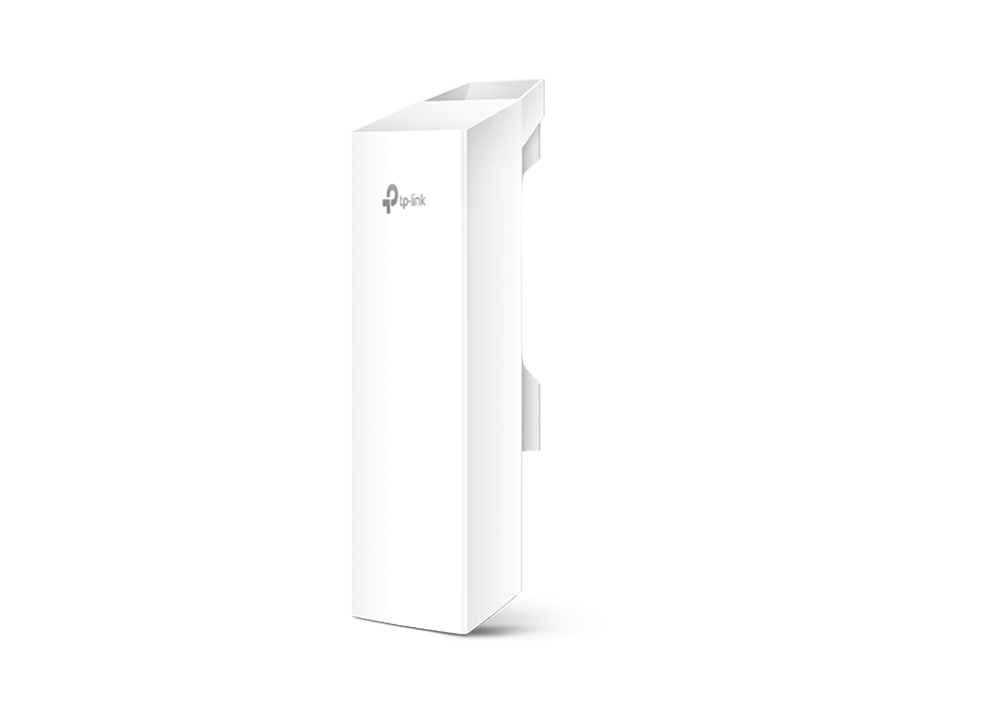

The TP-Link CPE220 is a high-performance outdoor wireless CPE designed for long-range point-to-point or point-to-multipoint applications. Operating on the 2.4GHz frequency band, it delivers wireless speeds up to 300Mbps with a built-in 12dBi dual-polarized directional antenna. Powered by a Qualcomm Atheros 560MHz CPU and equipped with 64MB DDR2 RAM and 8MB flash memory, the device ensures stable and efficient network performance.
Its rugged ASA plastic enclosure is IPX5 waterproof rated, making it suitable for harsh outdoor environments. The CPE220 supports Passive Power over Ethernet (PoE) for flexible installation and includes advanced management features for easy remote control and monitoring.
Technical Specifications
- Processor: Qualcomm Atheros 560MHz CPU, MIPS 24Kc
- Memory: 64MB DDR2 RAM, 8MB Flash
- Wireless Standards: IEEE 802.11b/g/n (Pharos MAXtream disabled), TDMA Mode with Pharos MAXtream enabled
- Wireless Speeds: Up to 300Mbps (40MHz, Dynamic), 144.4Mbps (20MHz), 72.2Mbps (10MHz), 36.1Mbps (5MHz)
- Frequency: 2.4~2.483GHz (region dependent)
- Transmission Power: 30dBm/1000mW (adjustable by 1dBm)
- Antenna: Built-in 12dBi 2×2 dual-polarized directional antenna; Beam Width: 60° (H-Plane) / 30° (E-Plane)
- Interfaces: 1 x 10/100Mbps Shielded Ethernet Port (LAN0, Passive PoE in), 1 x 10/100Mbps Shielded Ethernet Port (LAN1), 1 Grounding Terminal, 1 Reset Button
- Power Supply: Passive PoE via LAN0 (+4,5 pins; -7,8 pins), Voltage range: 16-27VDC
- Max Power Consumption: 10.8 Watts max (power source draw may vary with cable length)
- Protection: 15KV ESD Protection, 6KV Lightning Protection
- Enclosure: Outdoor ASA stabilized plastic, IPX5 waterproof
- Management Features: Pharos Control app, HTTP/HTTPS web management, SNMP v2c, system log, SSH server, dynamic DDNS, ping watchdog
- System Tools: Wireless signal quality indicators, CPU/memory monitors, throughput, stations, interfaces, ARP, routes, WAN, DHCP, spectrum analyzer, speed test, ping, traceroute
- System-level Optimizations: IGMP snooping/proxy for multicast, hardware watchdog
- Dimensions: 276 x 79 x 60 mm (11 x 3.1 x 2.1 inches)
- Certifications: CE, FCC, RoHS, IPX5, UL, IC, GS, PSB, C-tick, SAA, S-Mark, KC-mark
- Package Contents: Outdoor Wireless CPE, 24V 0.5A Passive PoE Adapter, Pole Mounting Straps, AC Power Cord, Installation Guide
- System Requirements: Compatible with Microsoft Windows 98SE and later, Mac OS, NetWare, UNIX, Linux; recommended browsers include Google Chrome, Safari, Firefox (IE not recommended)
- Operating Environment: Temperature -40°C to 70°C (-40°F to 158°F), Humidity 10% to 90% non-condensing
Source: TP-Link official page
