Description
Overview

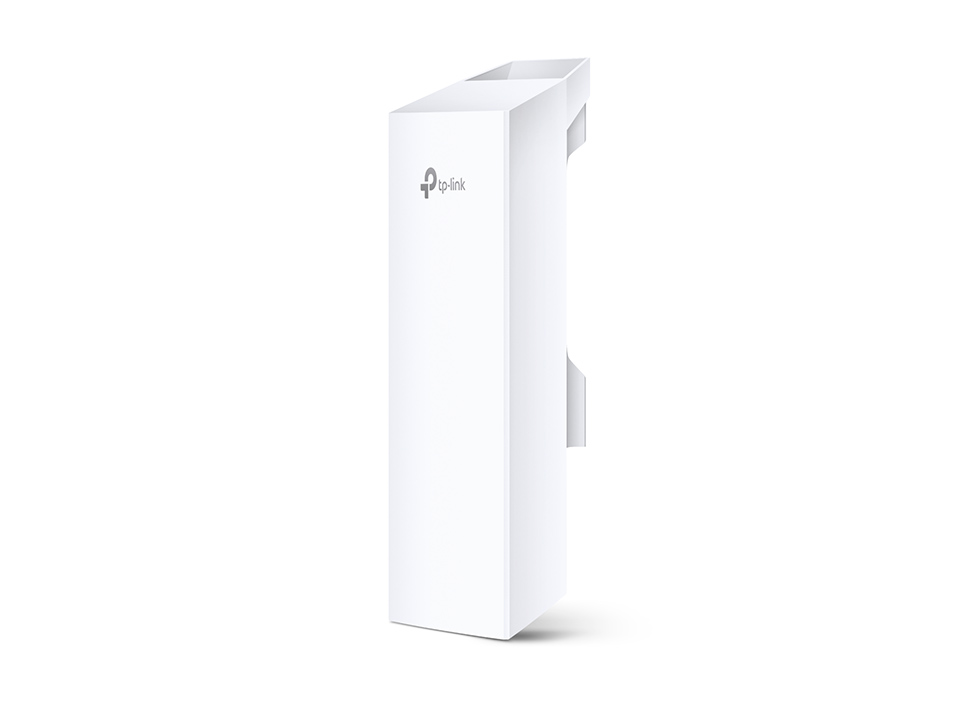

The TP-Link CPE510 is a high-performance outdoor wireless CPE designed for long-distance wireless networking. Operating on the 5GHz frequency band, it delivers wireless speeds up to 300Mbps, making it ideal for outdoor point-to-point or point-to-multipoint applications. Equipped with a powerful Qualcomm Atheros Enterprise 560MHz CPU and 64MB DDR2 RAM, the device ensures stable and efficient data transmission. Its built-in 13dBi dual-polarized directional antenna provides focused signal strength and extended coverage.
Designed for outdoor environments, the CPE510 features an IPX5-rated waterproof ASA plastic enclosure, along with 15KV ESD and 6KV lightning protection, ensuring durability and reliability in harsh conditions. The device supports Passive Power over Ethernet (PoE) for flexible installation options and remote power management.
Technical Specifications
- Processor: Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc
- Memory: 64MB DDR2 RAM, 8MB Flash
- Wireless Standards: IEEE 802.11a/n (Pharos MAXtream disabled)
- Proprietary Protocol: TDMA Mode (Pharos MAXtream enabled)
- Wireless Speeds: Up to 300Mbps (40MHz, Dynamic), 144.4Mbps (20MHz, Dynamic), 72.2Mbps (10MHz, Dynamic), 36.1Mbps (5MHz, Dynamic)
- Frequency Range: 5.15~5.85GHz (country/region dependent)
- Transmission Power: 26dBm/398mW (adjustable by 1dBm)
- Antenna: Built-in 13dBi 2×2 dual-polarized directional antenna; Beam Width: 45° (H-Plane) / 45° (E-Plane)
- Interface: 1x 10/100Mbps shielded Ethernet port (LAN0, Passive PoE in), 1 grounding terminal, 1 reset button
- Power Supply: Passive Power over Ethernet via LAN0 (+4,5 pins; -7,8 pins), Voltage range: 16-27VDC
- Max Power Consumption: 9.8 Watts max (power drawn varies with cable length)
- Protection: 15KV ESD protection, 6KV lightning protection
- Enclosure: Outdoor ASA stabilized plastic, IPX5 waterproof
- Management Features: Pharos Control app, HTTP/HTTPS web management, system log, SNMP agent (v2c), ping watchdog, dynamic DDNS, SSH server
- System Tools: Wireless signal quality indicators, CPU/memory monitors, throughput, stations, interfaces, ARP, routes, WAN, DHCP, spectrum analyzer, speed test, ping, traceroute
- System-level Optimizations: IGMP snooping/proxy for multicast, hardware watchdog
- Dimensions (W x D x H): 224 x 79 x 60 mm
- Certifications: CE, FCC, RoHS, IPX5, UL, IC, GS, PSB, SAA, S-Mark, KC-mark
- Package Content: Outdoor Wireless CPE, 24V 0.5A Passive PoE Adapter, pole mounting straps, AC power cord, installation guide
- System Requirements: Compatible with Microsoft Windows 98SE and later, MAC OS, NetWare, UNIX, Linux; recommended browsers: Google Chrome, Safari, Firefox (IE not recommended)
- Environment: Operating temperature -40°C to 70°C, storage temperature -40°C to 70°C, operating humidity 10%-90% non-condensing, storage humidity 5%-95% non-condensing
Source: TP-Link official page
