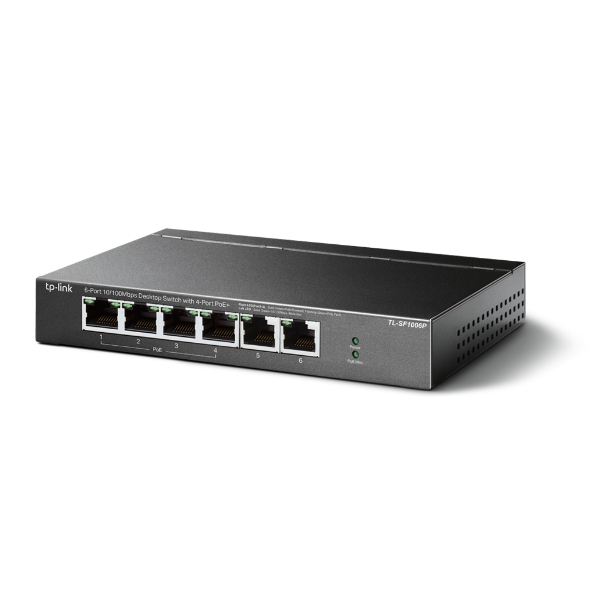

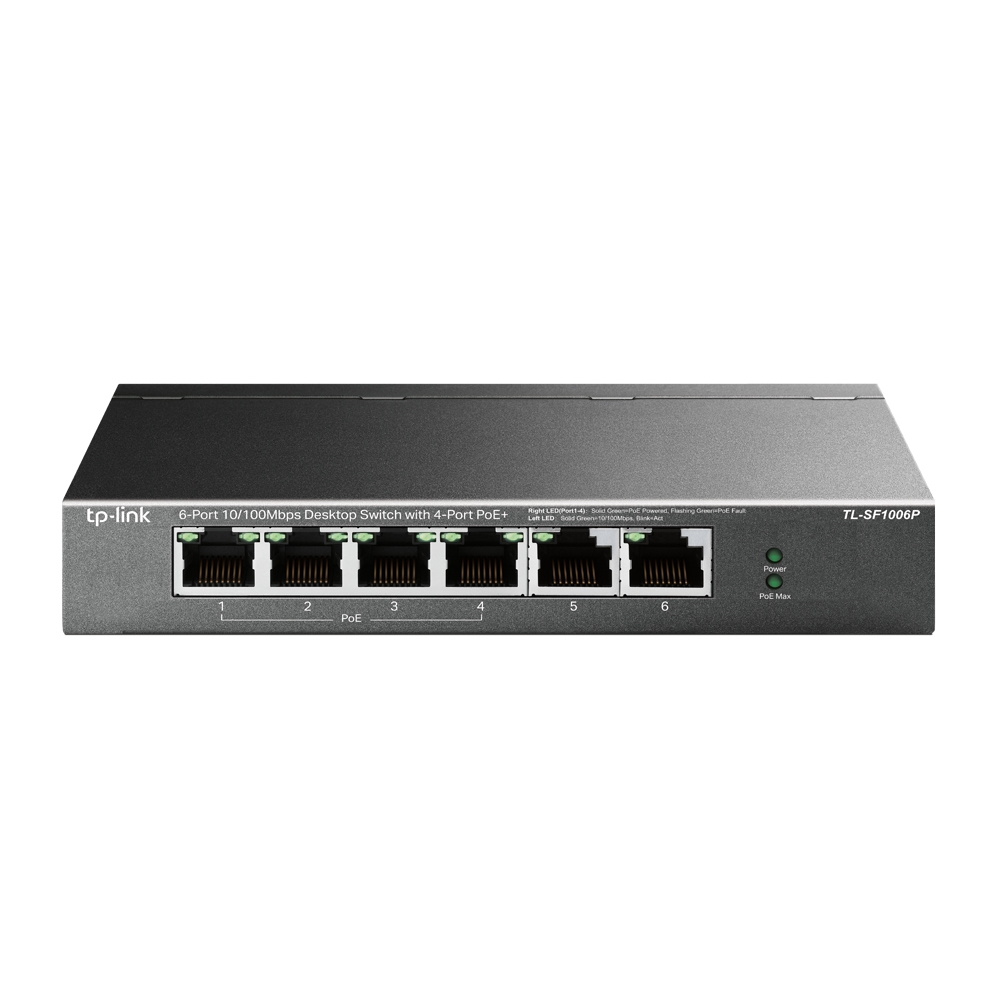

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ and 67W Power Budget

Overview

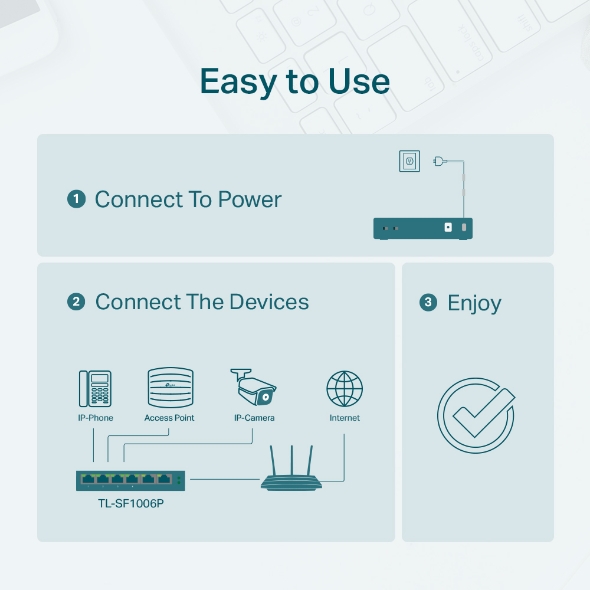

The TP-Link TL-SF1006P is a compact 6-port desktop switch designed for small office and business environments. It features 4 PoE+ ports compliant with IEEE 802.3af/at standards, delivering a total power budget of 67 W to power devices such as IP cameras and wireless access points. The switch supports plug-and-play PoE transmission up to 250 meters, making it ideal for surveillance and network expansion in offices, dormitories, and small businesses. Its fanless design ensures silent operation, and the physical security lock adds an extra layer of protection.

Technical Specifications

• Interface: 6 × 10/100 Mbps RJ45 ports (ports 1-4 support 802.3af/at PoE+), AUTO Negotiation, AUTO MDI/MDIX
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (max 100m); EIA/TIA-568 100Ω STP (max 100m); 100BASE-TX: UTP category 5, 5e cable (max 100m); EIA/TIA-568 100Ω STP (max 100m)
• Fan Quantity: Fanless
• Physical Security Lock: Yes
• External Power Supply: External Power Adapter (Output: 53.5 V DC / 1.31 A)
• Packet Forwarding Rate: 0.8928 Mpps
• PoE Ports (RJ45): Standard: 802.3 af/at compliant; Ports 1-4; Power Supply: 67 W total
• MAC Address Table: 2K entries
• Jumbo Frame: 2 KB
• Switching Capacity: 1.2 Gbps
• Dimensions (W x D x H): 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
• Max. Power Consumption: 2.52 W (220 V / 50 Hz, no PD connected); 75.4 W (220 V / 50 Hz, with 67 W PD connected)
• Max Heat Dissipation: 8.59 BTU/h (no PD connected); 257.11 BTU/h (with 67 W PD connected)
• Advanced Features: Compatible with IEEE 802.3af/at compliant PDs; Extend Mode Button (Ports 1-4); Priority Mode Button (Ports 1-2); PoE Auto Recovery (Ports 1-4); MAC Address Auto-Learning and Auto-Aging; IEEE 802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode
• Transmission Method: Store-And-Forward
• Certification: FCC, CE, RoHS
• Package Content: TL-SF1006P switch, Power Adapter, Installation Guide
• Environment: Operating Temperature: 0–40 °C (32–104 °F); Storage Temperature: -40–70 °C (-40–158 °F); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link official page
