Description
Overview

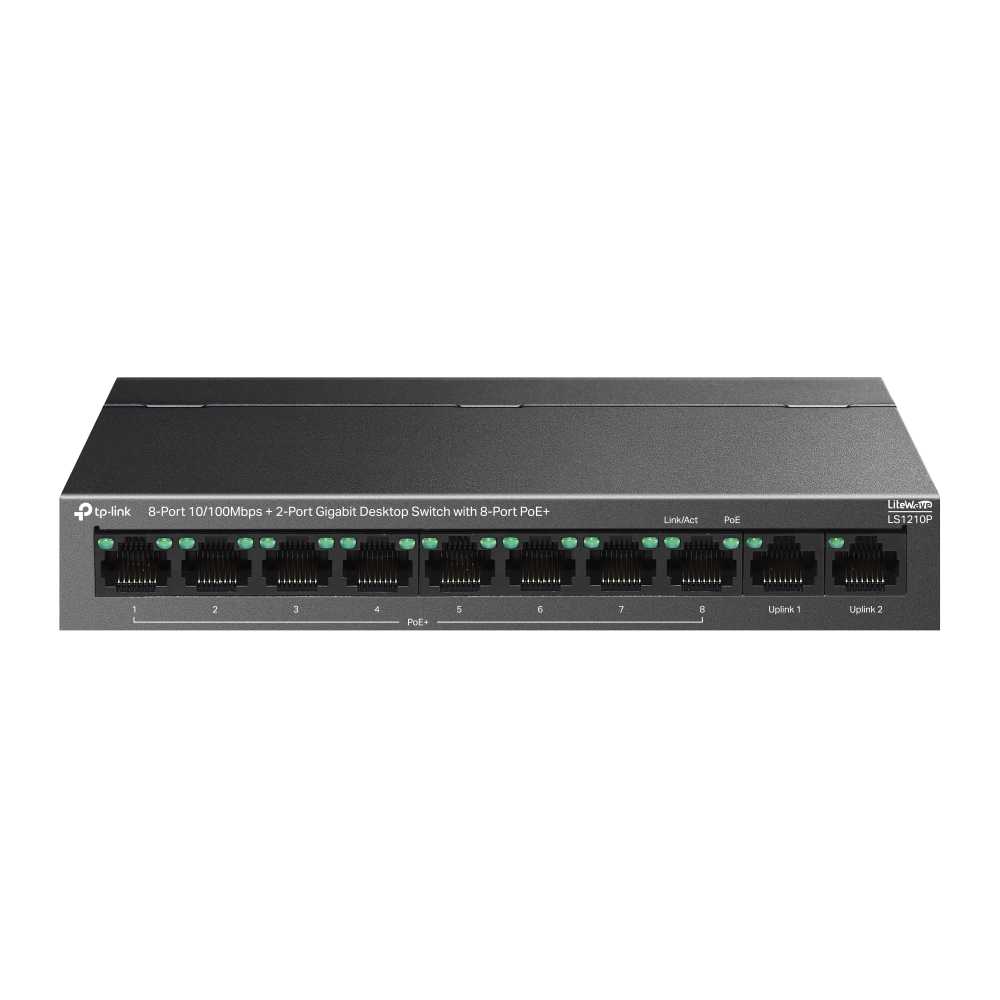

The TP-Link LS1210P is a 10-port desktop switch designed for efficient network connectivity with Power over Ethernet (PoE) capabilities. Featuring 8 PoE+ ports delivering a combined power budget of 96 W and 2 additional Gigabit ports, it is ideal for surveillance systems and small office networks. The switch supports up to 30 W PoE output per port, enabling easy connection of devices such as IP cameras and wireless access points without the need for separate power supplies.
Its fanless design ensures silent operation, making it suitable for noise-sensitive environments. The switch supports multiple IEEE standards for reliable and fast data transmission, and includes advanced features like Extend Mode, Isolation Mode, and PoE Auto Recovery to enhance network stability and security.
Technical Specifications
- Standards and Protocols: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ab
- Interface: 8 x 10/100 Mbps PoE+ RJ45 ports + 2 x 10/100/1000 Mbps RJ45 ports; AUTO Negotiation/AUTO MDI/MDIX
- Network Media: 10BASE-T: UTP category 3, 4, 5 cable (max 100m); 100BASE-TX: UTP category 5 or above cable (max 100m); 1000BASE-T: UTP category 5e or above cable (max 100m)
- Fan Quantity: Fanless
- External Power Supply: External Power Adapter (Input: 220~240V, 50/60Hz; Output: 53.5 VDC / 1.92 A)
- LED Indicators: Power, Link/Act, PoE Status
- Packet Forwarding Rate: 4.1664 Mpps
- PoE Ports (RJ45): Ports 1-8 compliant with IEEE 802.3af/at standards; Power Supply: 96 W total
- Dimensions (W x D x H): 6.7 x 3.9 x 1.1 inches (171 x 98 x 27 mm)
- Max. Power Consumption: 99.52 W
- Max Heat Dissipation: 338.368 BTU/h
- Switching Capacity: 5.6 Gbps
- Packet Buffer Memory: 2 Mbit
- Advanced Features: Extend Mode (Ports 1-4 / 1-8), Isolation Mode (Ports 1-8), PoE Auto Recovery (Ports 1-8)
- Jumbo Frame: 2 KB
- MAC Address Table: 2K entries
- Transmission Method: Store-And-Forward
- Package Content: Switch, Power Adapter, Rubber Feet, Installation Guide
- Certifications: CE, RoHS
- Environment: Operating Temperature 0°C to 40°C (32°F to 104°F); Storage Temperature -40°C to 70°C (-40°F to 158°F); Operating Humidity 10% to 90% non-condensing; Storage Humidity 5% to 90% non-condensing
Source: TP-Link official page
