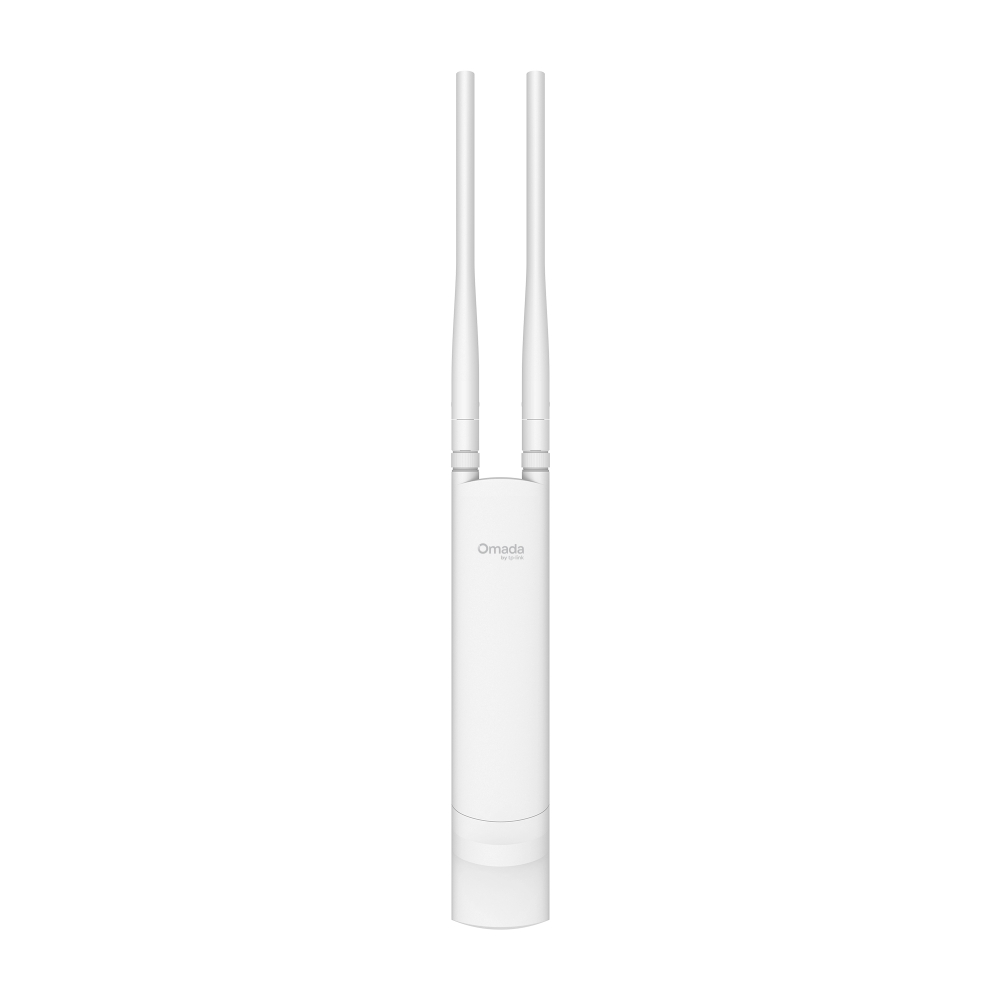

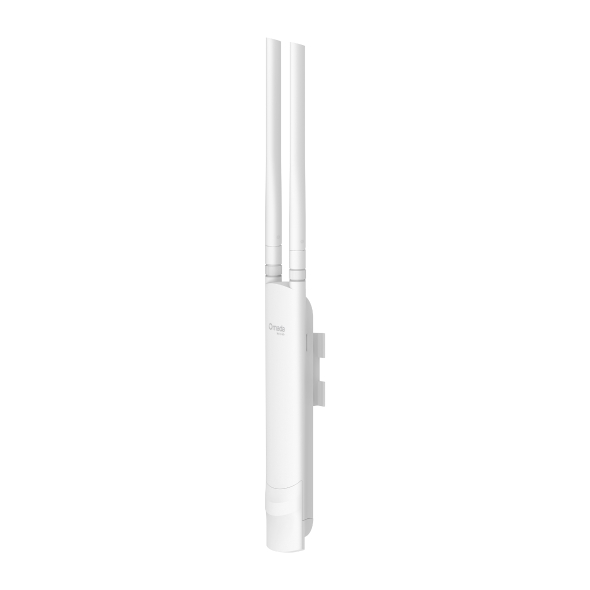

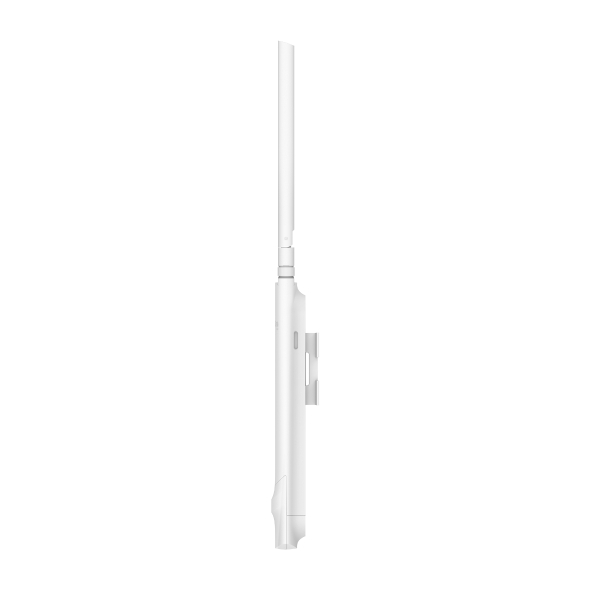

TP-Link EAP225-Outdoor AC1200 Wireless MU-MIMO Gigabit Access Point

Overview

The TP-Link EAP225-Outdoor is an AC1200 Wireless MU-MIMO Gigabit Access Point designed specifically for outdoor environments. It features a weatherproof IP65-rated enclosure that protects the device from harsh weather conditions, making it ideal for outdoor deployments. This access point supports dual-band wireless connectivity with speeds up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, providing reliable and fast wireless coverage.

Equipped with MU-MIMO technology, the EAP225-Outdoor efficiently handles multiple devices simultaneously, improving network performance. It supports seamless roaming and Omada Mesh for extended coverage and centralized management through Omada controllers or cloud-based solutions. The device also includes advanced wireless security features and flexible mounting options for pole or wall installation.

Technical Specifications

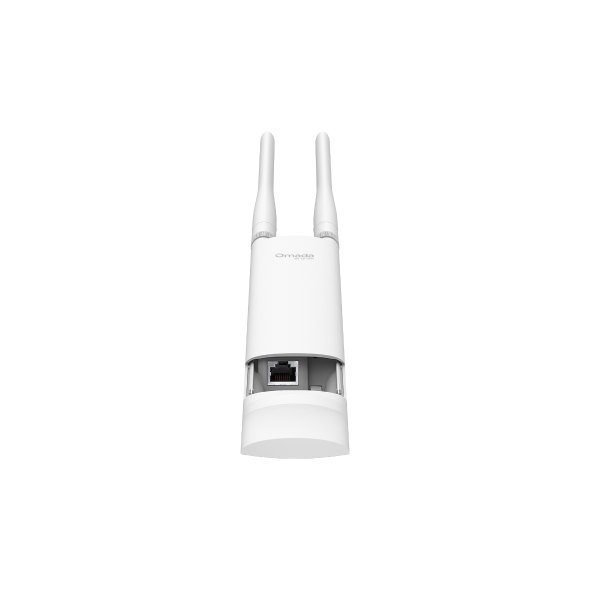

• Interface: 1× Gigabit Ethernet (RJ-45) Port (Supports 802.3af/at PoE (Alternative A) and Passive PoE)
• Button: Reset
• Power Supply: 802.3af PoE; 24V Passive PoE (+4,5pins; -7,8pins; PoE Adapter Included – For Dry Indoor Use Only)
• Max. Power Consumption: 10.5W
• Dimensions (W x D x H): 1.8 × 1.1 × 8.5 in (46 × 26.7 × 214.9 mm) (without antenna & mounting kit)
• Antenna: 2 Dual-Band Omni Antennas (External Detachable) – 2.4 GHz: 2× 3 dBi; 5 GHz: 2× 5 dBi
• Weatherproof Enclosure: IP65

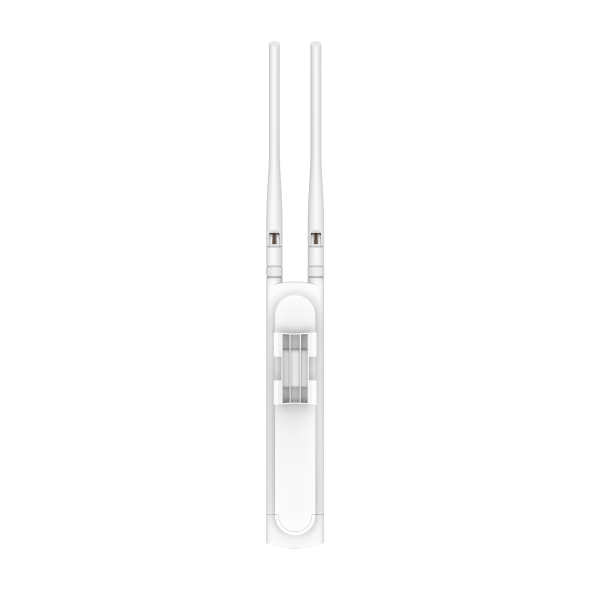

• Mounting: Pole/Wall Mounting (Kits included)
• Wireless Standards: IEEE 802.11a/b/g/n/ac
• Frequency: 2.4 GHz, 5 GHz
• Signal Rate: 802.11ac: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80); 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT 20/40); 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps; 802.11b: 1, 2, 5.5, 11 Mbps; 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• Wireless Functions: Multiple SSIDs (up to 16 SSIDs, 8 per band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS (WMM), MU-MIMO, Seamless Roaming (802.11k/v/r)*, Omada Mesh*, Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
• Wireless Security: Captive Portal Authentication*, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support
• Transmission Power: CE: <20 dBm (2.4 GHz, EIRP), <27 dBm (5 GHz, EIRP); FCC: <23 dBm (2.4 GHz), <22 dBm (5 GHz)
• Omada App: Yes
• Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
• Cloud Access: Yes (requires Omada controller)
• Email Alerts: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• System Logging Local/Remote Syslog: Yes
• SSH: Yes
• Web-based Management: Yes
• L3 Management: Yes
• Multi-site Management: Yes
• Management VLAN: Yes
• Zero-Touch Provisioning: Yes (requires Omada Cloud-Based Controller)
• Certification: CE, FCC, RoHS
• Package Content: Access Point EAP225-Outdoor, Passive PoE Adapter, Power Cord, Mounting Kits, Installation Guide, Waterproof Rubber Insert, Waterproof Antenna
• System Requirements: Microsoft Windows XP, Vista, 7, 8, 10, 11; Linux
• Environment: Operating Temperature: -30 to 70 °C (-22 to 158 °F); Storage Temperature: -40 to 70 °C (-40 to 158 °F); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link official page
