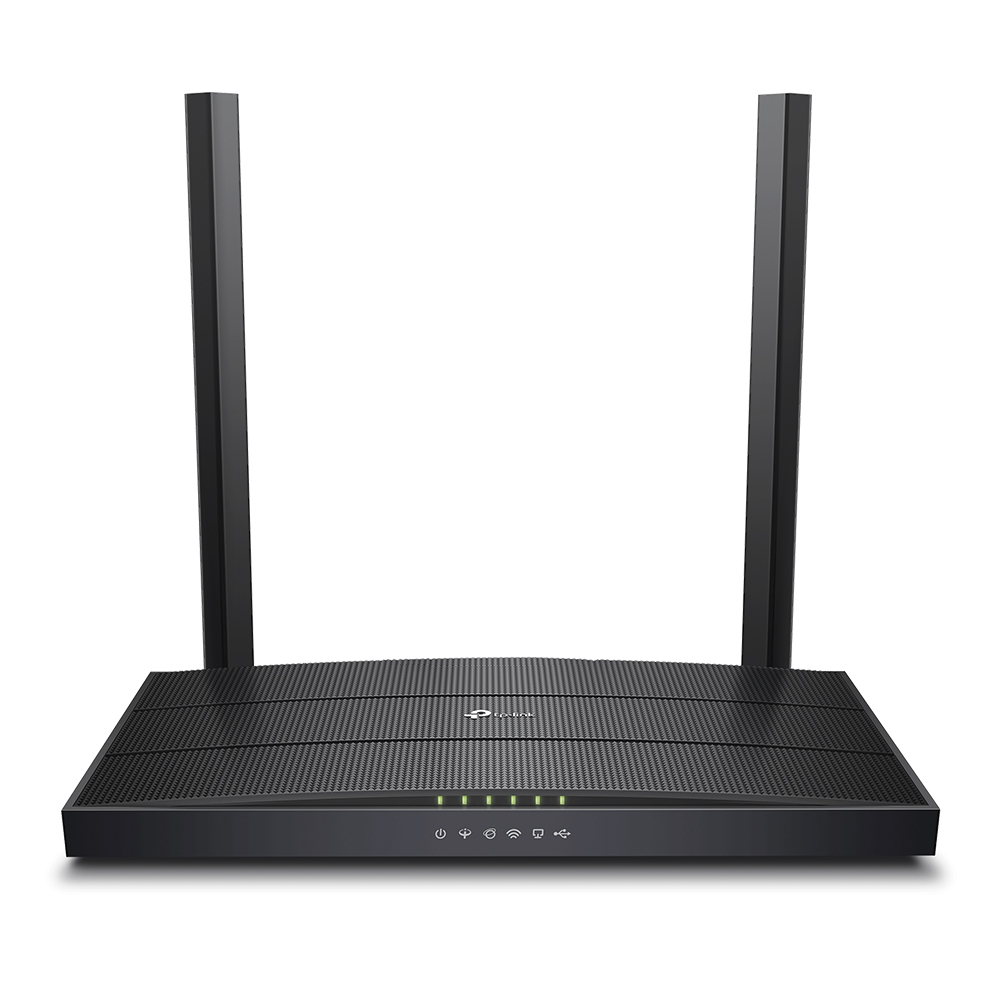

TP-Link Archer VR400 AC1200 Wireless MU-MIMO VDSL/ADSL Modem Router with Dual-Band WiFi

Overview

The TP-Link Archer VR400 is a versatile AC1200 wireless MU-MIMO VDSL/ADSL modem router designed to deliver broadband speeds up to 100Mbps and combined dual-band WiFi speeds of up to 1.2Gbps. It supports both 2.4 GHz and 5 GHz frequency bands, allowing multiple devices to connect simultaneously with minimal interference and peak performance.

Equipped with multiple Gigabit Ethernet ports and a USB 2.0 port, the Archer VR400 offers flexible connectivity options. Its support for various DSL standards including VDSL2, ADSL, ADSL2, and ADSL2+ ensures compatibility with a wide range of internet service providers. The router also features robust security protocols and advanced management features to keep your network safe and easy to control.

Technical Specifications

• Model: Archer VR400
• Interface: 3× 10/100/1000Mbps RJ45 LAN Ports, 1× 10/100/1000Mbps RJ45 WAN/LAN Port, 1× RJ11 Port, 1× USB 2.0 Port
• Buttons: WPS Button, Wi-Fi On/Off Button, Reset Button
• Power Supply: 12V/1A
• Wireless Standards: IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
• Frequency: Dual-band 2.4 GHz and 5 GHz
• Signal Rate: 867Mbps at 5 GHz, 300Mbps at 2.4 GHz
• Antenna: 2× fixed Omni-Directional antennas
• VDSL2 Standards: ITU G.993.2 up to 17a profile (POTS), ITU-T G.993.5 (G.vector), ITU-T G.998.4 (G.INP)
• ADSL Standards: Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1 (G.DMT), ITU-T G.992.2 (G.Lite), ITU-T G.994.1 (G.hs)
• ADSL2 Standards: ITU-T G.992.3 (G.DMT.bis)
• ADSL2+ Standards: ITU-T G.992.5
• Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
• Transmission Power: <20dBm (2.4 GHz), <23dBm (5 GHz)
• Operating Modes: VDSL/ADSL Modem Router, Wireless Router, 3G/4G Router
• Management Features: Web-Based Configuration (HTTP/HTTPS), Remote management, SSL for TR-069, SNMP v1/2c, Firmware Upgrade, Diagnostic Tools, Free Online Firmware Update
• Security Features: NAT Firewall, SPI Firewall, Access Control, Service Filtering, DoS Protection, IP and MAC Address Binding
• VPN Support: OpenVPN, PPTP VPN, IPSec VPN
• Protocols Supported: IPv4 and IPv6
• Dimensions (W×D×H): 8.5 × 4.9 × 1.2 in (215.6 × 124.6 × 31.6 mm)
• Certification: CE, RCM, RoHS
• Package Contents: AC1200 Wireless MU-MIMO VDSL/ADSL Modem Router Archer VR400, External Splitter, RJ11 DSL Cable, RJ45 Ethernet Cable, Power Adapter, Quick Installation Guide
• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™, Windows 7, 8, 8.1, 10, macOS, NetWare, UNIX or Linux; Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-enabled browsers; Subscription with an internet service provider
• Environment: Operating Temperature: 0°C~40°C (32°F~104°F); Operating Humidity: 10%~90% non-condensing

Source: TP-Link official page
