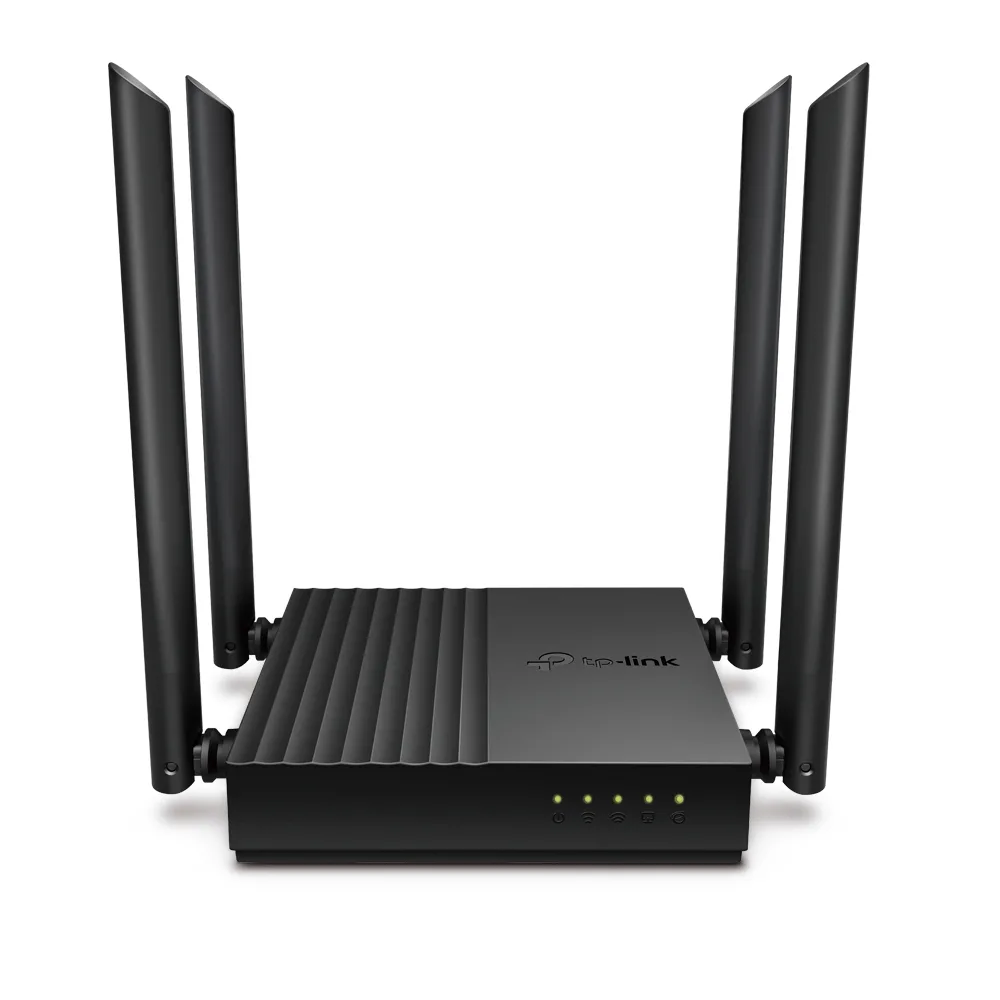

TP-Link Archer C64 AC1200 Wireless MU-MIMO WiFi Router with 4 Antennas, Gigabit Ports

Overview

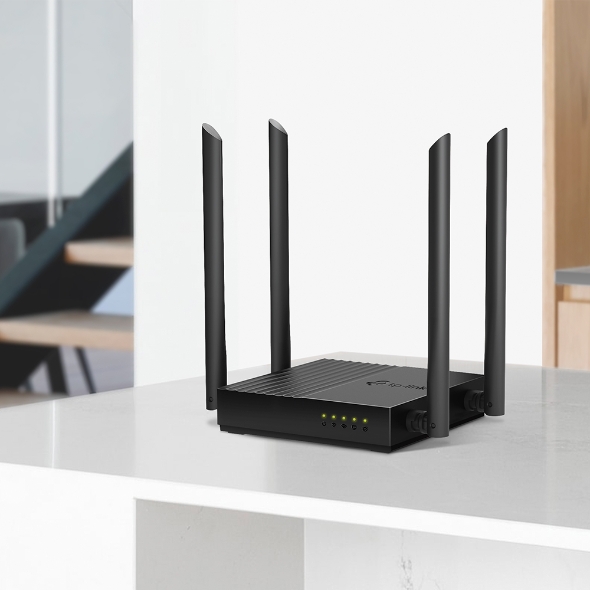

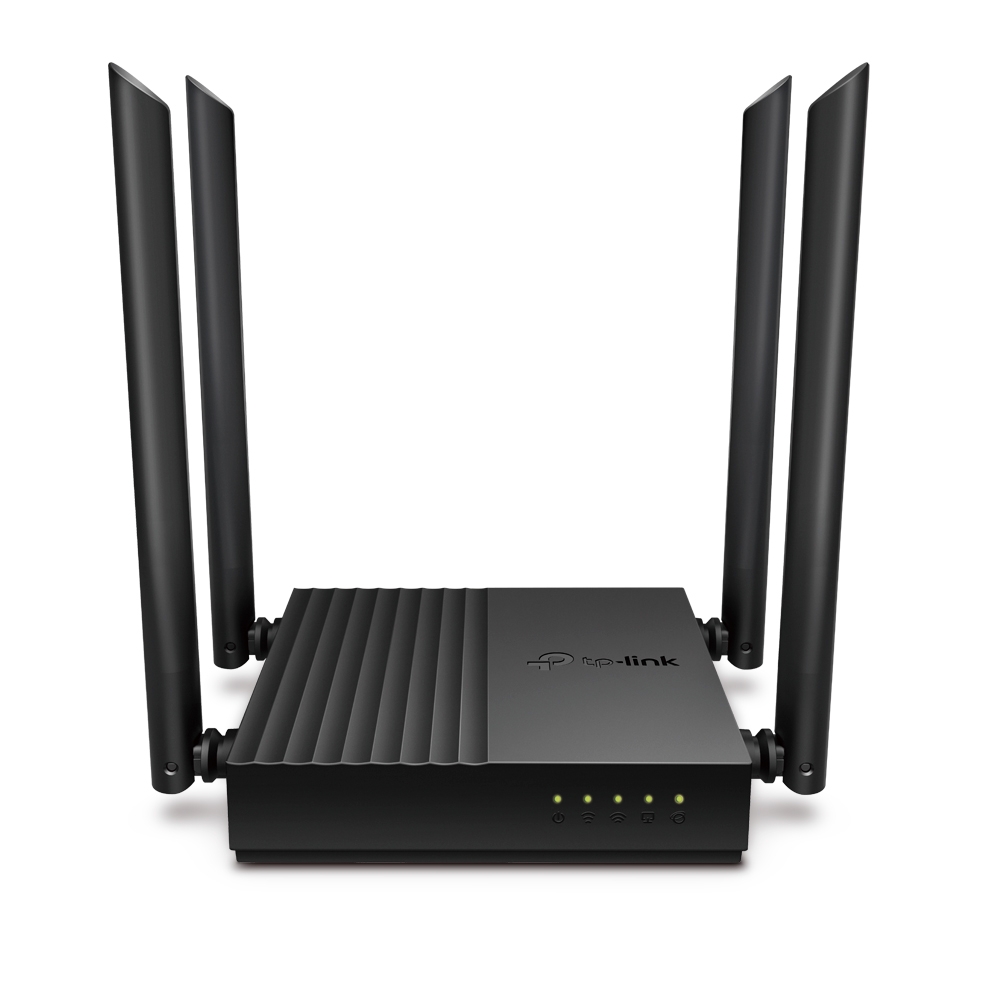

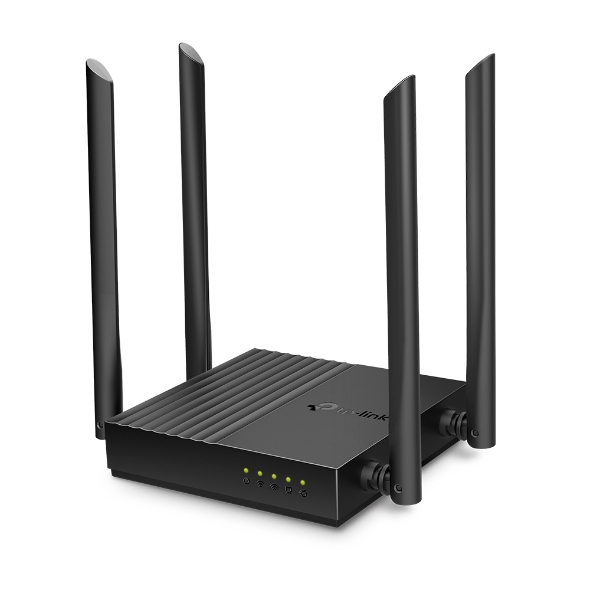

The TP-Link Archer C64 AC1200 Wireless MU-MIMO WiFi Router is designed to deliver fast and reliable wireless connectivity throughout your home. Equipped with four external high-performance antennas and gigabit Ethernet ports, it ensures smooth video streaming, online gaming, and stable internet access in every corner of a typical three-bedroom house. The router supports dual-band WiFi with speeds up to 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band, providing optimal performance for multiple devices simultaneously.

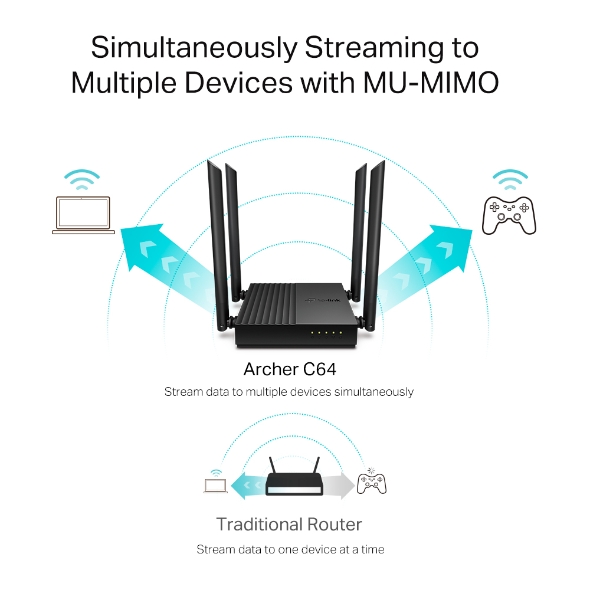

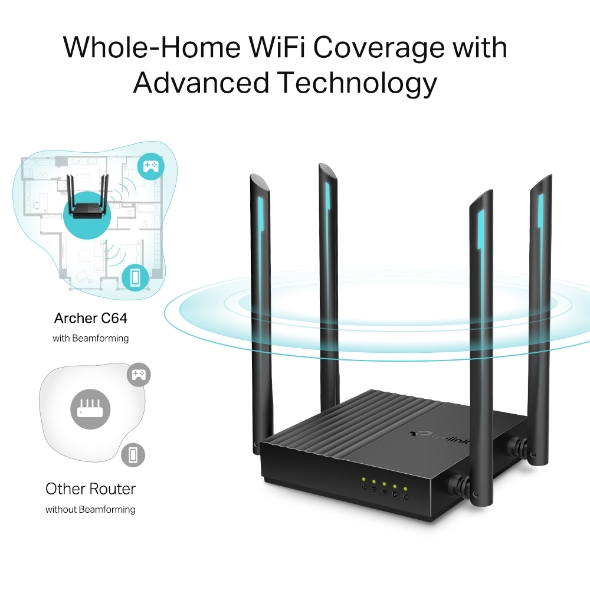

Featuring advanced technologies such as MU-MIMO for simultaneous communication with multiple clients, beamforming to focus signal strength, and Airtime Fairness to improve network efficiency, the Archer C64 offers a robust and efficient wireless experience. It also supports EasyMesh, allowing you to create a seamless mesh network with compatible devices to eliminate WiFi dead zones and expand coverage effortlessly.

Technical Specifications

• Standards and Protocols: Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz
• WiFi Speeds: AC1200 – 5 GHz: 867 Mbps (802.11ac), 2.4 GHz: 300 Mbps (802.11n)
• WiFi Range: Suitable for 3-bedroom houses with 4 fixed high-performance antennas and beamforming technology
• WiFi Capacity: Medium dual-band with MU-MIMO and Airtime Fairness
• Working Modes: Router Mode, Access Point Mode
• Network Security: SPI Firewall, Access Control, IP and MAC Binding
• Guest Network: Separate 2.4 GHz and 5 GHz guest networks
• WiFi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)

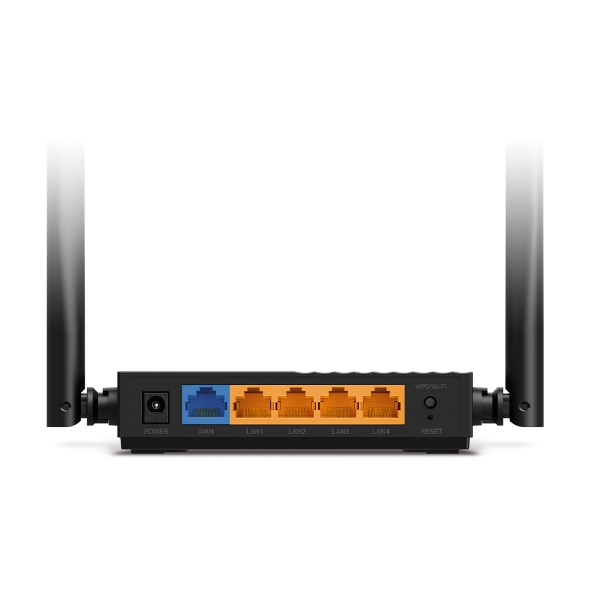

• Ethernet Ports: 1 Gigabit WAN port, 4 Gigabit LAN ports
• Buttons: WPS/Wi-Fi Button, Reset Button
• Power: 12V, 1A
• Protocols: IPv4, IPv6
• EasyMesh: Supports mesh networking with EasyMesh-compatible devices for seamless roaming and expanded coverage
• Parental Controls: URL Filtering, Time Controls
• WAN Types: Dynamic IP, Static IP, PPPoE (Dual Access), PPTP (Dual Access), L2TP (Dual Access)
• Quality of Service: QoS by Device
• Cloud Service: OTA Firmware Upgrade, TP-Link ID, DDNS
• NAT Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ
• IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
• DHCP: Server, Client List, Address Reservation
• DDNS: TP-Link, NO-IP, DynDNS
• Management Features: Tether App, Webpage Check Web Emulator
• Network Services Enabled by Default: Web Server (HTTP/HTTPS), DNS, DHCP Server, App Management, Alexa Service
• System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser; Cable or DSL Modem (if needed); Subscription with an internet service provider
• Certifications: CE, RoHS
• Environment: Operating Temperature: 0°C to 40°C (32°F to 104°F); Operating Humidity: 10% to 90% non-condensing; Storage Humidity: 5% to 90% non-condensing
• WiFi Transmission Power: CE: <20dBm (2.4 GHz), <23dBm (5.15 GHz–5.25 GHz); FCC: <30dBm (2.4 GHz & 5 GHz)
• WiFi Reception Sensitivity: 5 GHz: 11a 6Mbps: -95dBm, 11a 54Mbps: -77dBm, 11ac VHT20 MCS8: -71dBm, 11ac VHT40 MCS9: -67dBm, 11ac VHT80 MCS9: -63dBm; 2.4 GHz: 11g 6Mbps: -96dBm, 11g 54Mbps: -78dBm, 11n HT20 MCS7: -77dBm, 11n HT40 MCS7: -74dBm, 11ac VHT20 MCS8: -73dBm, 11ac VHT40 MCS9: -68dBm
• Dimensions (W×D×H): 4.7 × 4.7 × 1.1 in (120 × 120 × 27.9 mm)
• Package Content: Wireless Router Archer C64, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide

Source: TP-Link official page
