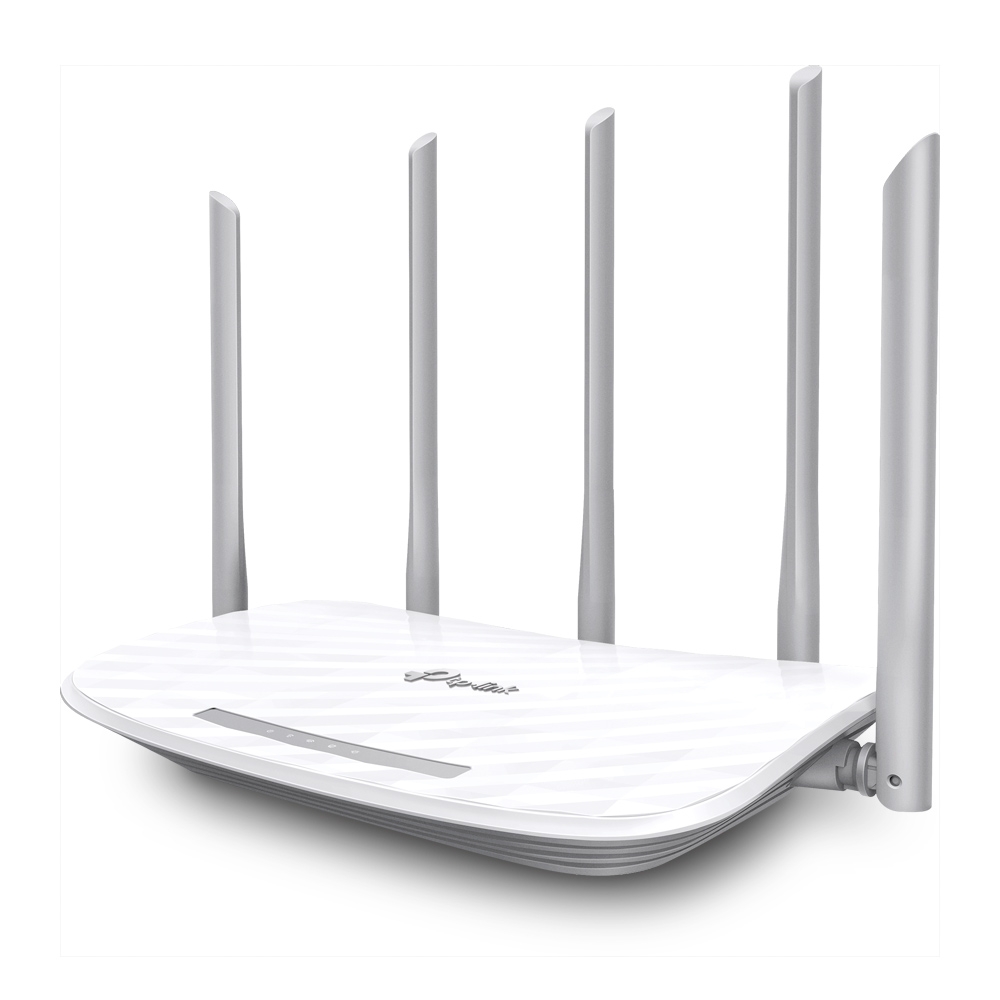

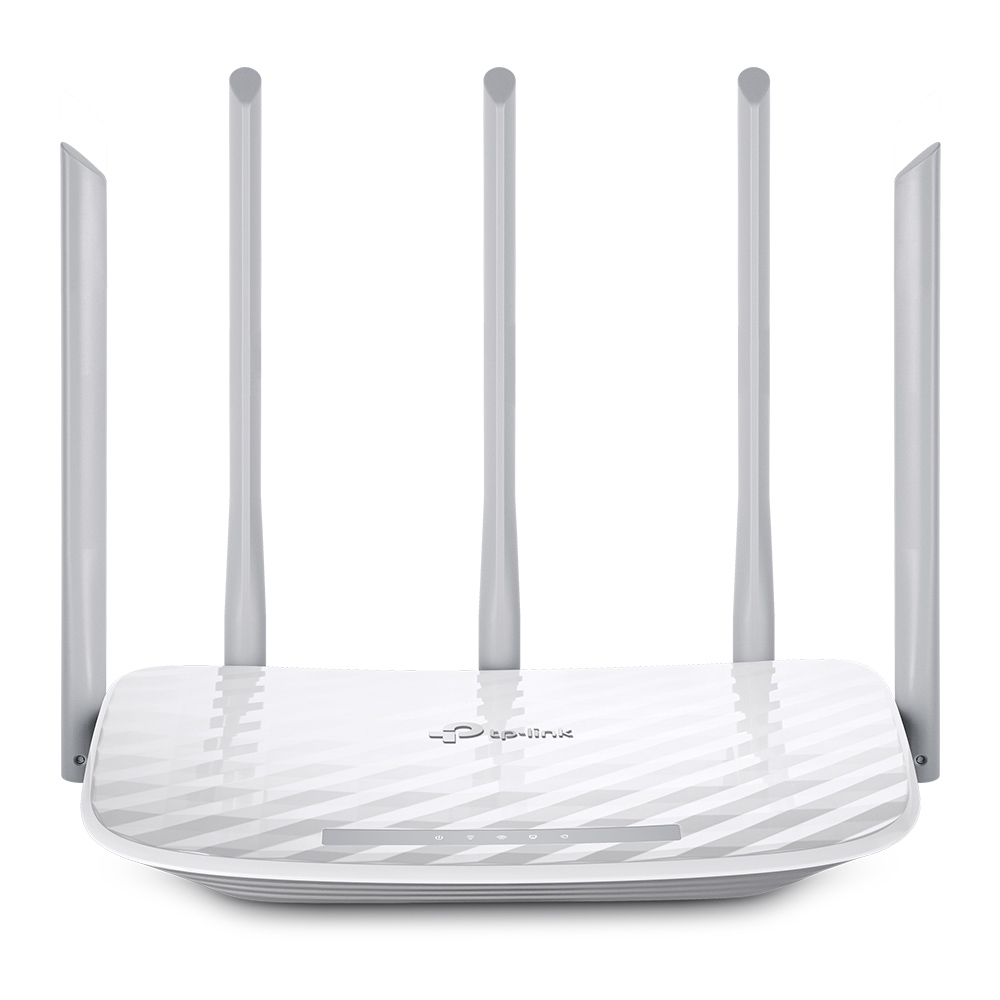

TP-Link Archer C60 AC1350 Dual Band Wi-Fi Router with 5 Fixed Antennas

Overview

The TP-Link Archer C60 AC1350 router offers advanced Wi-Fi 5 (802.11ac) technology to deliver fast and reliable wireless connectivity. It supports dual-band operation, providing speeds up to 867 Mbps on the 5 GHz band and 450 Mbps on the 2.4 GHz band, making it ideal for everyday internet activities and smooth video streaming.

Featuring five fixed antennas combined with beamforming technology, the Archer C60 enhances Wi-Fi coverage and signal strength, suitable for medium-sized homes such as three-bedroom houses. It supports multiple working modes including Router and Access Point modes, and incorporates comprehensive network security measures like SPI Firewall, Access Control, and IP & MAC Binding to protect your network.

Technical Specifications

• Standards and Protocols: Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz
• WiFi Speeds: AC1350 – 5 GHz: 867 Mbps (802.11ac), 2.4 GHz: 450 Mbps (802.11n)
• WiFi Range: Suitable for 3 Bedroom Houses; 5× Fixed Antennas; Beamforming technology
• WiFi Capacity: Medium Dual-Band; MU-MIMO support
• Working Modes: Router Mode, Access Point Mode
• Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
• Guest Network: 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network
• WiFi Encryption: WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x)

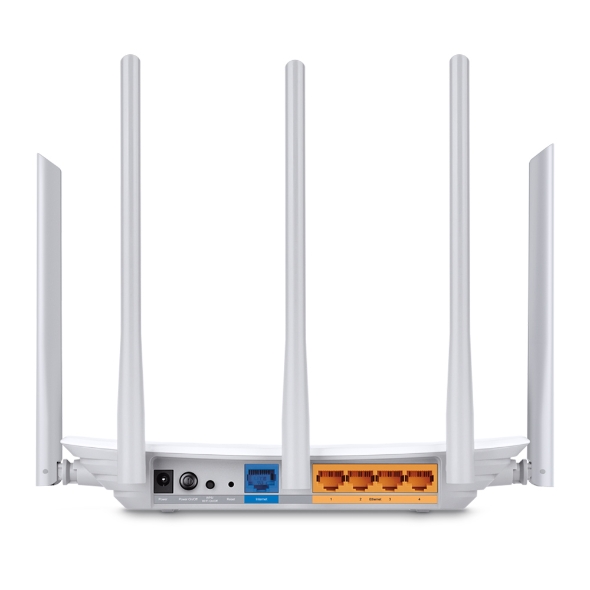

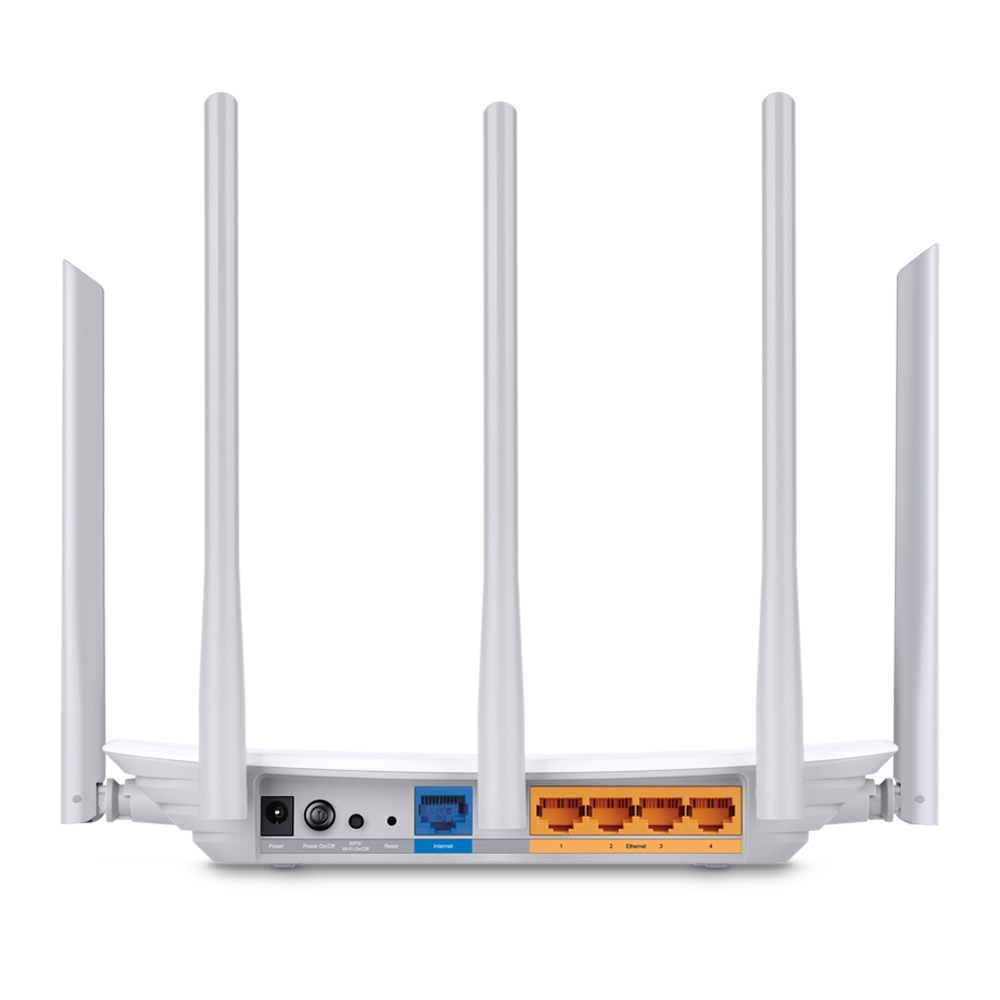

• Ethernet Ports: 1× 10/100 Mbps WAN Port, 4× 10/100 Mbps LAN Ports
• Buttons: Wi-Fi On/Off, Power On/Off, WPS/Reset
• Power: 12 V ⎓ 1 A
• Protocols: IPv4, IPv6
• Parental Controls: URL Filtering, Time Controls
• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Quality of Service: QoS by Device
• Cloud Service: OTA Firmware Upgrade, TP-Link ID, DDNS
• NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP
• IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
• DHCP: Address Reservation, DHCP Client List, Server
• DDNS: TP-Link, NO-IP, DynDNS
• Management Features: Tether App, Webpage Check, Web Emulator
• System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser; Cable or DSL Modem (if needed); Subscription with an internet service provider
• Certifications: FCC, CE, RoHS
• Environment: Operating Temperature: 0°C~40°C (32°F~104°F); Storage Temperature: -40°C~70°C (-40°F~158°F); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
• WiFi Transmission Power: CE EIRP: <20dBm (2.4GHz), <23dBm (5GHz); FCC: <30dBm (2.4GHz & 5GHz)
• WiFi Reception Sensitivity: 5GHz: 11a 6Mbps: -93dBm; 11a 54Mbps: -78dBm; 11ac HT20 mcs8: -69dBm; 11ac HT40 mcs9: -65dBm; 11ac HT80 mcs9: -62dBm; 2.4GHz: 11g 54Mbps: -78dBm; 11n HT20 mcs7: -74dBm; 11n HT40 mcs7: -71dBm
• Dimensions (W×D×H): 9.1 × 5.7 × 1.5 in (230 × 144 × 37 mm)
• Package Content: Wi-Fi Router Archer C60, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide

Source: TP-Link official page
