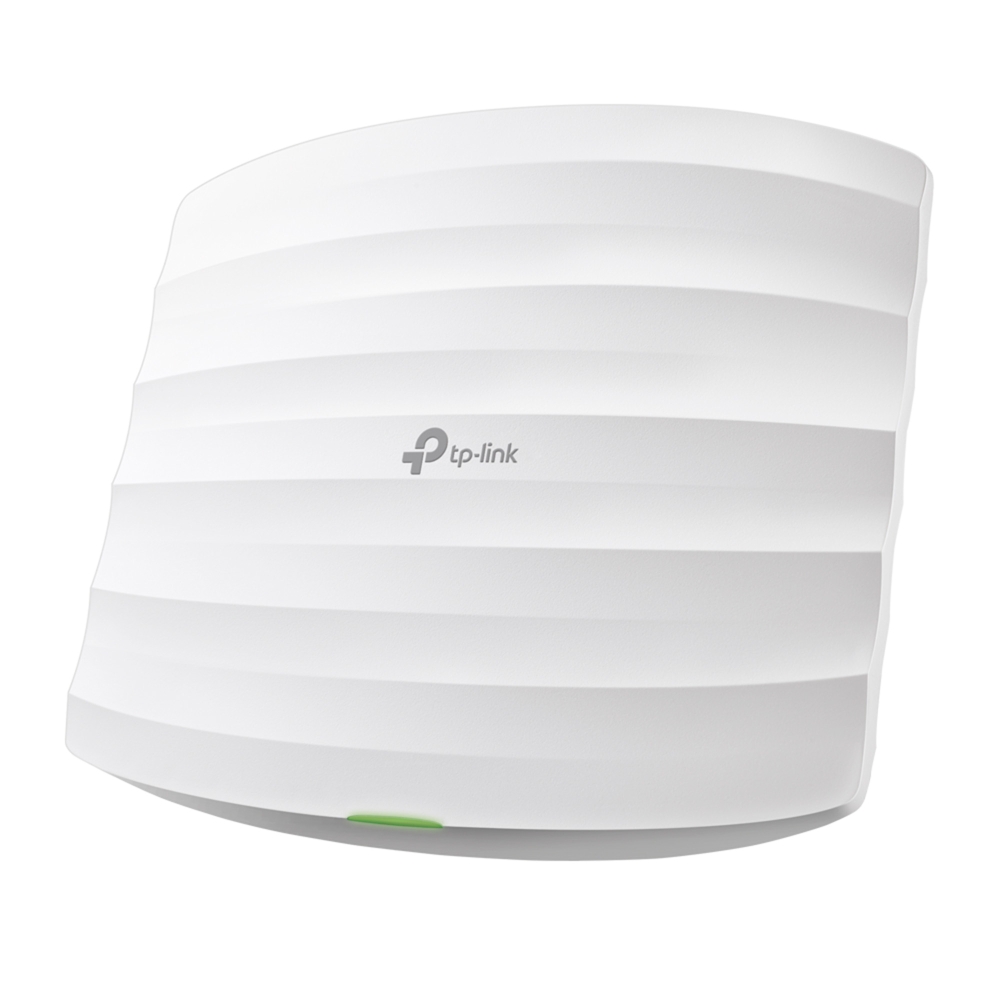

TP-Link EAP225 AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point with Dual-Band 2.4GHz/5GHz, PoE

Overview

The TP-Link EAP225 is a high-performance AC1350 wireless access point designed for ceiling or wall mounting. Equipped with the latest 802.11ac Wave 2 MU-MIMO technology, it delivers fast dual-band Wi-Fi speeds of up to 1350 Mbps, allowing multiple devices to connect simultaneously without compromising performance. This access point is ideal for business environments requiring reliable and scalable wireless coverage.

Featuring a Gigabit Ethernet port with support for both 802.3af/at PoE and Passive PoE, the EAP225 simplifies installation by enabling power and data transmission over a single cable. Its internal antennas provide broad coverage, and the device supports advanced wireless functions such as seamless roaming, band steering, airtime fairness, and beamforming to optimize network efficiency and user experience.

Technical Specifications

• Model: EAP225
• Wireless Standards: IEEE 802.11ac/n/g/b/a
• Frequency Bands: 2.4 GHz and 5 GHz
• Maximum Wireless Speed: 5 GHz up to 867 Mbps; 2.4 GHz up to 450 Mbps
• Interface: 1 x Gigabit Ethernet (RJ-45) port; supports IEEE 802.3af/at PoE and Passive PoE
• Power Supply: 802.3af/at PoE and 48V Passive PoE (PoE adapter included)
• Max Power Consumption: EU: 9.7W; US: 12.1W
• Antenna: 3 internal omni-directional antennas; 4 dBi for 2.4 GHz, 5 dBi for 5 GHz
• Mounting: Ceiling or wall mount (kits included)
• Coverage Area: Approximately 115 m² (1250 ft²)
• Concurrent Clients: Supports 220+ clients
• Wireless Features: Multiple SSIDs (up to 15), automatic channel assignment, transmit power control, QoS (WMM), seamless roaming (802.11k/v/r), Omada Mesh, band steering, load balancing, MU-MIMO, airtime fairness, beamforming, rate limiting, reboot and wireless scheduling, wireless statistics
• Wireless Security: Captive portal authentication, access control, MAC address filtering, wireless isolation, SSID to VLAN mapping, rogue AP detection, 802.1X support
• Transmission Power: CE: ≤20 dBm (2.4 GHz, EIRP), ≤23 dBm (5 GHz, EIRP); FCC: ≤24 dBm (2.4 GHz), ≤22 dBm (5 GHz)
• Management: Omada Cloud-Based Controller, hardware and software controllers, web-based HTTP/HTTPS management, SNMP v1/v2c, SSH, multi-site management, VLAN support, zero-touch provisioning (requires Omada Cloud-Based Controller; supported on EAP225 V3.0, V4.0 and above, not supported on V3.20)
• LED Control: On/off control available
• Security Lock: Physical security lock included
• System Logging: Local and remote syslog support
• Certification: CE, FCC, RoHS
• Package Contents: EAP225 access point, passive PoE adapter, power cord, mounting kits, installation guide
• System Requirements: Microsoft Windows XP, Vista, 7, 8, 10, 11; Linux
• Operating Environment: Temperature 0–40 °C (32–104 °F); storage temperature -40–70 °C (-40–158 °F); operating humidity 10–90% RH non-condensing; storage humidity 5–90% RH non-condensing

Source: TP-Link official page

Datasheet & Support Downloads
