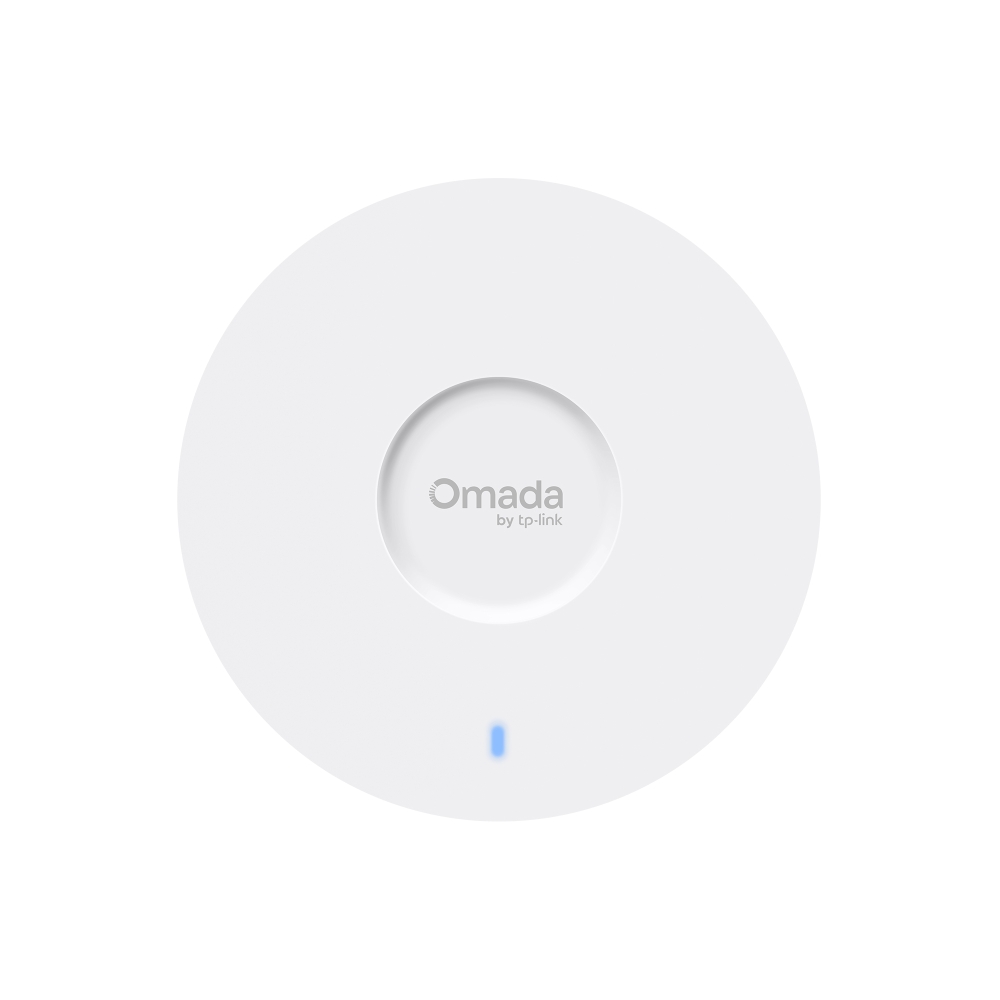

TP-Link EAP653 UR AX3000 Ceiling Mount WiFi 6 Access Point with 1GB PoE+ Port

Overview

The TP-Link EAP653 UR is an AX3000 WiFi 6 Ultra-Range Access Point designed for ceiling mounting. Its slim profile makes it ideal for high-performance business environments such as offices, campuses, retail spaces, hotels, and meeting rooms. This model supports dual-band wireless connectivity with high data rates and extensive coverage, ensuring reliable and fast wireless access for numerous concurrent clients.

Technical Specifications

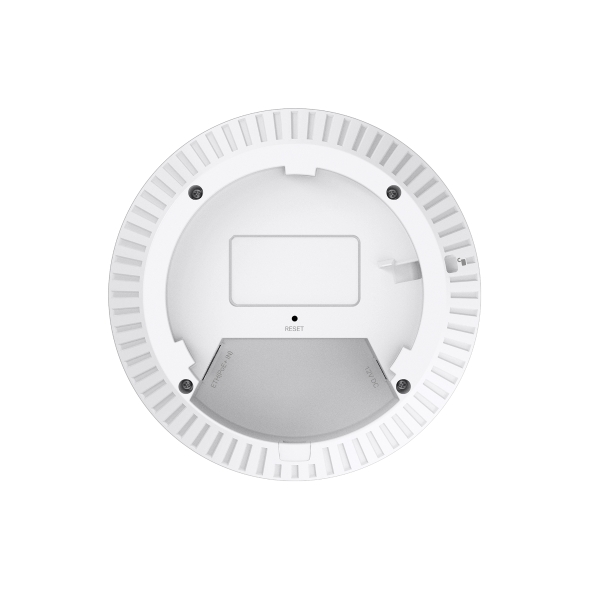

• Interface: 1× Gigabit PoE+ Port
• Button: Reset
• Power Supply: 802.3at PoE, 12V DC / 1.5 A, 48V Passive PoE (DC power adapter not included)
• Max. Power Consumption: EU: 14.2 W, US: 15.5 W
• Dimensions (W x D x H): 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
• Antenna: 2.4 GHz: 2× 5 dBi, 5 GHz: 3× 5 dBi

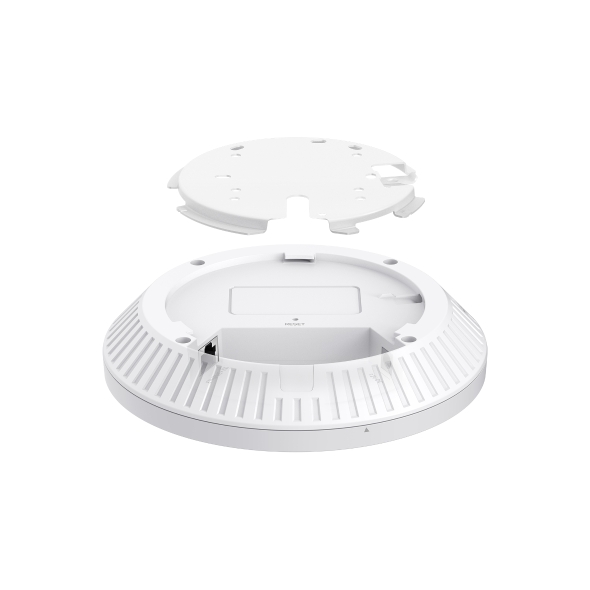

• Mounting: Ceiling, Wall, Junction Box, T-Bar Mounting (kits included)
• Coverage: 2000 ft² (185 m²) *
• Concurrent Clients: 250+ **
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 5 GHz: Up to 2402 Mbps, 2.4 GHz: Up to 574 Mbps
• Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Transmission Power: CE: 7-20 dBm (2.4 GHz, EIRP), 6-23 dBm (5 GHz, U-NII-1 & U-NII-2A, EIRP), 6-29 dBm (5 GHz, U-NII-2C, EIRP); FCC: 4-26 dBm (2.4 GHz), 4-27 dBm (5 GHz, U-NII-1, U-NII-2A, U-NII-2C, U-NII-3)
• Omada App: Yes
• Centralized Management: Omada Central (Cloud-Based), Omada Hardware Controller, Omada Software Controller
• Cloud Access: Yes (requires Omada controller)
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• System Logging Local/Remote Syslog: Yes
• SSH: Yes
• Web-based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-site Management: Yes
• Management VLAN: Yes
• Zero-Touch Provisioning: Yes (requires Omada controller)
• Certification: CE, FCC, RoHS, ISED
• Package Content: EAP653 UR, Mounting Kits, Installation Guide
• Environment: Operating Temperature: 0–40 °C (32–104 °F), Storage Temperature: -40–70 °C (-40–158 °F), Operating Humidity: 10–90% RH non-condensing, Storage Humidity: 5–90% RH non-condensing

Source: TP-Link official page
