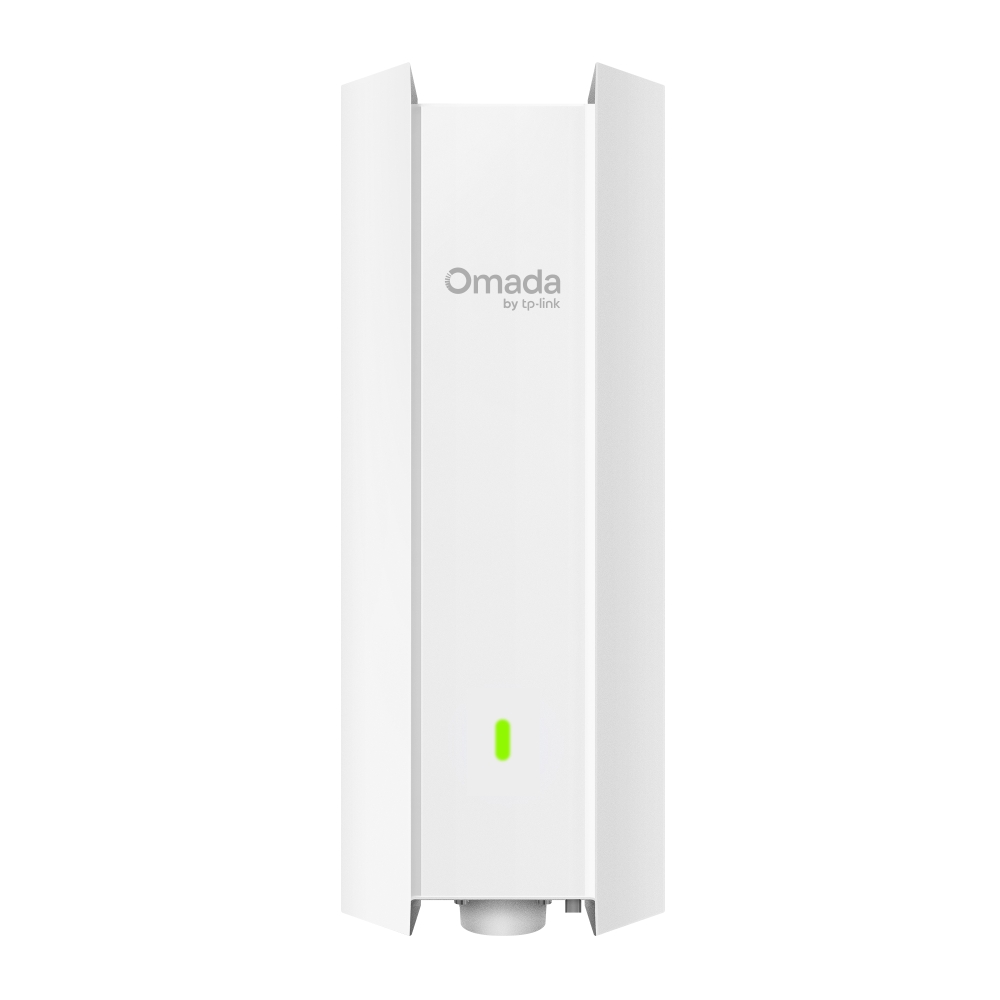

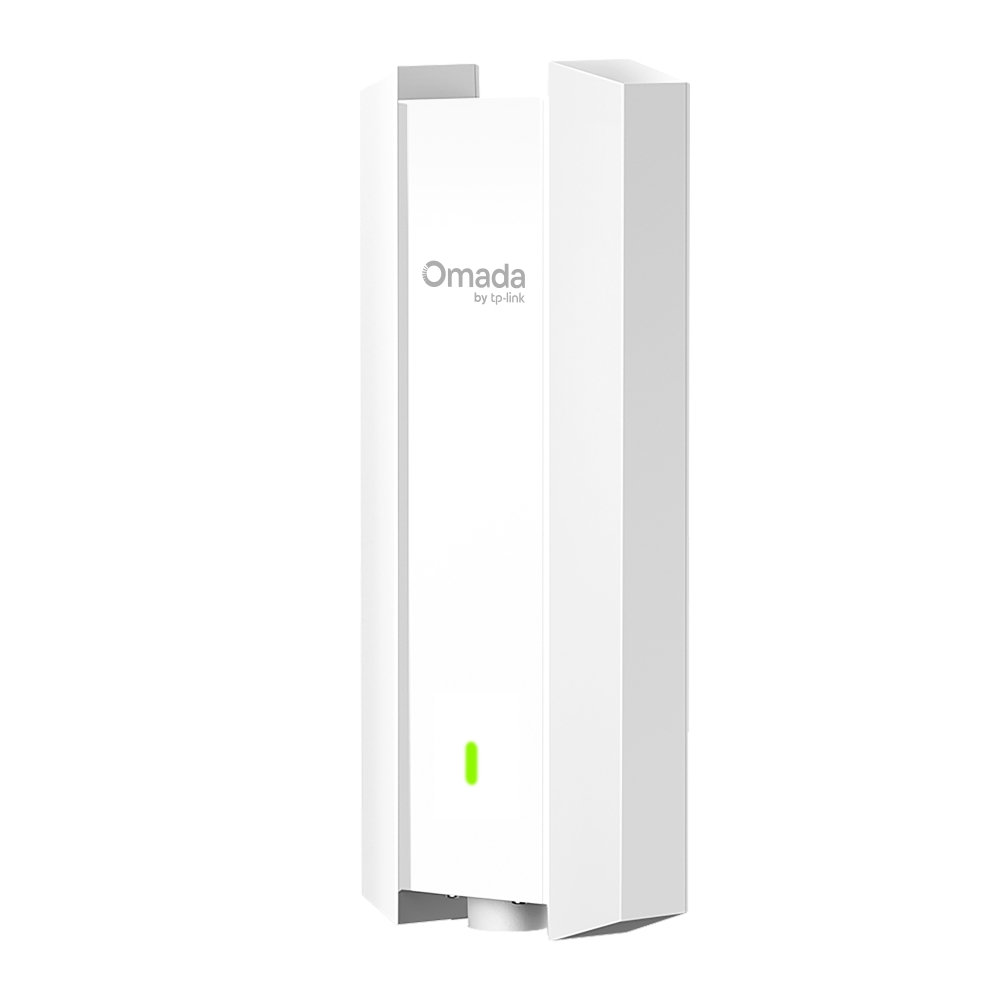

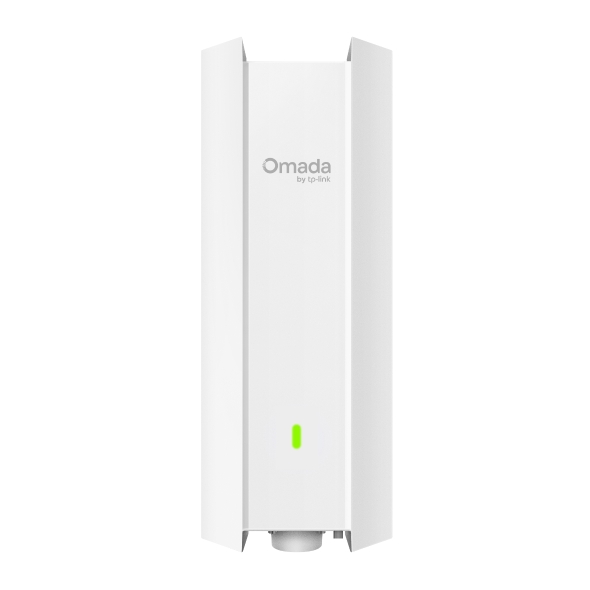

TP-Link EAP650-Outdoor AX3000 WiFi 6 Access Point with Gigabit Ethernet

Overview

The TP-Link EAP650-Outdoor is a high-performance AX3000 WiFi 6 access point designed for both indoor and outdoor environments. It delivers wireless speeds up to 3 Gbps, making it ideal for high-density and demanding network applications. Equipped with a weatherproof IP68-rated enclosure, it withstands harsh outdoor conditions while providing reliable connectivity.

This access point supports advanced wireless technologies such as OFDMA, MU-MIMO, and seamless roaming to enhance network efficiency and user experience. It also features centralized management through the Omada Cloud-Based Controller, enabling easy deployment and monitoring.

Technical Specifications

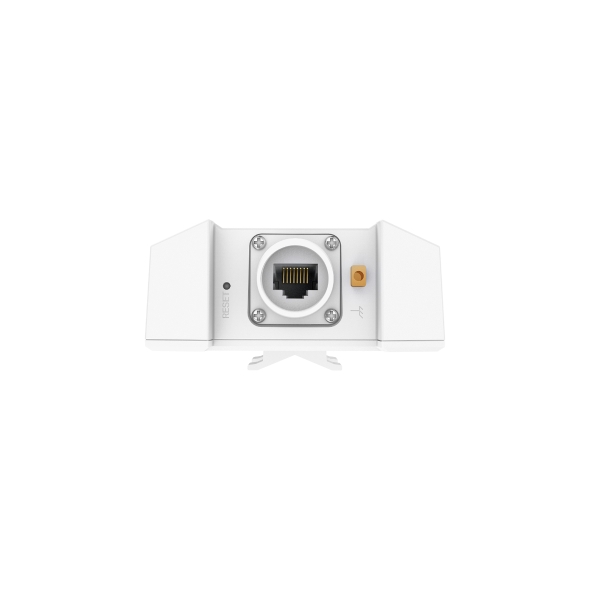

• Interface: 1× Gigabit Ethernet (RJ-45) port (supports 802.3at PoE and Passive PoE)
• Button: Reset
• Power Supply: 802.3at PoE and 48V Passive PoE (PoE adapter included for dry indoor use only)
• Max. Power Consumption: EU: 12.5W; US: 14.7W (both for 802.3at PoE or Passive PoE)
• Dimensions (W×D×H): 4.2 × 2.2 × 11.1 in (106.5 × 57 × 281 mm) without antenna and mounting kit
• Antenna: 2.4 GHz: 2× 4 dBi; 5 GHz: 2× 5 dBi
• Weatherproof Enclosure: IP68

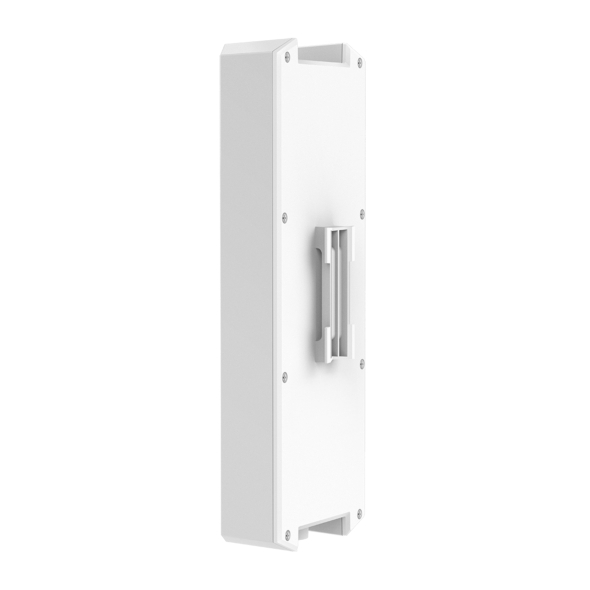

• Mounting: Pole and wall mounting kits included
• Concurrent Clients: 250+
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency Bands: 2.4 GHz and 5 GHz
• Signal Rates: 802.11ax: up to 2402 Mbps; 802.11ac: up to 1083.3 Mbps; 802.11n: up to 300 Mbps; 802.11g/a: up to 54 Mbps; 802.11b: up to 11 Mbps
• Wireless Features: 1024-QAM, OFDMA, MU-MIMO, Multiple SSIDs (up to 16), Seamless Roaming (802.11k/v/r), Band Steering, Load Balance, Airtime Fairness, Beamforming, QoS (WMM), and more
• Wireless Security: Captive Portal Authentication, Access Control, MAC Address Filtering, Wireless Isolation, SSID to VLAN Mapping, Rogue AP Detection, 802.1X, WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Transmission Power: CE: <20 dBm (2.4 GHz), <30 dBm (5 GHz); FCC: <25 dBm (2.4 GHz and 5 GHz)
• Management: Omada Cloud-Based Controller, Hardware Controller, Software Controller; supports centralized, multi-site, VLAN, L3 management, zero-touch provisioning
• Additional Features: Omada App support, Email Alerts, SNMP v1/v2c, SSH, Web-based management, System logging (local/remote)
• Certification: CE, FCC, RoHS
• Package Contents: Access Point EAP650-Outdoor, Passive PoE Adapter, Power Cord, Mounting Kits, Installation Guide, Waterproof Kit
• System Requirements: Microsoft Windows XP/Vista/7/8/10/11, Linux
• Operating Environment: Temperature: -30 to 70 °C (-22 to 158 °F); Storage Temperature: -40 to 70 °C (-40 to 158 °F); Humidity: 10–90% RH non-condensing (operating), 5–90% RH non-condensing (storage)

Source: TP-Link official page
