EAP773 BE11000 Tri-Band Wi-Fi 7 Access Point with 1x 10G Port

Overview

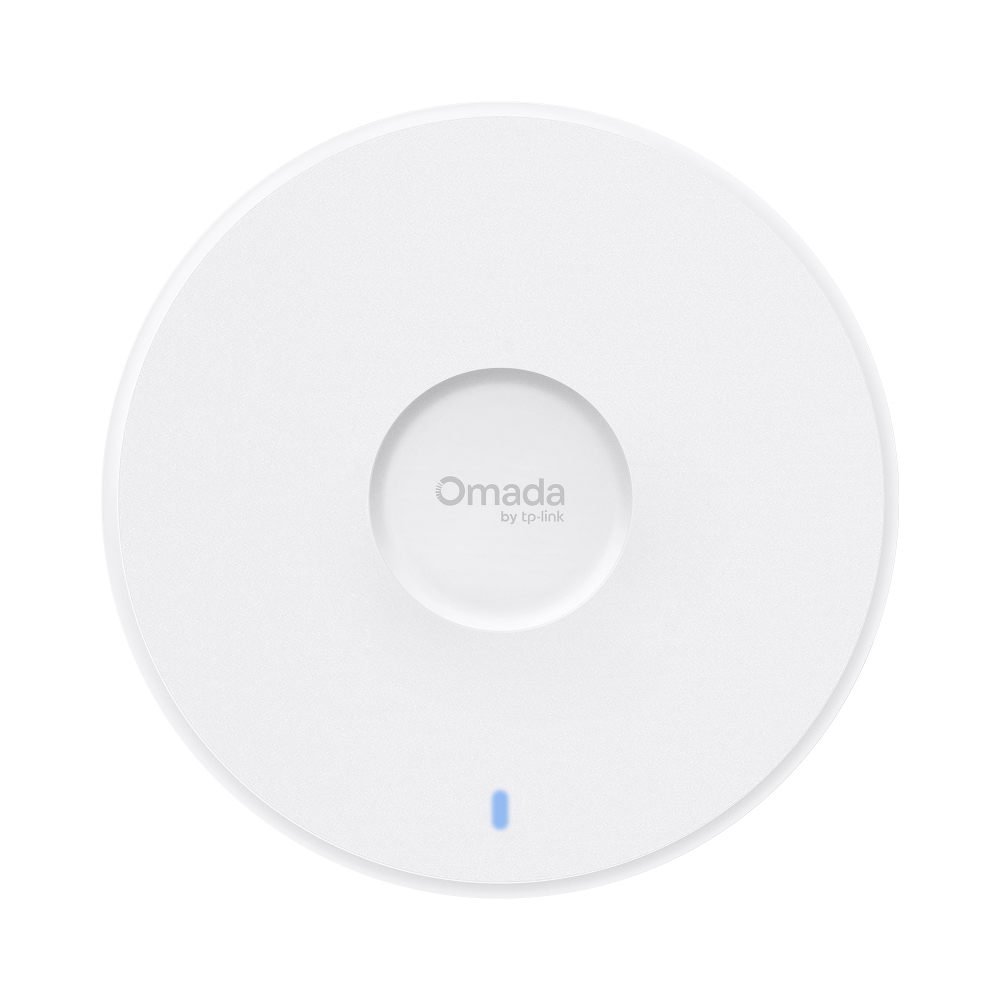

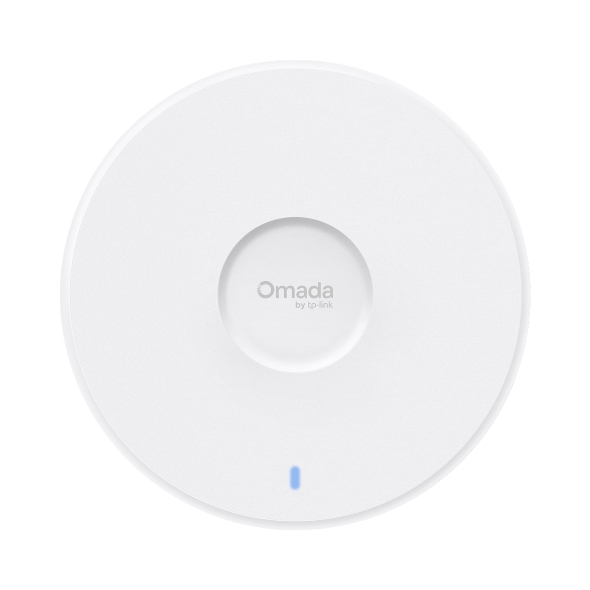

The EAP773 is a high-performance ceiling mount access point based on the BE11000 tri-band Wi-Fi 7 platform. It delivers ultra-fast wireless connectivity across 2.4 GHz, 5 GHz, and 6 GHz bands, supporting a combined signal rate of up to 688 Mbps on 2.4 GHz, 4324 Mbps on 5 GHz, and 5765 Mbps on 6 GHz. Equipped with a 1× 10G Ethernet port, it ensures robust wired backhaul for demanding network environments. The device supports advanced wireless features including MLO, 4K-QAM, seamless roaming, MU-MIMO, HE320, mesh networking, and comprehensive security protocols to provide reliable and secure wireless access for up to 380 concurrent clients.

Technical Specifications

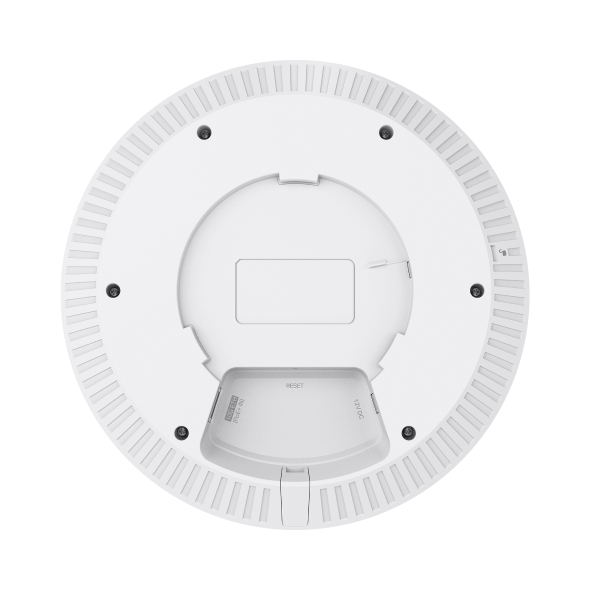

• Interface: 1× 10G Ethernet Port
• Button: Reset
• Power Supply: 802.3at PoE or 12V/2.5A DC (DC power adapter not included; DC interface: 12V, 2.1 mm / 5.5 mm center-positive circular plug with 9 mm length)
• Max. Power Consumption: 25.4 W (PoE), 22.4 W (DC)
• Weight: 0.73 kg (1.61 lb)
• Dimensions (W x D x H): 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
• Antenna: 2.4 GHz: 2× 4 dBi; 5 GHz: 2× 5 dBi; 6 GHz: 2× 5 dBi
• Bluetooth: 1× 5 dBi onboard omnidirectional antenna

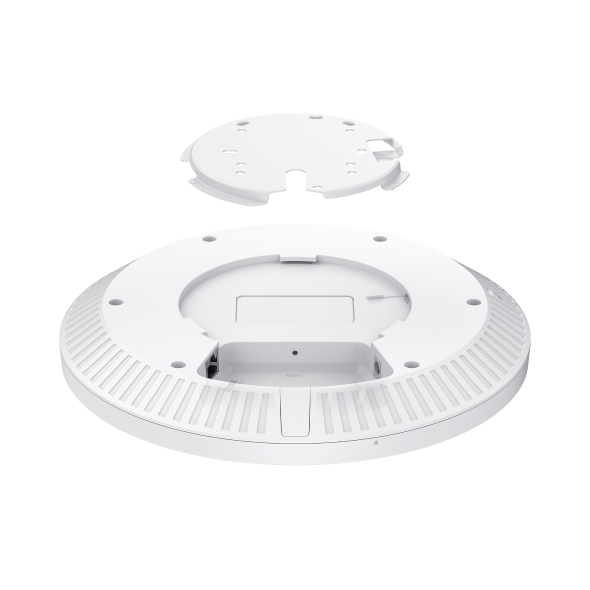

• Mounting: Ceiling/Wall/Junction Box Mounting (kits included), T-Bar Mounting (kits included)
• Coverage: 140 m² (1500 ft²)*
• Concurrent Clients: 380+**
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
• Frequency Bands: 2.4 GHz, 5 GHz, 6 GHz
• Signal Rate: 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) + 5765 Mbps (6 GHz)
• Wireless Functions: MLO, 4K-QAM, Seamless Roaming (802.11k/v/r), MU-MIMO (2×2 DL/UL), HE320, Mesh, BSS Coloring, OFDMA, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDs (24 total, 8 per band), Wireless Schedule, Reboot Schedule, QoS (WMM), Rate Limit, Static/Dynamic IP, RADIUS Accounting, MAC Authentication
• Wireless Security: Captive Portal Authentication, Access Control, MAC Filter (max 4,000), Wireless Isolation Between Clients, VLAN, Rogue AP Detection, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Transmission Power: 4-25 dBm (2.4 GHz), 4-24 dBm (5 GHz U-NII-2A & U-NII-2C), 4-25 dBm (5 GHz U-NII-1 & U-NII-3), 4-23 dBm (6 GHz)
• Omada App Support: Yes
• Centralized Management: Omada Central (Cloud-Based), Omada Hardware Controller, Omada Software Controller
• Cloud Access: Yes (requires Omada controller)
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• System Logging: Local and Remote Syslog
• Web-based Management: Yes
• Certification: FCC, CE, NCC, VCCI, JRF
• Package Contents: EAP773, Installation Guide, Mounting Kit
• Environment: Operating Temperature: 0°C–40°C (32°F–104°F); Storage Temperature: -30°C–70°C (-22°F–158°F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing; Operating and Storage Altitude: up to 2000 m (6561 feet)

Source: TP-Link official page
