Description
Overview

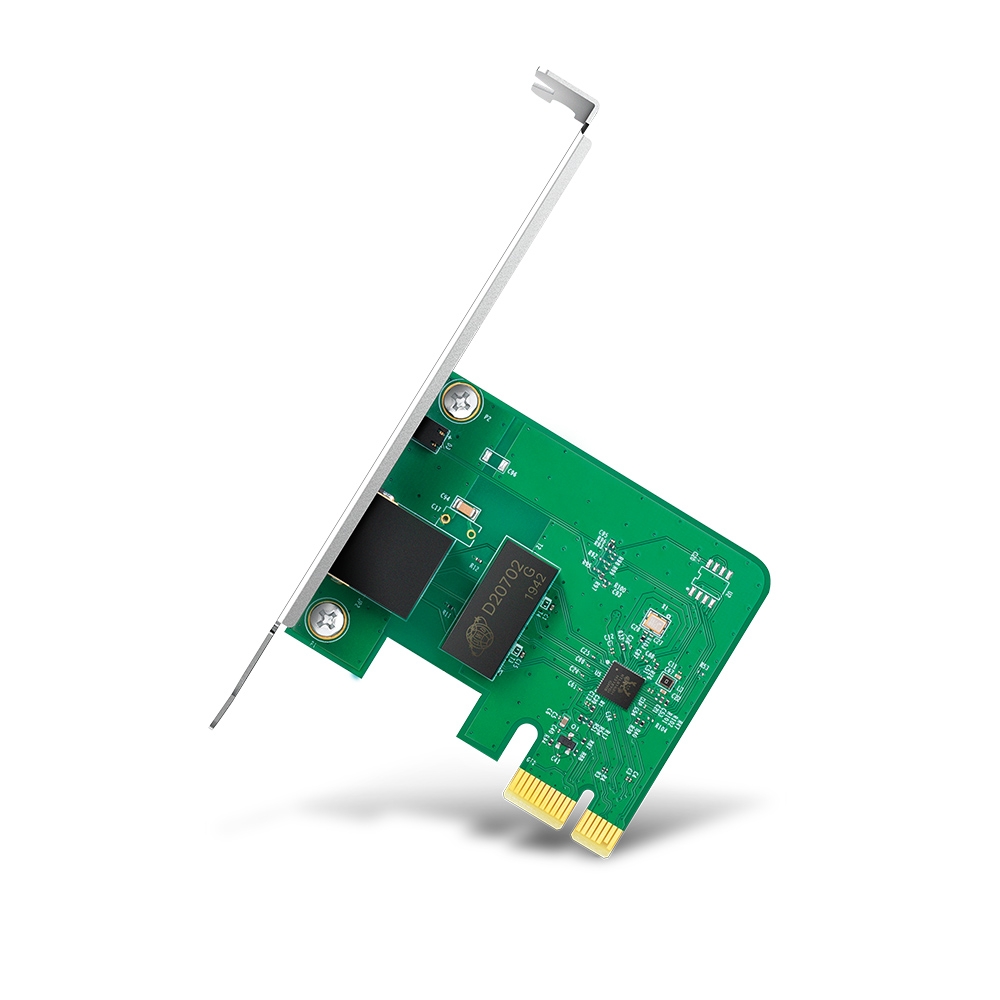

The TP-Link TG-3468 is a reliable Gigabit PCI Express Network Adapter designed to provide fast and stable wired network connections. It supports network speeds of 10/100/1000 Mbps, enabling smooth video streaming, online gaming, and video chatting experiences. This adapter is ideal for upgrading your desktop PC to a high-speed Gigabit Ethernet connection.
Technical Specifications
- Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
- Interface: PCI Express; 1 Ã 10/100/1000 Mbps RJ45 Port with Auto-Negotiation and Auto MDI/MDIX
- Network Media: 10BASE-T: UTP category 3, 4, 5 cable (max 100m), EIA/TIA-568 100Ω STP (max 100m); 100BASE-TX: UTP category 5, 5e cable (max 100m), EIA/TIA-568 100Ω STP (max 100m); 1000BASE-T: UTP category 5, 5e cable (max 100m)
- LED: Status indicator
- Data Rates: 10/100/1000 Mbps for Half-Duplex mode; 20/200/2000 Mbps for Full-Duplex mode
- Dimensions (W x D x H): 3.1 Ã 4.8 Ã 0.8 in (78.5 Ã 120.8 Ã 21.5 mm)
- Flow Control: IEEE 802.3x Flow Control (Full-Duplex)
- Certification: FCC, CE, RoHS, BSMI, VCCI
- Package Content: Gigabit PCI Express Network Adapter TG-3468, Quick Installation Guide, Resource CD, Low-profile Bracket

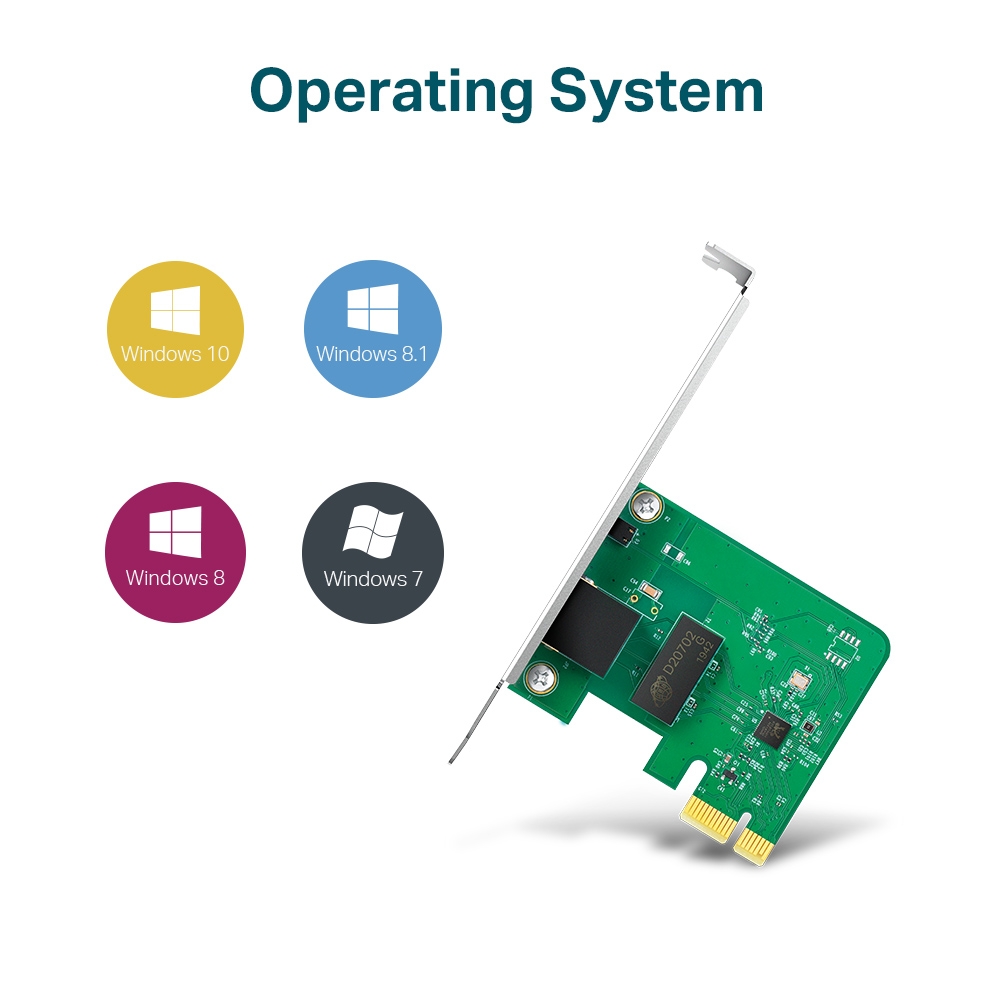

- System Requirements: Windows 11, 10, 8.1, 8, 7
- Environment: Operating Temperature: 0°C to 40°C (32°F to 104°F); Storage Temperature: -40°C to 70°C (-40°F to 158°F); Operating Humidity: 10% to 90% non-condensing; Storage Humidity: 5% to 90% non-condensing
Source: TP-Link official page
