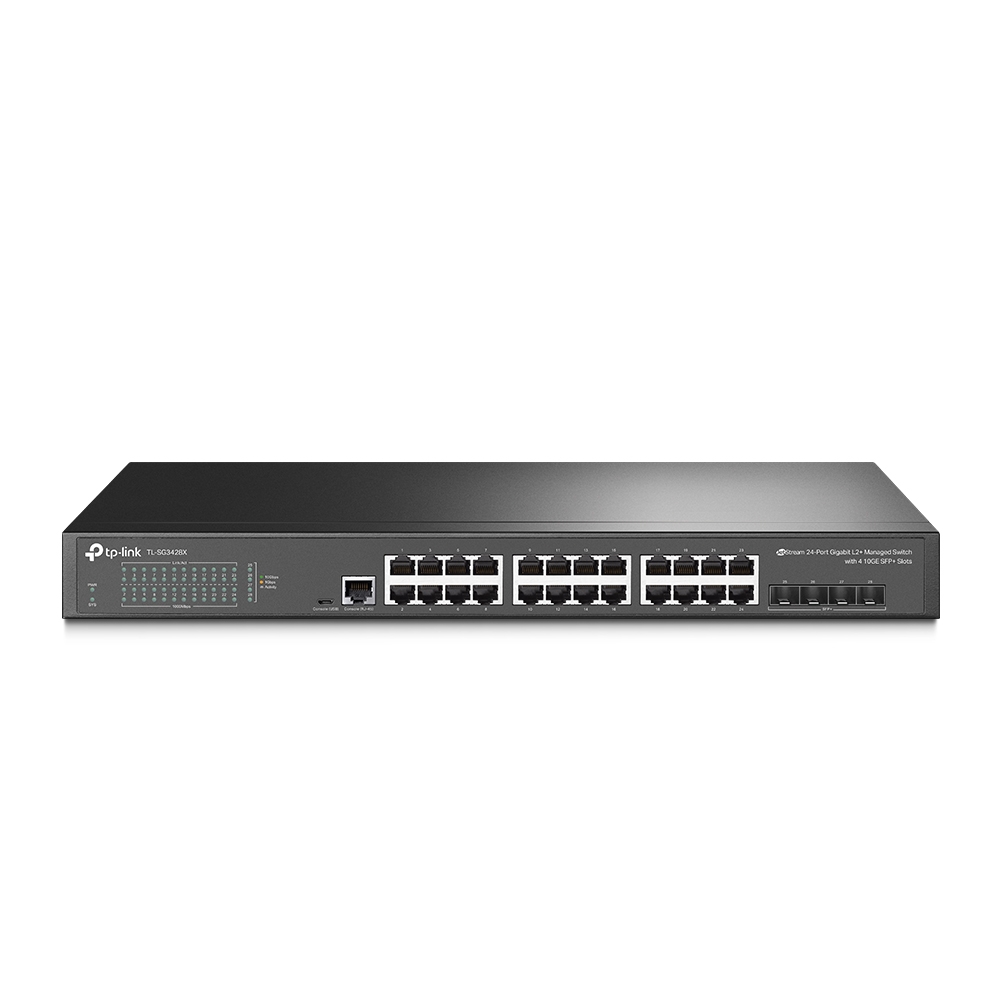

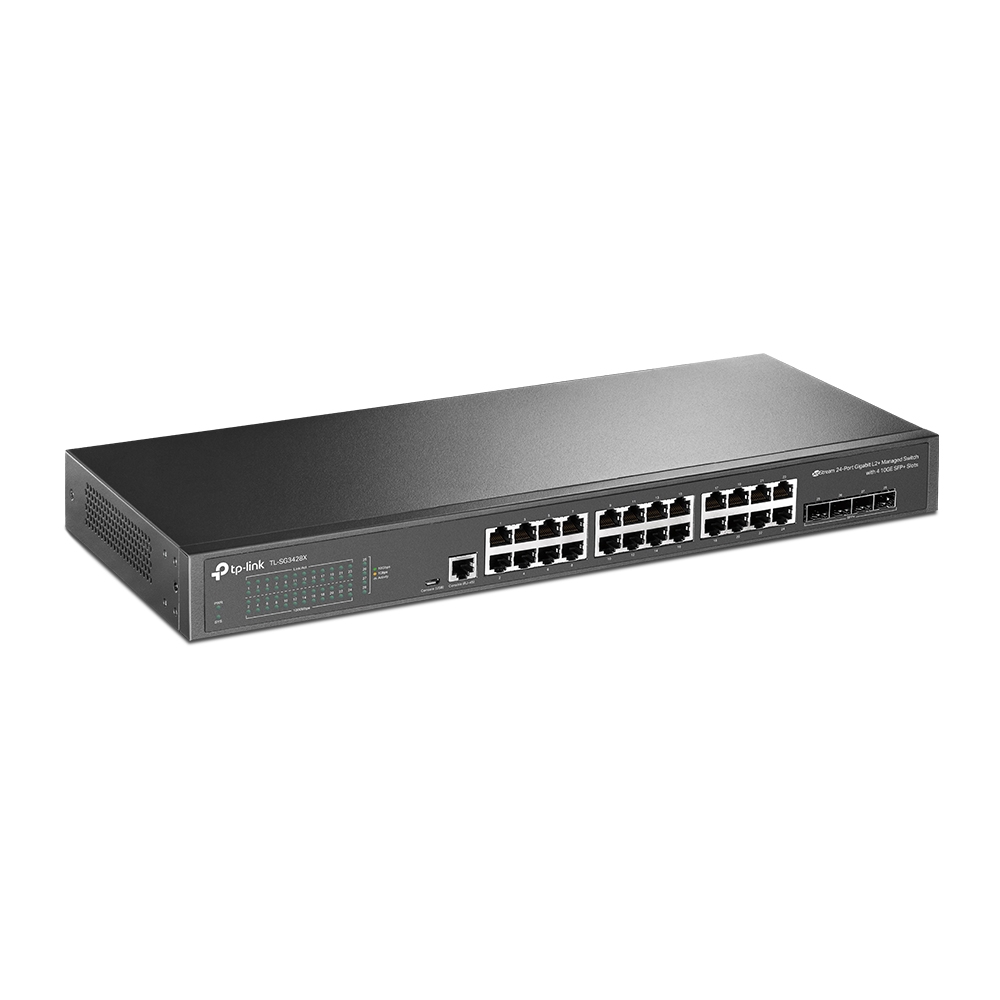

TP-Link JetStream TL-SG3428X 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

Overview

The TP-Link JetStream TL-SG3428X is a 24-port Gigabit L2+ managed switch equipped with 4 10GE SFP+ slots, designed to deliver high-performance networking for business environments. Integrating seamlessly with the Omada Software Defined Networking (SDN) platform, it enables remote and centralized management anytime and anywhere, enhancing network control and efficiency.

This switch offers robust Layer 2 and Layer 3 features, including static routing, DHCP services, VLAN support, and advanced QoS capabilities. Its fanless design ensures quiet operation, making it suitable for office or data center deployments. With a switching capacity of 128 Gbps and a packet forwarding rate of 95.23 Mpps, the TL-SG3428X handles demanding network traffic with ease.

Technical Specifications

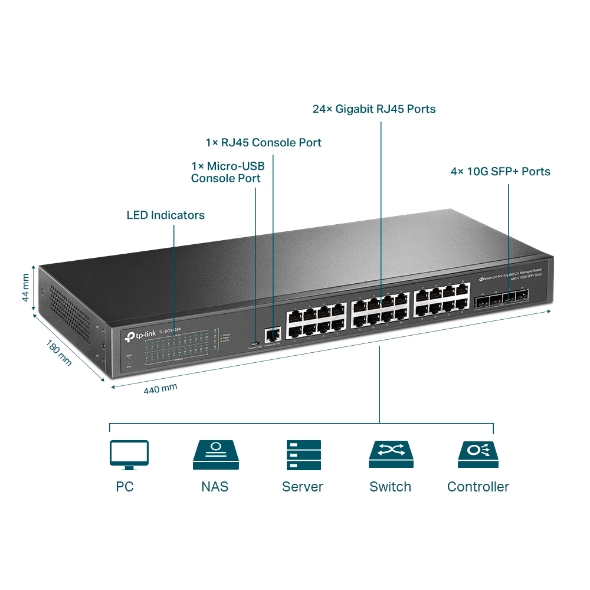

• Interface: 24× 10/100/1000 Mbps RJ45 Ports, 4× 10G SFP+ Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port
• Fan Quantity: Fanless

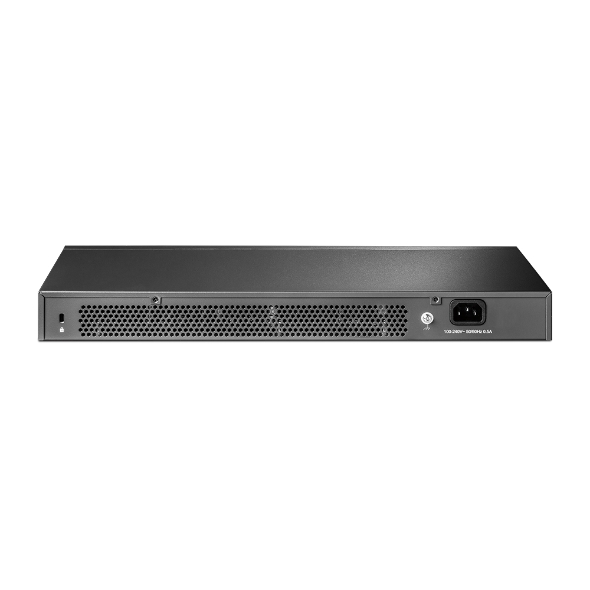

• Power Supply: 100-240 V AC~50/60 Hz
• Dimensions (W x D x H): 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
• Mounting: Rack Mountable
• Max. Power Consumption: 23.6 W (110V/60Hz)
• Max Heat Dissipation: 80.353 BTU/h (110 V/60 Hz)
• Switching Capacity: 128 Gbps
• Packet Forwarding Rate: 95.23 Mpps
• MAC Address Table: 16 K entries
• Packet Buffer Memory: 12 Mbit
• Jumbo Frame: 9 KB
• Quality of Service: 8 priority queues, 802.1p CoS/DSCP priority, SP/WRR scheduling, bandwidth control, flow actions including mirror, redirect, rate limit, and QoS remark
• L3 Features: 128 IPv4/IPv6 interfaces, 48 static routes, static ARP, proxy ARP, gratuitous ARP, DHCP server and relay functions
• L2 and L2+ Features: Link aggregation (static and 802.3ad LACP), spanning tree protocols (STP, RSTP, MSTP), loopback detection, flow control, port and CPU mirroring
• L2 Multicast: IGMP v1/v2/v3 snooping and querier, MLD v1/v2 snooping and querier, multicast filtering with 256 profiles
• Advanced Features: Automatic device discovery, batch configuration and firmware upgrade, intelligent network monitoring, abnormal event warnings, unified configuration, reboot scheduling
• VLAN: Supports up to 4K VLAN groups, 802.1Q tagged VLAN, MAC VLAN, protocol VLAN, private VLAN, GVRP, QinQ, and voice VLAN
• Access Control List: Time-based ACL, MAC and IP ACLs, combined ACL, IPv6 ACL, policy actions including mirroring, redirect, rate limit, and QoS remark
• IPv6 Support: Dual IPv4/IPv6, MLD snooping, IPv6 ACL, static IPv6 routing, neighbor discovery, ICMPv6, and IPv6 applications like DHCPv6 client and IPv6 SNMP
• MIBs: Supports multiple MIBs including RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925, and TP-Link private MIB
• Omada App: Compatible with OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller for management
• Centralized Management: Supports Omada Cloud-Based Controller, OC300, OC200, and Omada Software Controller
• Cloud Access: Available via Omada controllers
• Zero-Touch Provisioning: Supported with Omada Cloud-Based Controller
• Management Features: Web GUI, CLI via console/telnet, SNMP v1/v2c/v3, RMON, SDM template, DHCP/BOOTP client, LLDP/LLDP-MED, dual image/configuration, CPU monitoring, cable diagnostics, EEE, password recovery, SNTP, system log
• Certification: CE, FCC, RoHS
• Package Content: TL-SG3428X Switch, power cord, quick installation guide, rackmount kit, rubber feet
• System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™, 7/8/10/11, MAC® OS, NetWare®, UNIX®, or Linux
• Environment: Operating temperature 0–45 °C (32–113 °F), storage temperature -40–70 °C (-40–158 °F), operating humidity 10–90% RH non-condensing, storage humidity 5–90% RH non-condensing

Source: TP-Link official page
