Omada EAP215-Bridge KIT 5GHz Wireless Bridge with 867Mbps Speed and Long-Range Transmission

Overview

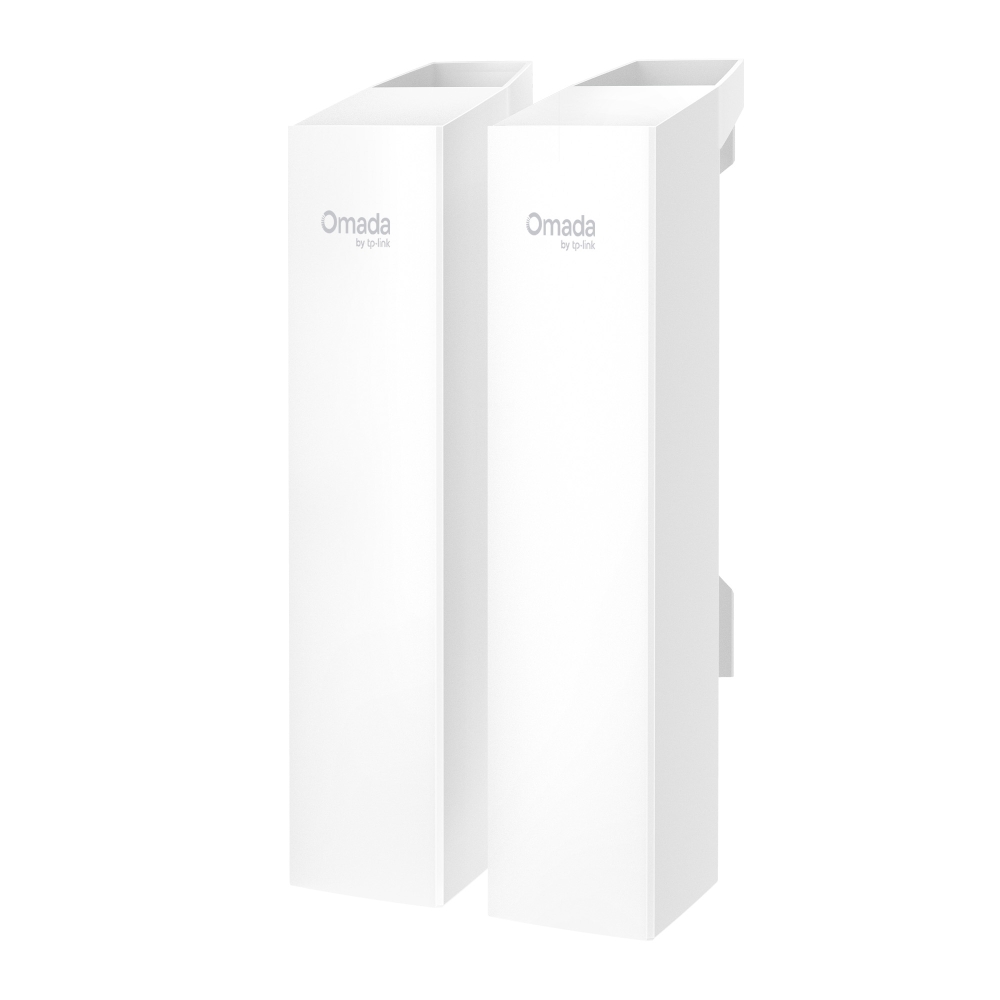

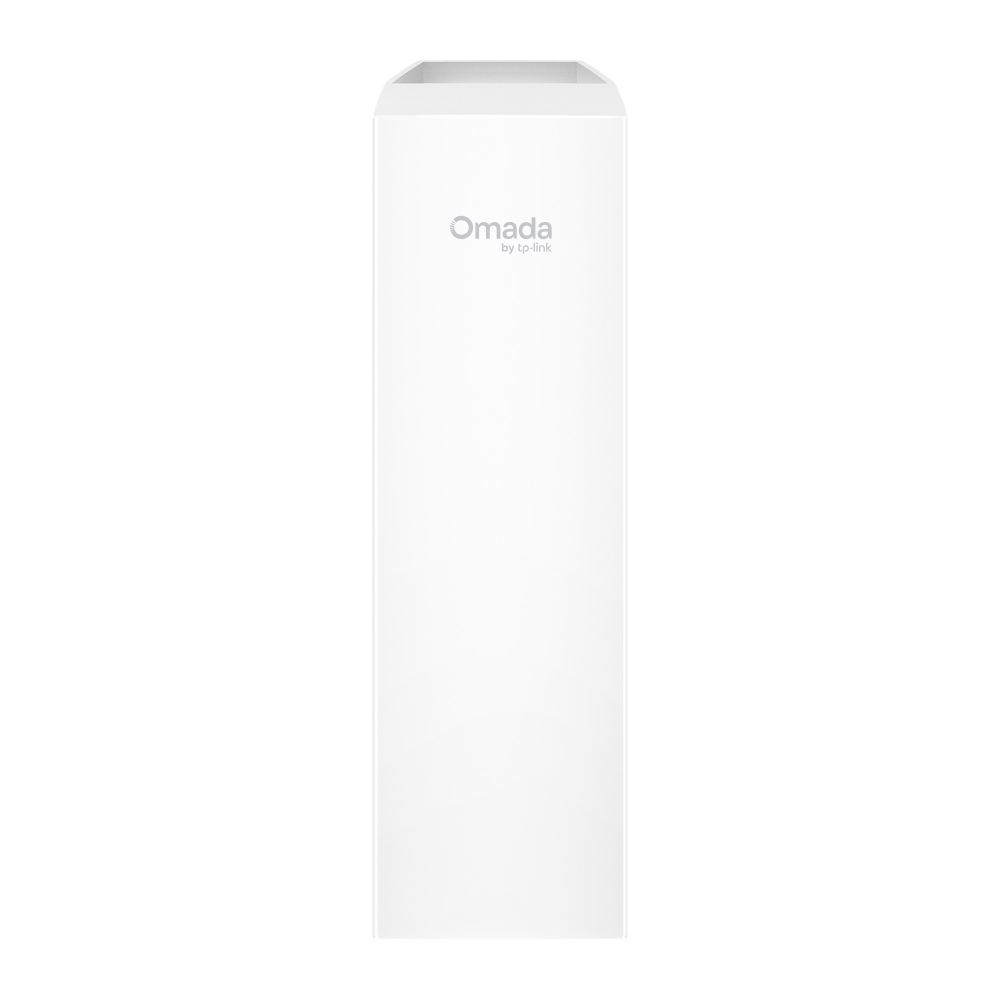

The Omada EAP215-Bridge KIT is a high-performance wireless bridge designed for long-range indoor and outdoor networking. Operating on the 5 GHz band, it delivers wireless data rates up to 867 Mbps and supports transmission distances up to 5 kilometers (3.1 miles). This device simplifies deployment with auto-pairing features and offers centralized management through Omada Controller solutions, enabling efficient network control and monitoring.

Its robust IP65-rated weatherproof enclosure ensures reliable operation in various environmental conditions, while multiple mounting options including pole and wall mounts provide installation flexibility. The bridge supports both point-to-point (PtP) and point-to-multipoint (PtMP) configurations, accommodating up to four multi-bridge connections.

Technical Specifications

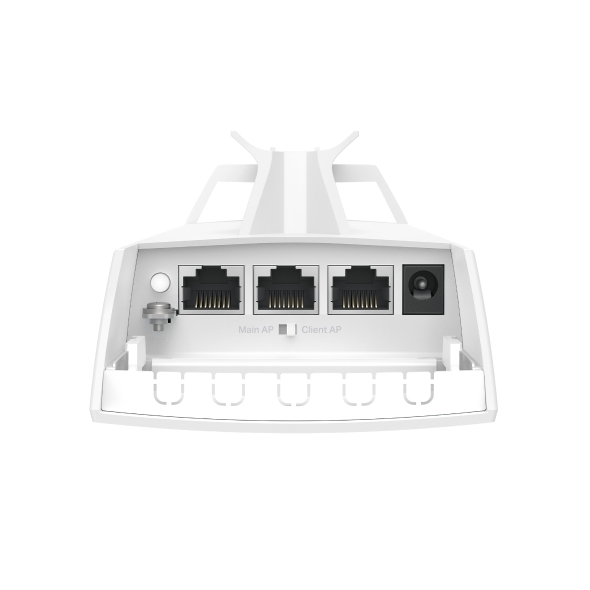

• Interface: 3x Gigabit Ethernet Ports
• Button: Reset
• DIP Switch: Role Switch
• Power Supply: 12V DC, 802.3af PoE (pins 1,2; 3,6), 24V Passive PoE (pins +4,5; -7,8) (Passive PoE Adapter Included – For Dry Indoor Use Only)
• Max. Power Consumption: 11.5W
• Dimensions (W x D x H): 3.1 × 2.4 × 10.9 in (79 × 60 × 276 mm)
• Antenna: Internal 2×2 Dual-polarized directional MIMO antennas; 5 GHz: 14.0 dBi; Horizontal: 43°, Vertical: 18°
• Weatherproof Enclosure: IP65

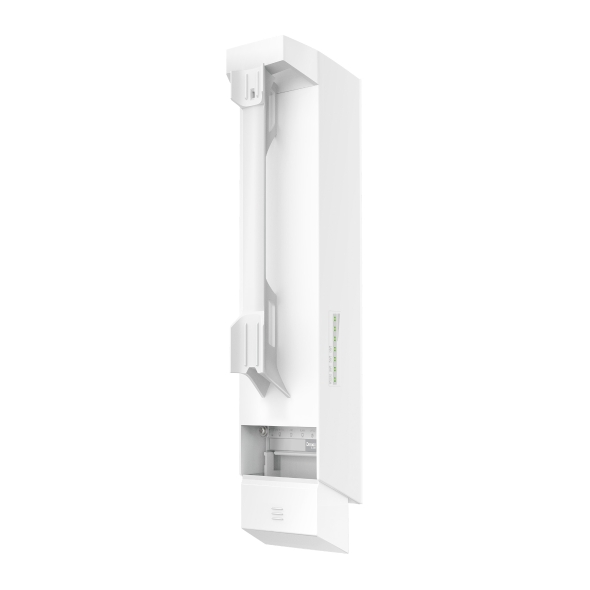

• Mounting: Pole and wall mounting (Pole accessories included)
• PtP: Supported
• PtMP: Supports up to 1:4 multi-bridge connections
• Transmission Distance: 5,000 m (3.1 mi)
• Wireless Standards: IEEE 802.11 a/n/ac
• Frequency: 5 GHz
• Signal Rate: Up to 867 Mbps on 5 GHz
• Wireless Functions: MU-MIMO 5G 2×2 MU-MIMO DL, Multiple SSIDs (8), Wireless Statistics, Wireless Schedule, Reboot Schedule, RADIUS Accounting, Static IP/Dynamic IP, Rate Limit, Guest Network, Enable/Disable Wireless Radio, Enable/Disable SSID Broadcast
• Wireless Security: VLAN, Rogue AP Detection, Maximum MAC Filter: 4,000, Wireless Encryption
• Transmission Power: CE: <23dBm (5 GHz band 1/2, EIRP), <30dBm (5 GHz band 3, EIRP); FCC: <23.5dBm (5 GHz band 1), <25dBm (5 GHz band 4)
• Omada App: Supported
• Restore & Backup: Supported
• Firmware Update via Web: Supported
• NTP: Supported
• Centralized Management: Omada Central (Cloud-Based), Omada Hardware Controller, Omada Software Controller
• Cloud Access: Yes, requires Omada Controller
• Email Alerts: Supported
• LED ON/OFF Control: Supported
• SNMP: Supported
• SSH: Supported
• Web-based Management: Supported
• Zero-Touch Provisioning: Supported
• Certification: CE, FCC, RoHS
• Package Content: EAP215-Bridge KIT, Installation Guide, Mounting Kit, Passive PoE Adapter
• Lightning Protection: Air discharge: ±8kV; Contact discharge: ±4kV; Common mode 10/700: ±6kV
• Environment: Operating Temperature: -40 °C to 70 °C (-40 °F to 158 °F); Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing

Source: TP-Link official page
