TP-Link EAP625GP-Wall AX1800 Wi-Fi 6 Wall Plate GPON Access Point with 2GB RAM and Gigabit Ports

Overview

The TP-Link EAP625GP-Wall is an AX1800 Wi-Fi 6 wall plate GPON access point designed to deliver high-speed wired and wireless connectivity through a single fiber connection. It supports multiple services including voice, VoIP, data, and HD video, making it an excellent choice for hotel rooms, small offices, and home offices. Featuring PPSK support, it enhances network security and user management.

Technical Specifications

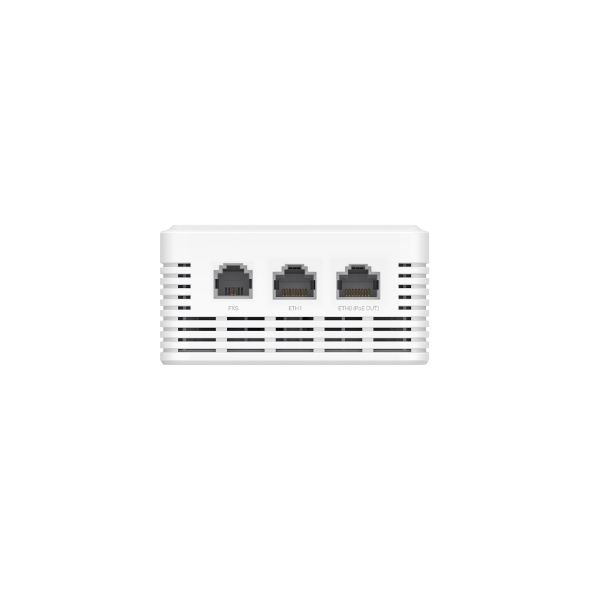

• Interface: 1x GPON Port, 1x FXS Port, 2x Gigabit RJ45 Ports (one supports 802.3af PoE Out)
• GPON Interface: Port Type: SC-APC; Standards and Protocols: ITU-984.x, G.988, Class B+; Data Rate: 2.488 Gbps Downstream, 1.244 Gbps Upstream; Fiber Type: 9/125 um Single mode; Max. Cable Length: 20 km
• Button: Reset, LED
• Power Supply: 100–240V~ 50/60Hz, 0.5A
• Max. Power Consumption: 30.5W (PoE out full load 15W)
• Weight: 350g
• Dimensions (W x D x H): 5.6 × 3.4 × 1.8 in (143 × 86 × 44.6 mm)
• Antenna: Internal Omni; 2.4 GHz: 2× 4 dBi; 5 GHz: 2× 6.5 dBi
• Mounting: Wall Mounting (kits included)
• Coverage: 50㎡ (600ft²)
• Concurrent Clients: 120+
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 5 GHz: 1201 Mbps; 2.4 GHz: 574 Mbps
• Wireless Functions: 2×2 (2.4G & 5G) MU-MIMO, HE80 (80 MHz Bandwidth), OFDMA, Mesh, Seamless Roaming, Multiple SSIDs (16 total, 8 per band), Enable/Disable SSID Broadcast, Enable/Disable Wireless Radio, Guest Network, Automatic Channel Assignment, Beamforming, Rate Limit, Band Steering, Load Balance, Airtime Fairness, Transmit Power Control, QoS (WMM), RADIUS Accounting, MAC Authentication, Reboot Schedule, Wireless Schedule and Statistics, Static IP/Dynamic IP
• Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, VLAN, Rogue AP Detection, 802.1X Support, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Transmission Power: CE: <20 dBm (2.4 GHz, EIRP), <23 dBm (5 GHz, band1 & band2, EIRP), <24 dBm (5 GHz, band3, EIRP); FCC: <21 dBm (2.4 GHz), <21 dBm (5 GHz)
• Omada App: Yes
• Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
• Cloud Access: Yes (requires Omada controller)
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• System Logging Local/Remote Syslog: System Log
• SSH: Yes
• Web-based Management: Yes
• Zero-Touch Provisioning: Yes (requires Omada Cloud-Based Controller)
• Certification: CE, FCC, RoHS, IC
• Package Content: EAP625GP-Wall, Wall Mounting Kit, Installation Guide
• System Requirements: Microsoft Windows XP, Vista, 7, 8, 10, 11; Linux
• Environment: Operating Temperature: 0–40 °C (32–104 °F); Storage Temperature: -40–70 °C (-40–158 °F); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link official page
