TP-Link Omada SG6428XHP 24-Port Gigabit L3 Managed PoE+ Switch with 4x 10G SFP+ Slots, 720W PoE Budget

Overview

The TP-Link Omada SG6428XHP is a high-performance enterprise Layer 3 managed PoE+ switch designed for robust network environments. It features 24 gigabit PoE+ RJ45 ports and 4 10G SFP+ slots, providing flexible connectivity options and a substantial PoE power budget of up to 720 W. The switch supports advanced routing protocols including Static Routing, ERPS, VRRP, RIP, OSPF, and DHCP Server functionalities, ensuring efficient and reliable network management.

Designed for scalability and resilience, the SG6428XHP supports stacking of up to 8 units with a stacking bandwidth of up to 80 Gbps. It includes redundant, hot-swappable power supplies and fans to maintain continuous operation. Centralized management is available through Omada Hardware, Cloud-Based, or Software Controllers, enabling seamless network control and zero-touch provisioning.

Technical Specifications

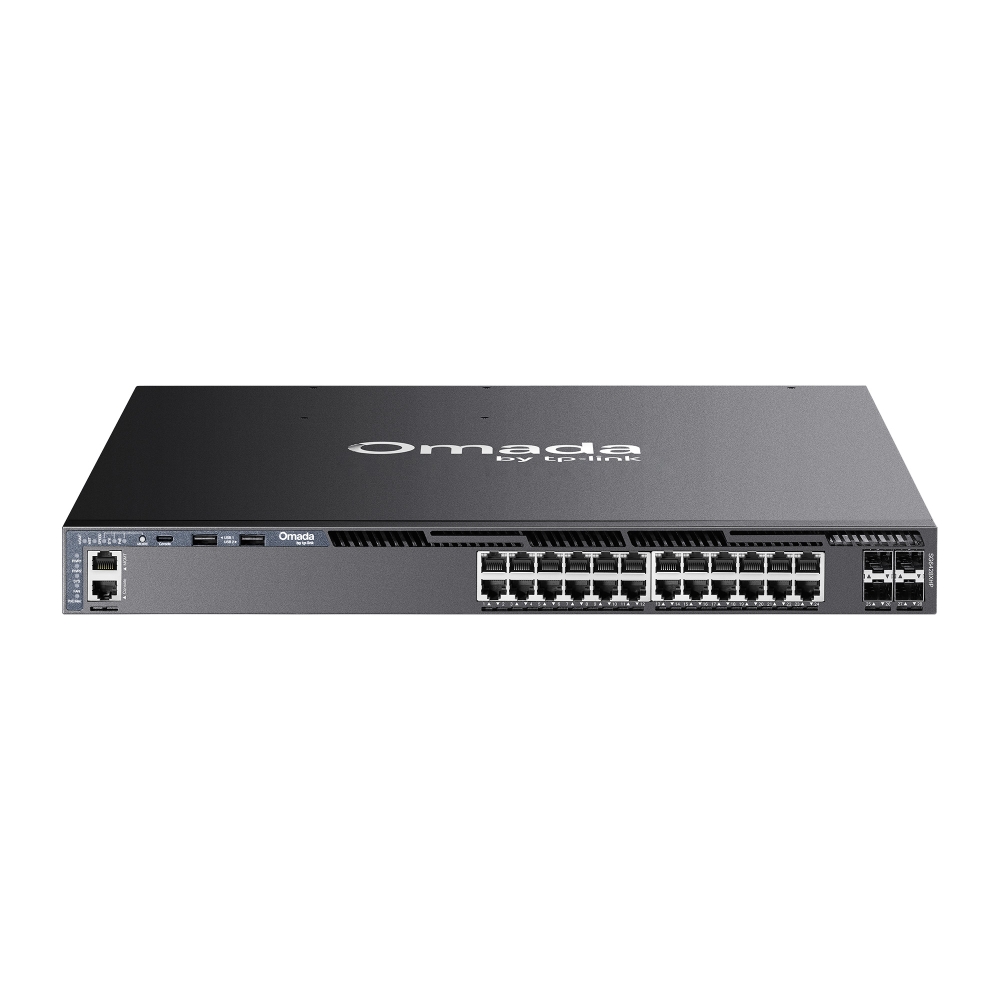

• Interfaces: 24× 10/100/1000 Mbps PoE+ RJ45 ports, 4× 10G SFP+ slots, 2× USB 2.0 ports, 1× RJ45 console port, 1× USB Type-C console port, 1× RJ45 management port

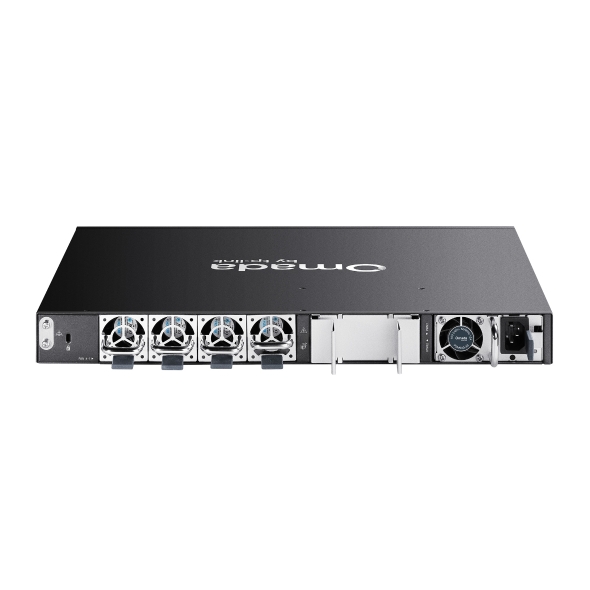

• Fan Quantity: Four field-replaceable and hot-swappable fans
• Power Supply: Two field-replaceable and hot-swappable power supply modules (100–240 VAC, 50/60 Hz); ships with one PSM500-AC module by default, second module sold separately
• PoE Ports (RJ45): 24 ports compliant with 802.3at/af, up to 30 W per port, total PoE budget up to 720 W (varies with power supply modules)
• Dimensions (W×D×H): 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)
• Mounting: Rackmountable
• Max Power Consumption: 42.9 W (no PD connected, 110 V/60 Hz); 916.6 W (with 720 W PD connected and dual PSM500-AC, 110 V/60 Hz)
• Max Heat Dissipation: 146.29 BTU/hr (no PD connected); 3,125.61 BTU/hr (with 720 W PD connected and dual PSM500-AC)
• Switching Capacity: 128 Gbps per unit
• Stacking: Supports up to 8 units; stacking via 10G SFP+ slots; stacking bandwidth up to 80 Gbps (4 stacking ports)
• Packet Forwarding Rate: 95.2 Mpps
• MAC Address Table: 32 K entries
• Packet Buffer Memory: 3 MB
• Jumbo Frame: Up to 9 KB
• Quality of Service: 8 priority queues, port priority, IEEE 802.1p, DSCP priority, bandwidth control, storm control, voice VLAN, user-defined OUI, and QoS remarking
• L3 Features: Supports 4,094 L3 interfaces (IPv4/IPv6), static routes, ECMP, DHCPv4 server, VRRP, OSPF, RIP, VRF, PIM multicast protocols, IGMP, and policy-based routing
• L2 and L2+ Features: LACP/static LAG, STP/RSTP/MSTP, ERPS, port isolation, loopback detection, port security, sticky MAC, flow control, port mirroring, RSPAN, LLDP/LLDP-MED, multicast filtering and snooping
• Advanced Features: Automatic device discovery, batch configuration and firmware upgrade, intelligent network monitoring, abnormal event warnings, unified configuration, reboot scheduling, ISP features including Ethernet Link OAM, Layer 2 protocol tunneling, device link detect protocol, DDM, and sFlow
• VLAN: Supports 4K 802.1Q VLANs, MAC VLAN, protocol VLAN, QinQ, private VLAN, and GVRP
• Security: IP-MAC-Port binding, ARP inspection, DHCP snooping, IPv6 source guard, RA guard, DoS defense, 802.1X authentication with Radius, AAA including TACACS+, and ACL
• Omada App Support: Yes, requires Omada Hardware, Cloud-Based, or Software Controller
• Centralized Management: Supported via Omada Cloud-Based Controller (v5.15.22+), Hardware Controller (v5.15.20+), or Software Controller (v5.15.20+)
• Cloud Access: Supported with Omada Controllers
• Zero-Touch Provisioning: Supported via Omada Cloud-Based Controller
• Management Features: Web GUI, CLI via console/telnet, SNMP v1/v2c/v3, RMON, SDM template, DHCP/BOOTP client, LLDP/LLDP-MED, dual image/configuration, CPU monitoring, cable diagnostics, password recovery, SNTP, IEEE 802.3az Energy Efficient Ethernet
• Package Contents: SG6428XHP switch, power cord, RJ45 console cable, locking strap, rackmount kit, rubber feet, quick installation guide
• System Requirements: Compatible with Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/10/11, Mac OS, NetWare, UNIX, or Linux
• Environment: Operating temperature -5°C to 45°C (23°F to 113°F) at 2,000 m; -5°C to 40°C (23°F to 104°F) at 3,000 m; storage temperature -40°C to 70°C (-40°F to 158°F); operating humidity 10–90% RH non-condensing; storage humidity 5–90% RH non-condensing

Source: TP-Link official page
