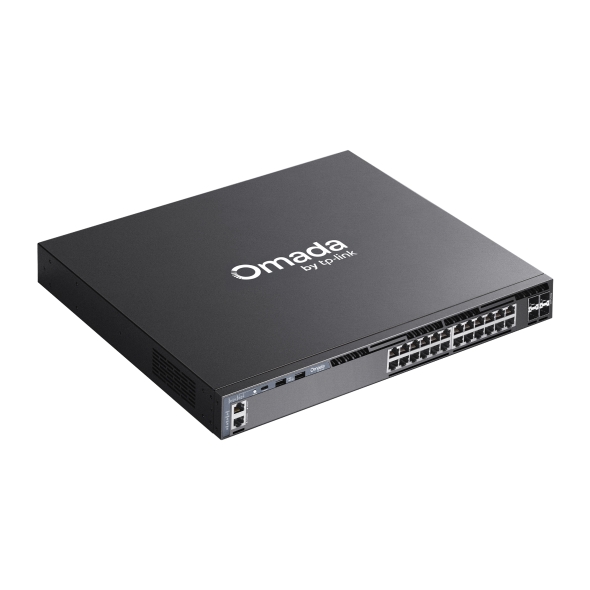

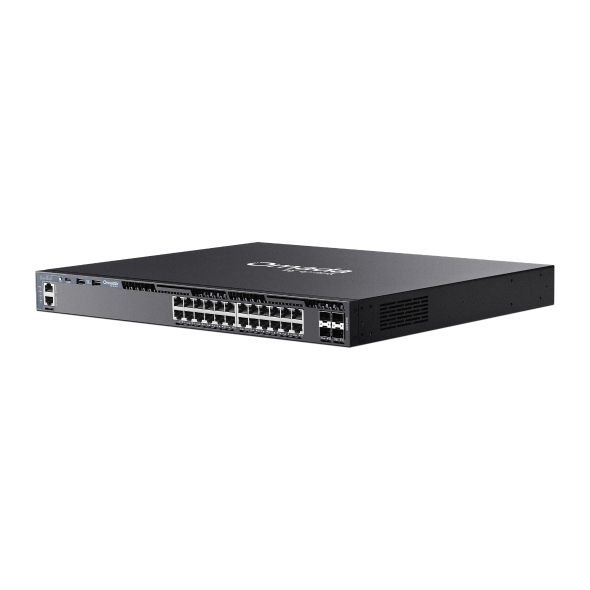

Omada SG6428X 24-Port Gigabit L3 Managed Switch with 4x 10G SFP+ Slots

Overview

The Omada SG6428X is a robust enterprise-grade Layer 3 managed switch designed for high-performance networking environments. It features 24 gigabit RJ45 ports alongside 4 high-speed 10G SFP+ slots, enabling flexible connectivity and uplink options. This switch supports comprehensive Layer 3 routing protocols such as Static Routing, OSPF, RIP, and VRRP, making it suitable for complex network architectures. Additionally, it offers stacking capabilities for up to 8 units, allowing scalable network expansion with a stacking bandwidth of up to 80 Gbps.

Designed for reliability and efficiency, the SG6428X includes dual internal fixed power supply modules and four internal fixed fans to ensure stable operation. It supports centralized management through Omada controllers and offers advanced security and QoS features to optimize network performance and protection.

Technical Specifications

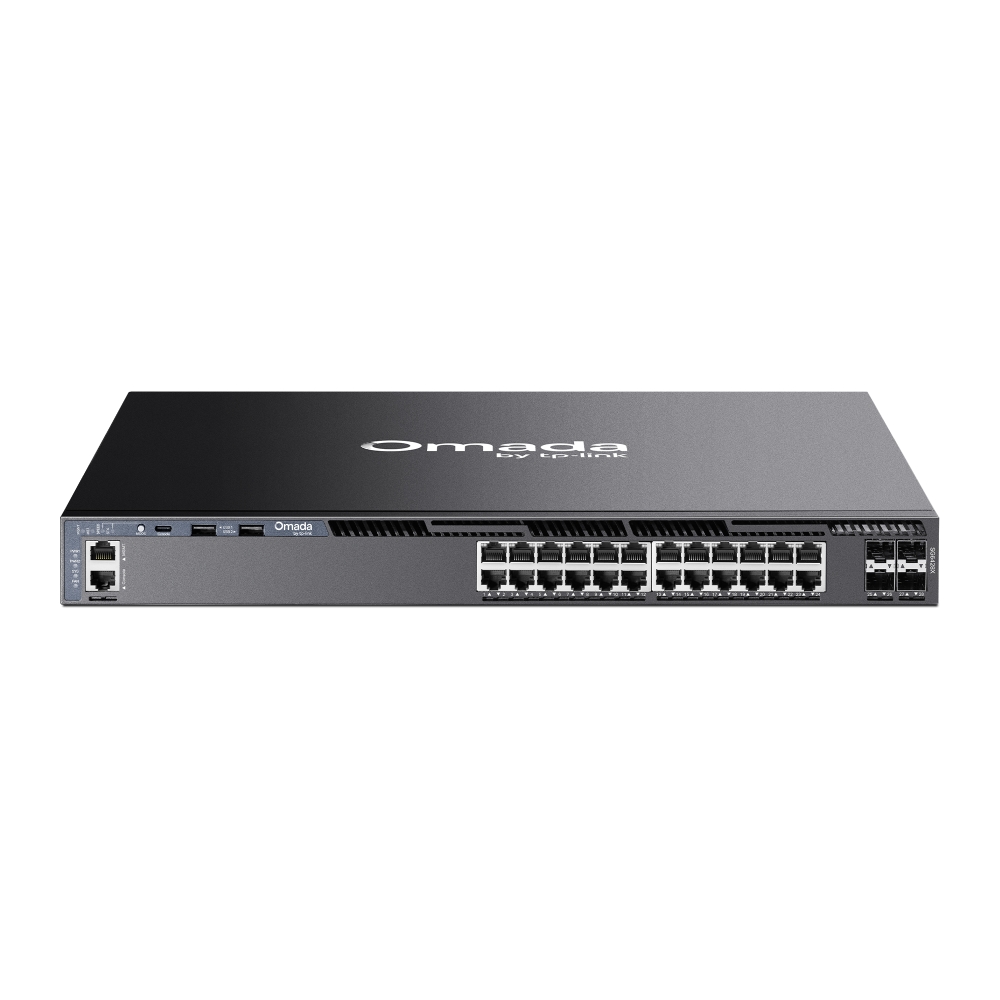

• Interface: 24× 10/100/1000 Mbps RJ45 Ports, 4× 10G SFP+ Slots, 2× USB 2.0 Ports, 1× RJ45 Console Port, 1× USB Type-C Console Port, 1× RJ45 Management Port
• Fan Quantity: Four Internal Fixed Fans
• Power Supply: Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)
• Dimensions (W x D x H): 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
• Mounting: Rackmountable
• Max. Power Consumption: 28.4 W (220 V/50 Hz)
• Max Heat Dissipation: 96.91 BTU/hr (220 V/50 Hz)
• Switching Capacity: 128 Gbps per Unit
• Stacking: Supports up to 8 units; stacking ports use 10G SFP+ slots; stacking bandwidth up to 80 Gbps (4 stack ports)
• Packet Forwarding Rate: 95.2 Mpps
• MAC Address Table: 32 K entries
• Packet Buffer Memory: 3 MB
• Jumbo Frame: 9 KB
• Quality of Service (QoS): 8 priority queues, port priority, IEEE 802.1p, DSCP, bandwidth control, rate limit, storm control, and more
• Layer 3 Features: 4,094 L3 interfaces (IPv4/IPv6), static routes, host route table, ECMP, DHCPv4 server, VRRPv2/v3, OSPFv2/v3, RIP, PIM, IGMP, and more
• Layer 2 and L2+ Features: LACP, STP/RSTP/MSTP, ERPS, port isolation, loopback detection, port security, multicast filtering, LLDP, and others
• Advanced Features: Automatic device discovery, batch configuration and firmware upgrade, intelligent network monitoring, ISP features including Ethernet Link OAM, DLDP, sFlow, PPPoE ID insertion
• VLAN Support: 4K 802.1Q VLANs, MAC VLAN, Protocol VLAN, QinQ, Private VLAN, GVRP
• Security: IP-MAC-Port binding, ARP inspection, DHCP snooping, 802.1X authentication, AAA including TACACS+, ACLs, DoS defense, and more
• Omada App Compatibility: Yes, requires Omada Hardware, Cloud-Based, or Software Controller
• Centralized Management: Supported via Omada Cloud-Based Controller (v5.15.22+), Hardware Controller (v5.15.20+), or Software Controller (v5.15.20+)
• Cloud Access: Supported with Omada controllers
• Zero-Touch Provisioning: Supported with Omada Cloud-Based Controller
• Management Interfaces: Web GUI, CLI via console/telnet, SNMPv1/v2c/v3, RMON, DHCP/BOOTP client, LLDP/LLDP-MED, dual image/configuration, CPU monitoring, cable diagnostics, system log, and more
• Package Contents: SG6428X Switch, power cords, RJ45 console cable, locking strap, rackmount kit, rubber feet, quick installation guide
• System Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/10/11, macOS, NetWare, UNIX, or Linux
• Environmental Conditions: Operating temperature -5°C to 50°C (23°F to 122°F) at 300m altitude; storage temperature -40°C to 70°C (-40°F to 158°F); operating humidity 10–90% RH non-condensing; storage humidity 5–90% RH non-condensing

Source: TP-Link official page
