TP-Link Omada SG6654X 48-Port Gigabit L3 Managed Switch with 6x 10G SFP+ Slots

Overview

The TP-Link Omada SG6654X is a high-performance Layer 3 managed switch designed for enterprise campus networks. It features 48 gigabit RJ45 ports alongside 6 10G SFP+ slots, providing flexible and scalable connectivity options. The switch supports advanced Layer 3 routing protocols such as Static Routing, RIP, OSPF, and VRRP, enabling efficient network traffic management and redundancy.

With stacking capabilities of up to 8 units and a stack bandwidth of up to 120 Gbps, the SG6654X offers enhanced scalability and simplified management. Dual internal power supplies and four fixed fans ensure high availability and reliable operation in demanding environments.

Designed for centralized network management, it integrates seamlessly with the Omada ecosystem through cloud-based, hardware, or software controllers. This switch supports a wide range of Layer 2 and Layer 3 features including VLAN, QoS, multicast, and security functions, making it ideal for complex enterprise deployments.

Technical Specifications

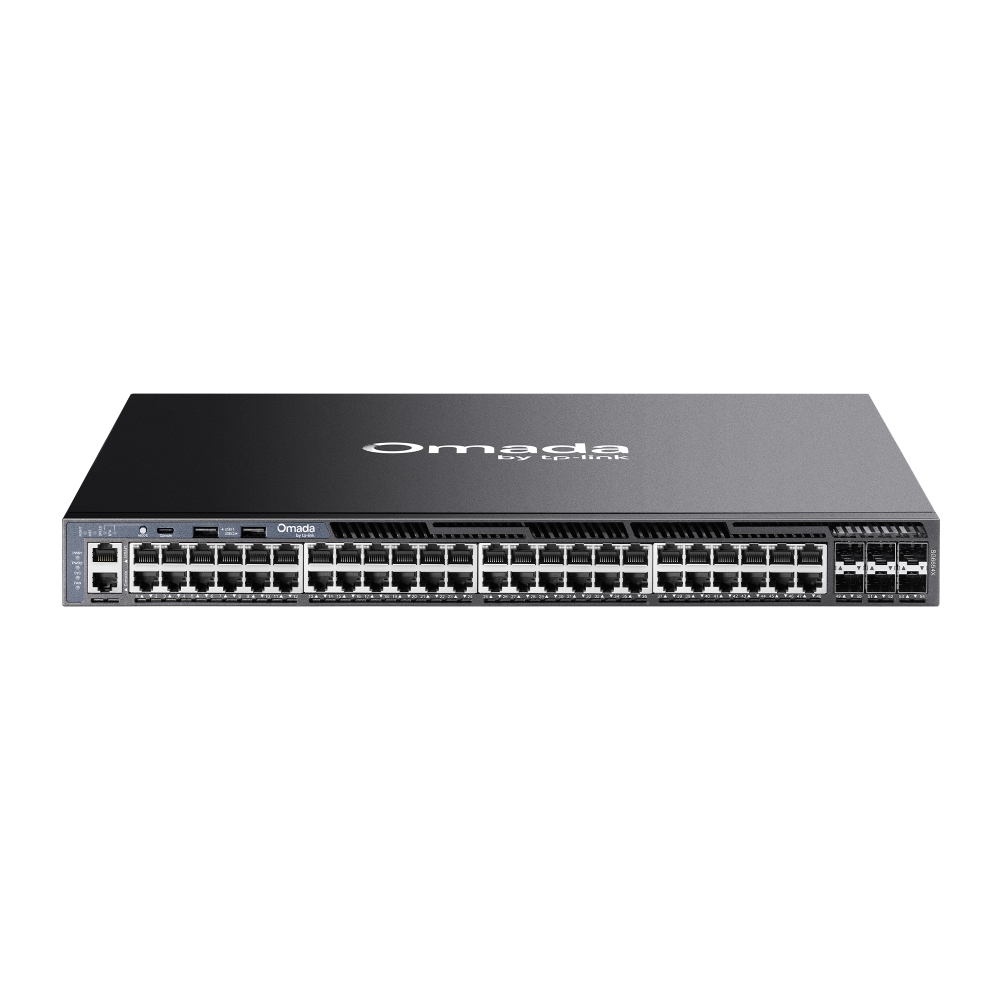

• Interface: 48× 10/100/1000 Mbps RJ45 ports; 6× 10G SFP+ slots; 2× USB 2.0 ports; 1× RJ45 console port; 1× USB Type-C console port; 1× RJ45 management port

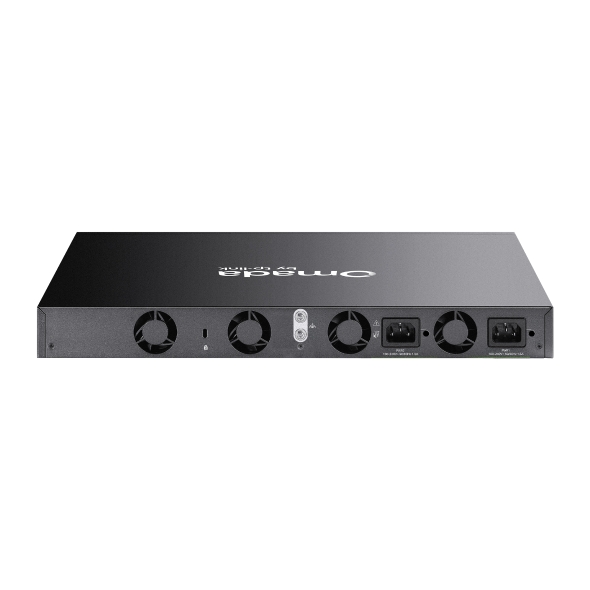

• Fan Quantity: Four internal fixed fans
• Power Supply: Two internal fixed power supply modules (100–240 VAC, 50/60 Hz)
• Dimensions (W×D×H): 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
• Mounting: Rackmountable
• Max. Power Consumption: 39.8 W (220 V/50 Hz)
• Max Heat Dissipation: 135.81 BTU/hr (220 V/50 Hz)
• Switching Capacity: 216 Gbps per unit
• Stacking: Supports up to 8 units; stacking ports use 10G SFP+ slots; stack bandwidth up to 120 Gbps (6 stack ports)
• Packet Forwarding Rate: 160.7 Mpps
• MAC Address Table: 32 K entries
• Packet Buffer Memory: 3 MB
• Jumbo Frame: 9 KB
• Quality of Service: 8 priority queues, port priority, IEEE 802.1p, DSCP priority, bandwidth control, storm control, voice VLAN, user-defined OUI, and QoS remarking
• Layer 3 Features: Up to 256 IPv4 and IPv6 interfaces; static routing (max 1,024 IPv4, 512 IPv6); RIP v1/v2; OSPF v2/v3; VRRP v2/v3; ECMP with 256 entries; DHCP server and relay support
• Layer 2 and L2+ Features: Link aggregation, spanning tree protocols, loopback detection, flow control, IGMP snooping, ERPS, mirroring, RSPAN, multicast filtering, and PIM support
• Advanced Features: Automatic device discovery, batch configuration and firmware upgrade, intelligent network monitoring, abnormal event warnings, unified configuration, reboot scheduling, ISP features including Ethernet Link OAM and DLDP, DDM, and sFlow
• VLAN: Supports up to 4K VLAN groups (802.1q), MAC VLAN entries, multicast VLAN, management VLAN, QinQ, GVRP, protocol VLAN, voice VLAN, and private VLAN
• Omada App: Supported with Omada Hardware, Cloud-Based, or Software Controller
• Centralized Management: Compatible with Omada Cloud-Based Controller (built-in version 5.15.22+), Hardware Controller (5.15.20+), and Software Controller (5.15.20+)
• Cloud Access: Supported via Omada controllers
• Zero-Touch Provisioning: Supported with Omada Cloud-Based Controller
• Management Features: Web GUI, CLI via console/telnet, SNMP v1/v2c/v3, RMON, DHCP/BOOTP client, LLDP/LLDP-MED, dual image/configuration, CPU monitoring, cable diagnostics, password recovery, SNTP, system log, IEEE 802.3az Energy Efficient Ethernet
• Package Content: SG6654X switch, 2 power cords, RJ45 console cable, locking straps, rackmount kit, rubber feet, quick installation guide
• System Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/10/11, Mac OS, NetWare, UNIX, Linux
• Environment: Operating temperature -5°C to 50°C (23°F to 122°F) at 300m; reduced max temperature at higher altitudes; storage temperature -40°C to 70°C (-40°F to 158°F); operating humidity 10–90% RH non-condensing; storage humidity 5–90% RH non-condensing

Source: TP-Link official page
