TP-Link UH9120C USB Type-C 9-in-1 Hub with 4K@60Hz HDMI, 1Gbps Ethernet, 100W PD

Overview

The TP-Link UH9120C is a versatile USB Type-C 9-in-1 hub designed to expand your device’s connectivity. It features a 4K@60Hz HDMI port for high-resolution video output, a 1 Gbps Ethernet port for stable wired internet connection, and supports SD and microSD UHS-I cards for fast data transfer. The hub also includes 100W Power Delivery to keep your devices charged, along with multiple USB ports including one USB-C data port and three USB-A data ports, making it ideal for both work and entertainment setups.

Technical Specifications

• Connector: 1*USB Type-C
• Number of Ports: 9
• Video Interface: 1*HDMI 4K@60Hz
• Ethernet Interface: 1*RJ45 1Gbps
• SD Interface: UHS-I, up to 104MB/s
• microSD Interface: UHS-I, up to 104MB/s
• Power Delivery Interface: 1*PD 100W

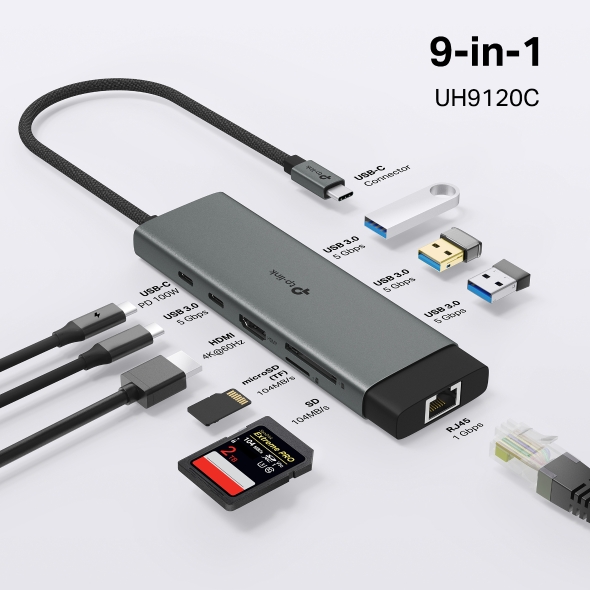

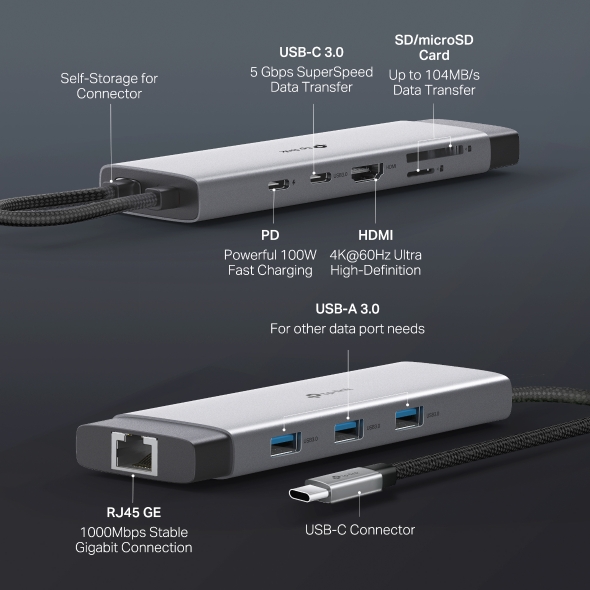

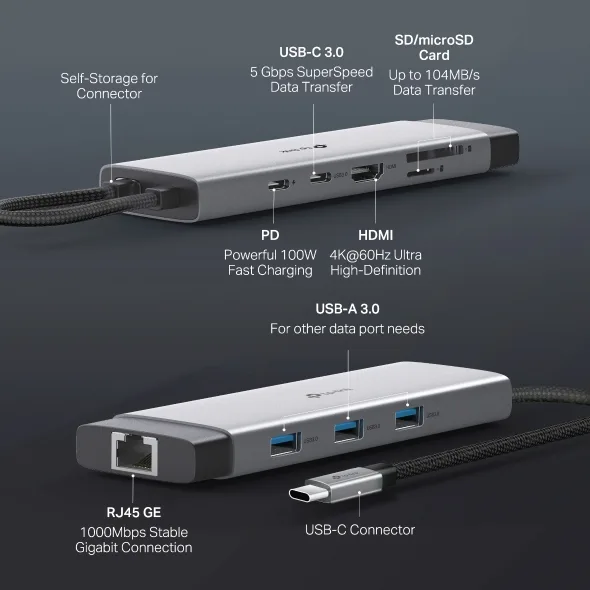

• USB Interface: 1*USB Type-C 5Gbps, 3*USB Type-A 5Gbps
• Supported Systems: Mac OS X 10.9 and later, Windows (7 and later), Linux OS, iPad OS, iOS, Android, and Chrome OS.
• Certifications: CE, FCC, RoHS, HDMI, BSMI
• Environment: Operating Temperature: 0°C~40°C (32°F~104°F), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing
• Case: Aluminum Alloy Case
• Cable: 180mm Braided Cable
• Dimensions (W×D×H): 5.52×1.69×0.56in (140.2×43×14.3mm)
• Package Content: UH9120C Quick Installation Guide

Source: TP-Link official page
