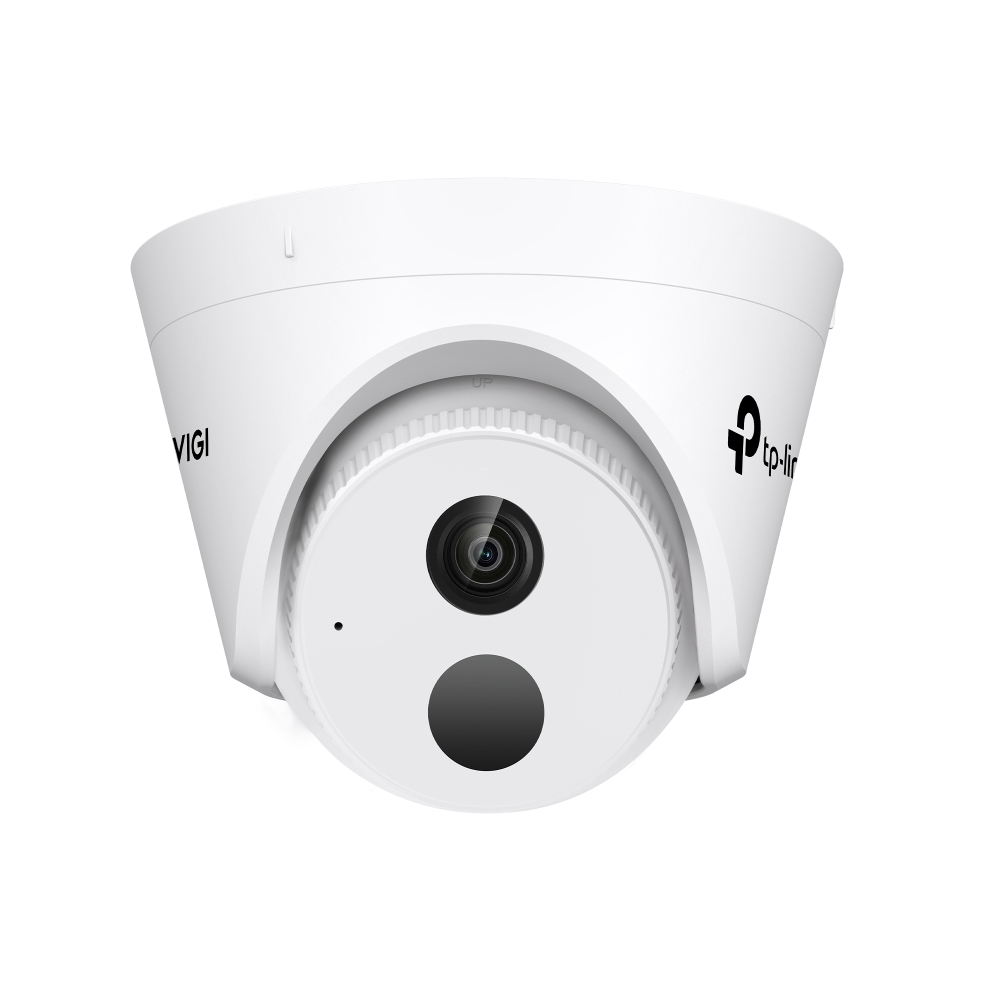

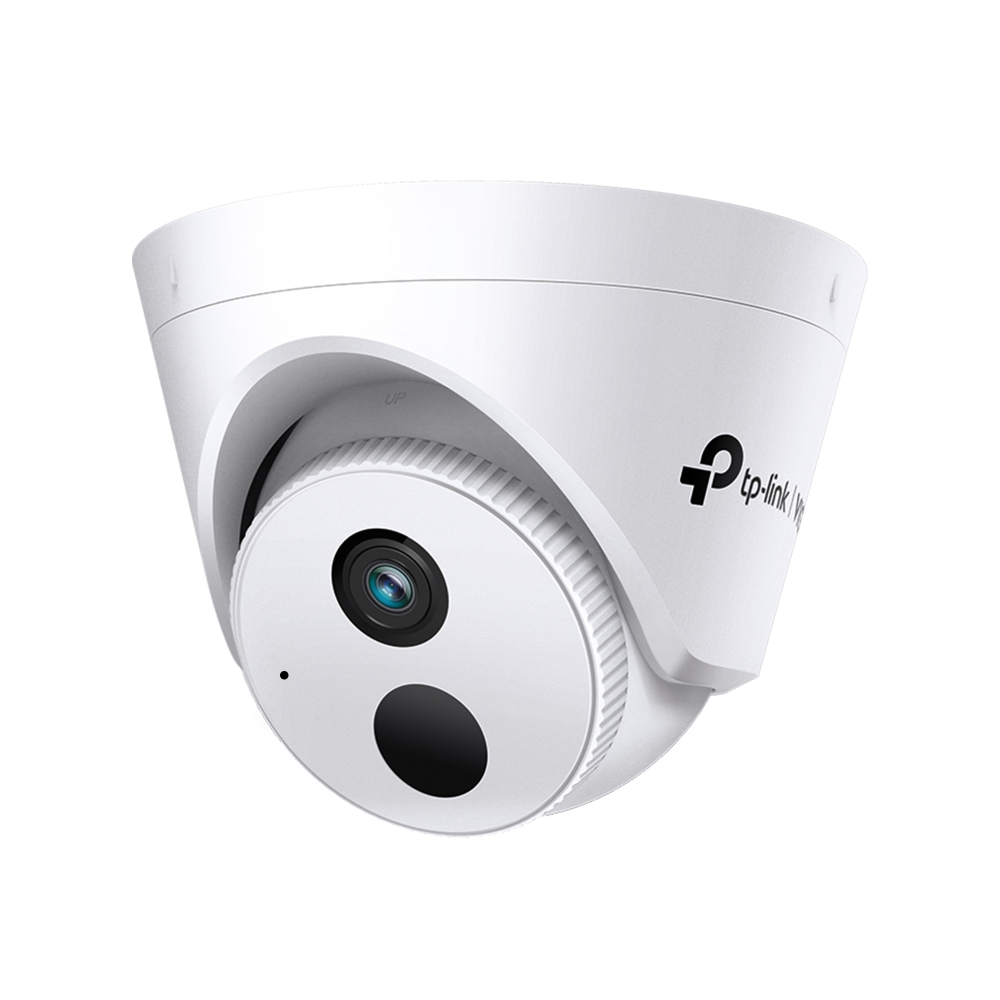

VIGI C420I 2MP IR Turret Network Camera with 2.8mm Lens

Overview

The VIGI C420I is a 2MP IR turret network camera designed to enhance security for your business environment. Featuring a 1/3” Progressive Scan CMOS sensor and a fixed 2.8mm focal length lens, it delivers clear 1080p resolution video with excellent image quality. The camera supports infrared illumination with a range of up to 30 meters, enabling effective night surveillance. It includes a built-in microphone that records audio within a 5-meter radius, providing additional situational awareness.

This model supports advanced video compression standards including H.265+ and H.264+, optimizing bandwidth and storage efficiency. The camera is powered via PoE (802.3af/at), simplifying installation by allowing power and data transmission over a single Ethernet cable. It operates reliably in harsh environments with temperatures ranging from -30°C to 60°C and humidity up to 95% non-condensing.

Integration is seamless with multiple client options such as the VIGI App, Web UI, VIGI VMS, and cloud-based VIGI Cloud VMS. The camera supports a wide range of smart event detections including intrusion, line-crossing, and abnormal sound detection, enhancing security monitoring capabilities.

Technical Specifications

• Image Sensor: 1/3” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Minimum Illumination: Color: 0.01 Lux; 0 Lux with IR Light
• Lens: Fixed focal length 2.8 mm, Aperture F2.2
• Field of View (FOV): Horizontal 88.2°, Vertical 48.7°, Diagonal 106.5°
• IR LED: 1 LED, 850nm wavelength, 30m range
• Video Resolution: Max 1920 × 1080 (Full HD)
• Video Compression: Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
• Frame Rate: Up to 30fps at 1080p (depending on settings)
• Audio: Built-in microphone, 8KHz sampling rate, 64 Kbps (G.711 alaw)
• Network Interface: 1 RJ45 10/100M Ethernet port with PoE
• Power Supply: PoE 802.3af/at, class 0, Max. 5.5 W
• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Operating Humidity: 95% or less (non-condensing)
• Dimensions (L×W×H): 4.8 × 3.3 × 4.8 in (123 × 83 × 123 mm)
• Weight: Net 0.19 Kg, Gross 0.34 Kg
• Certifications: CE, NTRA, VCCI, BSMI
• Smart Events: Intrusion Detection, Line-Crossing Detection, Region Entering/Exiting, Object Abandoned/Removal, Abnormal Sound, People and Vehicle Detection
• Basic Events: Motion Detection with Human & Vehicle Classification, Video Tampering, Illegal Login Exception
• Compatibility: VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
• Web Browser Support: Google Chrome® 57+, Firefox® 52+, Safari® 11+, Microsoft® Edge 91+
• Package Contents: VIGI Network Camera, Quick Start Guide, Mounting Accessories
• Source: TP-Link official page
• Datasheet & Support Downloads
