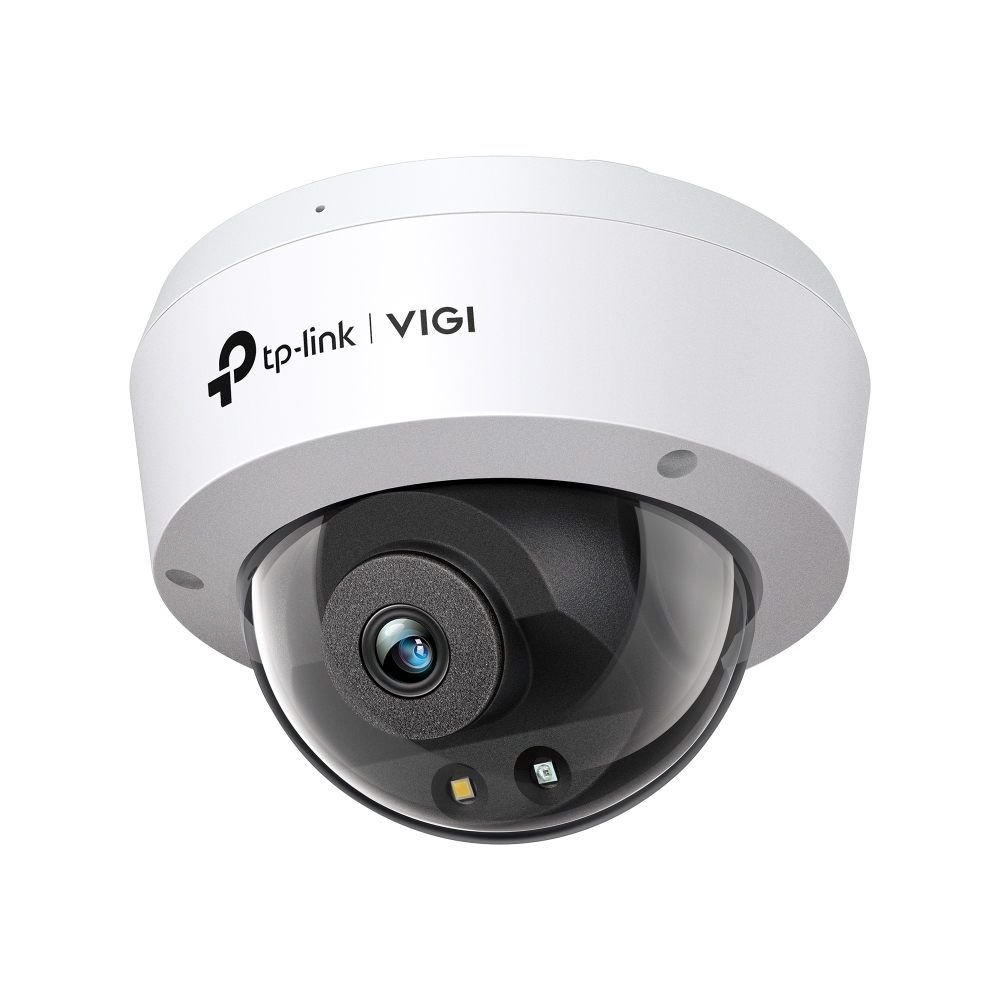

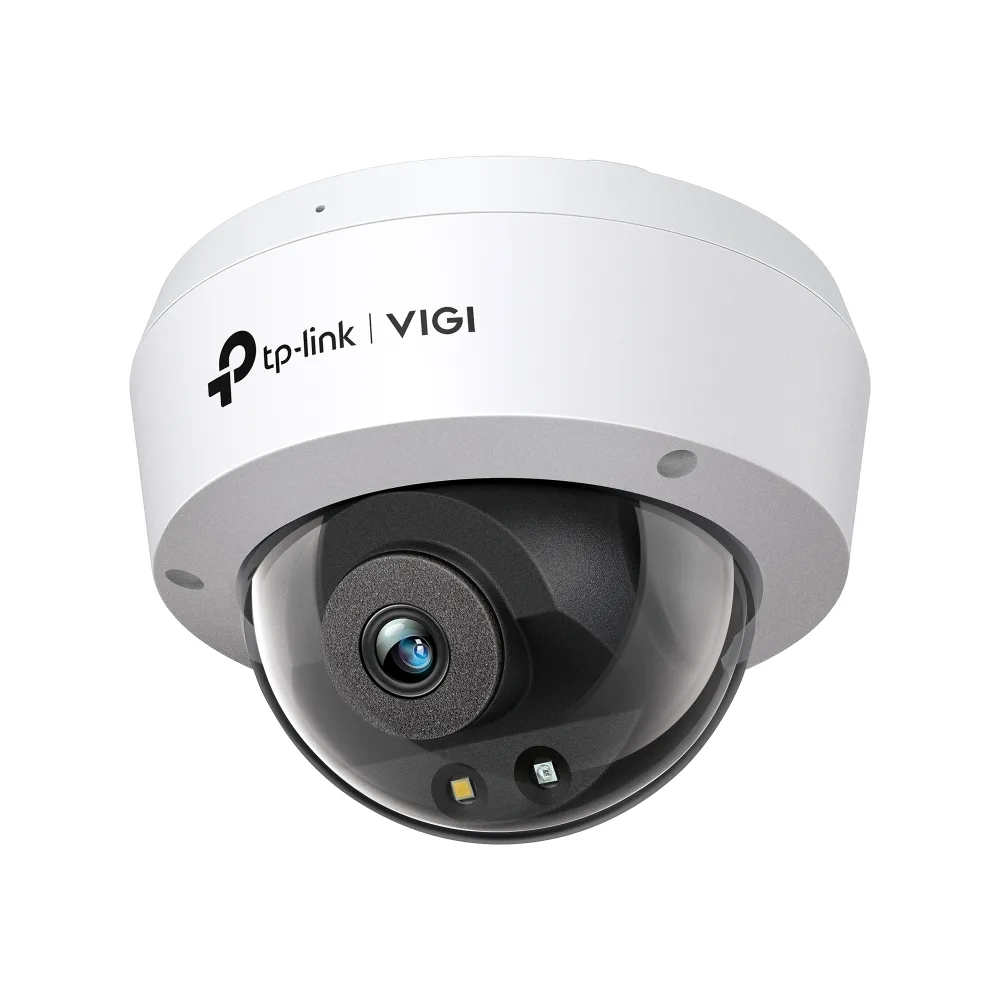

VIGI C230 3MP Full-Color Dome Network Camera with 2.8mm Lens

Overview

The VIGI C230 is a 3MP full-color dome network camera designed to enhance security for your business environment. Featuring a 1/2.8” Progressive Scan CMOS sensor and a fixed 2.8 mm focal length lens, it delivers clear and detailed video footage with a maximum resolution of 2304 × 1296 pixels. The camera supports advanced video compression standards including H.265+ and H.264+, optimizing bandwidth and storage efficiency.

Equipped with both IR and white LEDs, the camera provides excellent illumination for low-light conditions, ensuring full-color imaging even at night. Its built-in microphone captures audio within a 16.4-ft (5 m) radius, adding an extra layer of situational awareness. The device is robustly built with IP67 waterproof and IK10 vandal-proof ratings, making it suitable for various indoor and outdoor installations.

Power options include a 12V DC input or Power over Ethernet (PoE) compliant with 802.3af/at standards, simplifying installation and reducing cable clutter. The camera supports multiple smart event detections such as intrusion, line-crossing, and object abandonment, enhancing proactive security monitoring.

Technical Specifications

• Image Sensor: 1/2.8” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Minimum Illumination: Color 0.005 Lux; 0 Lux with IR/White Light
• Day/Night Mechanism: IR Cut Filter
• Lens: Fixed Focal Length, 2.8 mm, Aperture F1.64
• Field of View (FOV): Horizontal 107.5°, Vertical 57.2°, Diagonal 128.7°
• DORI Distance (2.8 mm): Detect 52 m, Observe 22 m, Recognize 10 m, Identify 5 m
• IR LED: 1 unit, 30 m range, 850 nm wavelength
• White LED: 1 unit, 30 m range
• Max Resolution: 2304 × 1296
• Video Compression: Main Stream H.265+/H.265/H.264+/H.264; Sub-Stream H.265/H.264
• Frame Rate: Up to 25fps at max resolution (20fps if rotated 90° or 270°)
• Audio: Built-in Microphone, 8KHz sampling, 64 Kbps (G.711 alaw), environment noise filtering
• Network Interface: 1 RJ45 10/100M Ethernet port with PoE
• Power Supply: 12V DC ±5%, Max 4.7 W (5.5mm coaxial plug); PoE 802.3af/at, class 0, Max 5.5 W
• Protection: IP67 waterproof, IK10 vandal proof
• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Operating Humidity: 95% or less (non-condensing)
• Dimensions: 4.5 × 3.4 × 4.5 in (115 × 86 × 115 mm)
• Weight: Net 0.29 Kg, Gross 0.47 Kg
• Certifications: CE, NTRA, VCCI, BSMI
• Smart Events: Intrusion, Line-Crossing, Region Entering/Exiting, Object Abandoned/Removal, Abnormal Sound, People and Vehicle Detection
• Basic Events: Motion Detection with Human & Vehicle Classification, Video Tampering, Illegal Login Exception
• Client Support: VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
• Web Browser Compatibility: Chrome 57+, Firefox 52+, Safari 11+, Edge 91+
• Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
• Package Contents: VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories
