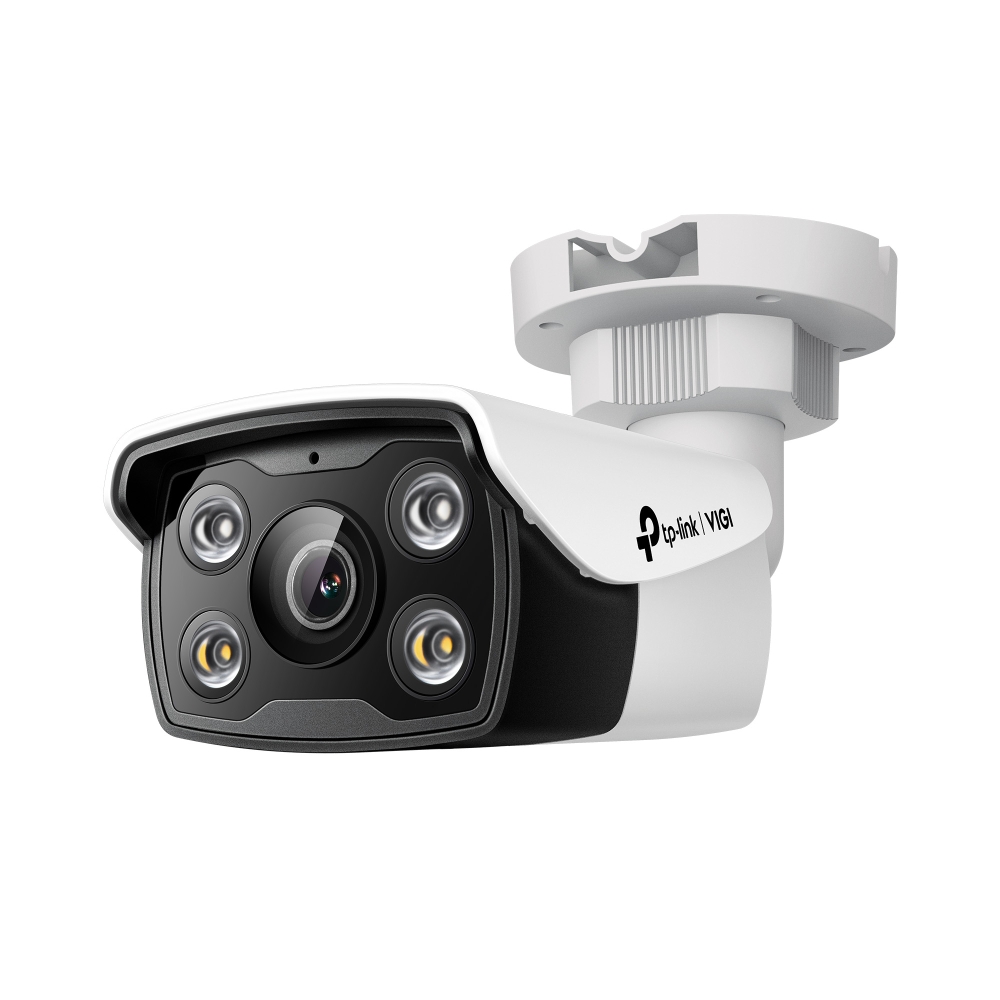

VIGI C330 3MP Outdoor Full-Color Bullet Network Camera with 1/2.8” CMOS Sensor, 2.8mm Lens

Overview

The VIGI C330 is a 3MP outdoor full-color bullet network camera designed to provide reliable surveillance for your business premises. Equipped with a 1/2.8” Progressive Scan CMOS sensor and fixed focal lens options (2.8mm, 4mm, 6mm), it delivers clear and detailed video footage with a maximum resolution of 2304 × 1296 pixels. The camera supports advanced video compression standards including H.265+ and H.264+, optimizing bandwidth and storage efficiency.

Featuring built-in infrared and white LEDs, the camera ensures excellent visibility up to 30 meters in low-light conditions. It also includes a built-in microphone capable of capturing audio within a 5-meter radius, enhancing situational awareness. The IP67 waterproof rating makes it suitable for various outdoor environments, while power options include both 12V DC and Power over Ethernet (PoE) for flexible installation.

Smart event detection capabilities such as intrusion detection, line-crossing detection, and abnormal sound detection provide proactive security alerts. The camera supports multiple client applications and web browsers, ensuring easy access and management.

Technical Specifications

• Image Sensor: 1/2.8” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Minimum Illumination: 0.005 Lux; 0 Lux with IR/White Light
• Day/Night Mechanism: IR Cut Filter

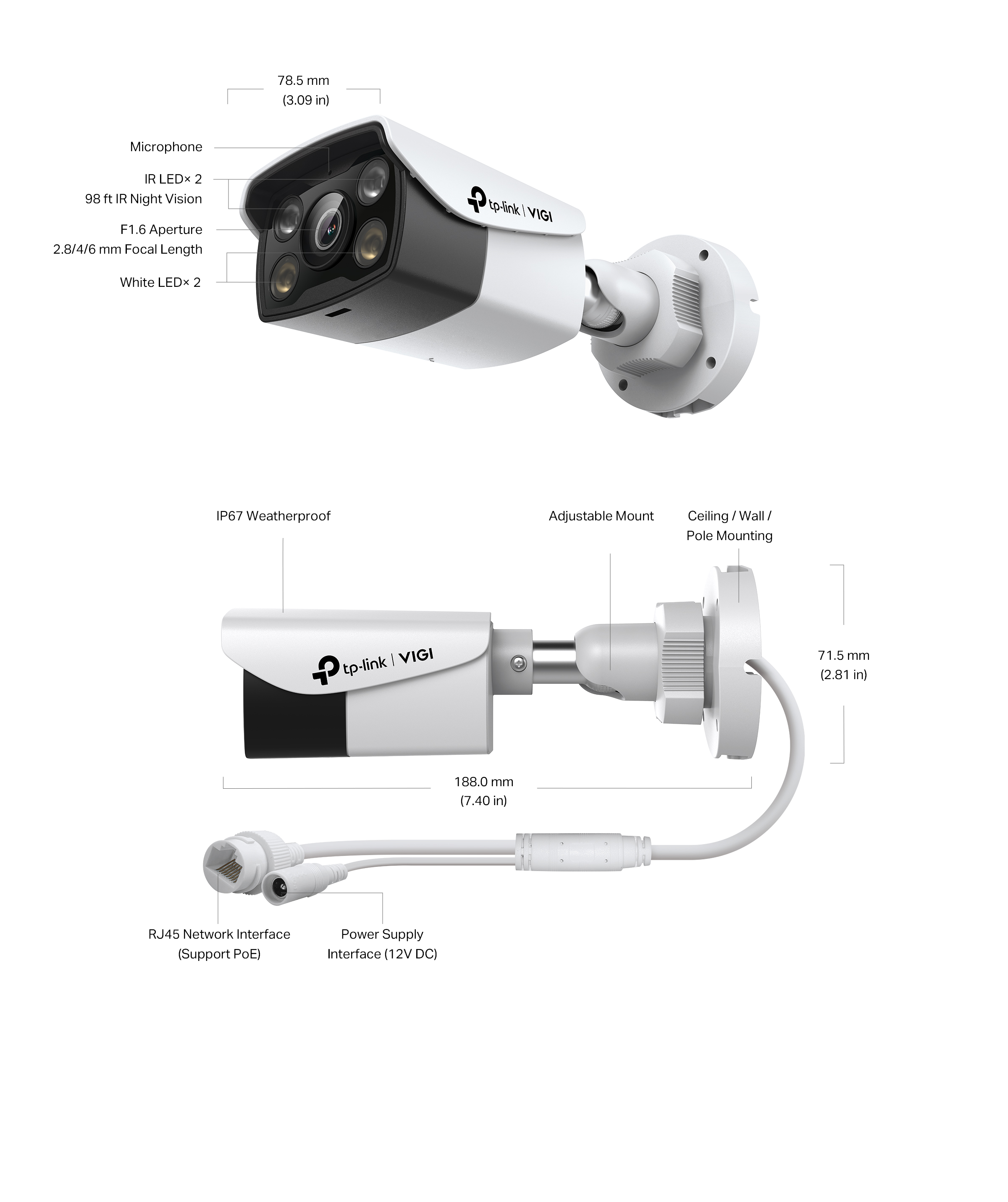

• Lens: Fixed Focal Lens, 2.8/4/6 mm, Aperture F1.6
• Field of View (FOV): 2.8 mm: 107.5° H, 57.2° V; 4 mm: 84.4° H, 44.3° V; 6 mm: 55.1° H, 30.2° V
• DORI Distance: Detect up to 100 m depending on lens
• IR LED: 2 LEDs, 30 m range, 850 nm wavelength
• White LED: 2 LEDs, 30 m range
• Max. Resolution: 2304 × 1296
• Video Compression: H.265+/H.265/H.264+/H.264
• Frame Rate: Up to 25fps at max resolution
• Audio: Built-in microphone, 8KHz sampling rate, 64 Kbps (G.711 alaw)
• Network Interface: 1 RJ45 10/100M Ethernet port, PoE supported
• Power Supply: 12V DC ± 5%, Max 5.5W; PoE 802.3af/at, Max 6W
• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Protection: IP67 waterproof
• Dimensions: 3.1 × 7.4 × 2.8 in (78.5 × 188.0 × 71.5 mm)
• Weight: Net 0.32 Kg, Gross 0.48 Kg
• Certifications: CE, NTRA, VCCI, BSMI
• Smart Events: Intrusion, Line-Crossing, Region Entering/Exiting, Object Abandoned/Removal, Abnormal Sound, People and Vehicle Detection
• Basic Events: Motion Detection with Human & Vehicle Classification, Video Tampering, Illegal Login Exception
• Client Support: VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
• Web Browser Compatibility: Google Chrome® 57+, Firefox® 52+, Safari® 11+, Microsoft® Edge 91+
• Package Contents: VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories
• Material: Plastic

Source: TP-Link official page
