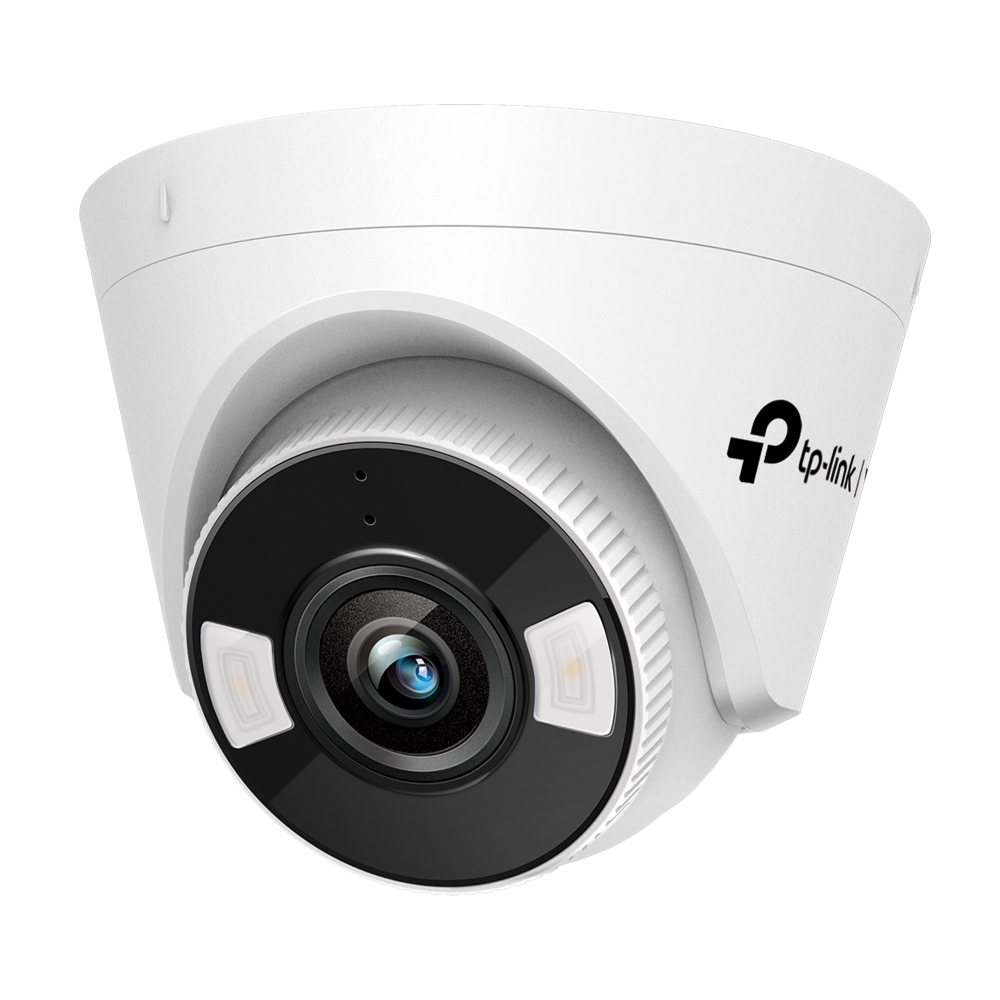

VIGI C440 4MP Full-Color Turret Network Camera with 1/3” CMOS Sensor, 4mm Lens

Overview

The VIGI C440 is a 4MP full-color turret network camera designed to provide 24-hour colorful surveillance for your business or property. Equipped with a 1/3” Progressive Scan CMOS sensor and a fixed 4mm lens, it delivers high-resolution video with a maximum resolution of 2560 x 1440 pixels. The camera features advanced illumination with dual IR LEDs and white LEDs, enabling clear imaging even in low-light or no-light conditions. It supports two-way audio communication through its built-in microphone and speaker, enhancing security monitoring capabilities.

With flexible power options including PoE and DC power, the VIGI C440 is easy to install in various environments. It offers smart event detection such as area intrusion, line-crossing, and people detection, along with basic events like motion detection and video tampering alerts. The camera supports multiple video compression standards including H.265+ for efficient bandwidth usage and storage. Its rugged design allows operation in temperatures ranging from -30 °C to 60 °C, making it suitable for diverse climates.

Technical Specifications

• Image Sensor: 1/3” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Minimum Illumination: 0.005 Lux; 0 Lux with IR/White Light
• Lens: Fixed Focal Length 4 mm, Aperture F1.6
• Field of View (FOV): Horizontal 79°, Vertical 43°, Diagonal 93°
• DORI Distance (4 mm lens): Detect 80 m (262 ft), Observe 33 m (109 ft), Recognize 16 m (52 ft), Identify 8 m (26 ft)
• IR LEDs: 2 LEDs, 30 m range, 850 nm wavelength
• White LEDs: 2 LEDs, 30 m range
• Video Resolution: Up to 2560 x 1440
• Video Compression: H.265+/H.265/H.264+/H.264
• Frame Rates: Main Stream up to 30fps at 60Hz; Sub-Stream up to 30fps
• Audio: Two-way audio with built-in microphone and speaker; 8KHz sampling rate
• Network Interface: 1 RJ45 10/100M Ethernet port with PoE support
• Storage: Built-in MicroSD card slot supporting up to 256 GB
• Power Supply: 12V DC ±5%, Max 7W; PoE 802.3af/at, class 0, Max 8W
• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Operating Humidity: 95% or less (non-condensing)
• Dimensions: 4.8 × 3.3 × 4.8 in (123 × 83 × 123 mm)
• Weight: Net 0.25 Kg, Gross 0.4 Kg
• Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
• Smart Features: Area Intrusion Detection, Line-Crossing Detection, People Detection
• Basic Events: Motion Detection, Video Tampering Detection, Illegal Login Exception
• Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
• Compatibility: ONVIF Profile S, supports multiple web browsers including Chrome, Firefox, Safari, Edge
• Package Contents: VIGI Network Camera, Quick Start Guide, Mounting Accessories

Source: TP-Link official page
