TP-Link Omada Hardware Controller OC200 with 2 Ethernet Ports and USB, Centralized Network Management

Description

Overview

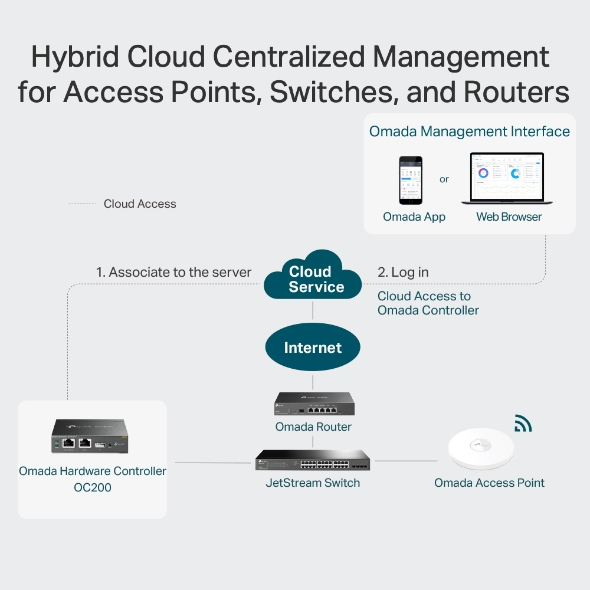

The TP-Link Omada Hardware Controller OC200 enables centralized management of your entire network infrastructure, including access points, switches, and routers, without the need for a dedicated PC or server. It integrates seamlessly with Omada Cloud SDN, providing cloud access and multi-site management capabilities for efficient network control.

Designed for business environments, the OC200 supports automatic device discovery, batch configuration, firmware upgrades, intelligent network monitoring, and abnormal event warnings. This ensures your network remains optimized and secure with minimal manual intervention.

Technical Specifications

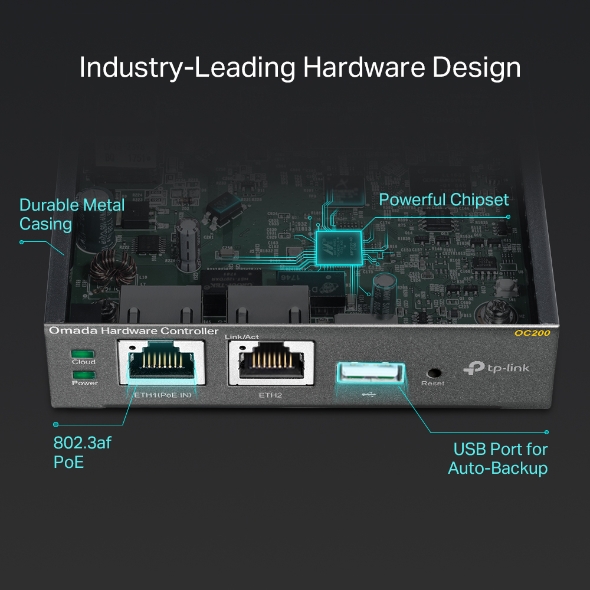

• Interface: 2× 10/100 Mbps Ethernet ports, 1× USB 2.0 port, 1× Micro USB port
• Power Supply: 802.3af/at PoE or Micro USB (DC 5V/Minimum 1A)
• Dimensions (W x D x H): 3.9×3.9×1.0 in (100×98×25 mm)
• Omada App: Yes
• Centralized Management Capacity: Up to 100 Omada access points, 10 Omada routers, and a maximum of 20 Omada switches; supports up to 2 certain DeltaStream GPON OLTs (note: switch support decreases by 5 per GPON OLT added)
• Cloud Access: Yes
• L3 Management: Yes
• Multi-site Management: Yes
• Management Features: Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Configuration
• Certification: CE, FCC, RoHS
• Package Content: Omada Hardware Controller OC200, Quick Installation Guide, Ethernet Cable
• System Requirements: Microsoft® Windows® 10, 8, 7, Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
• Environment: Operating Temperature: 0–40 °C (32–104 °F); Storage Temperature: -40–70 °C (-40–158 °F); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link official page
