Description
Overview

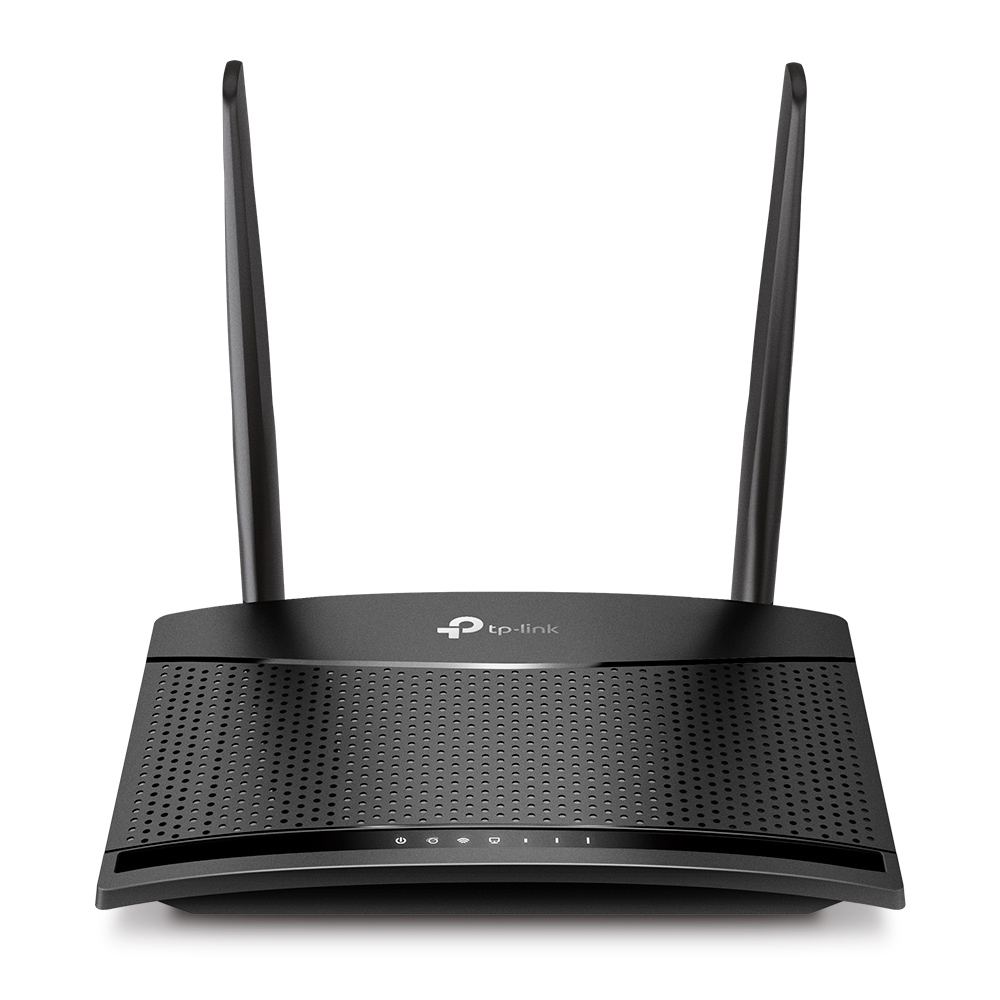

The TP-Link TL-MR100 is a 4G LTE router delivering wireless speeds up to 300 Mbps on the 2.4 GHz band. It allows you to share your internet connection with up to 32 devices, ideal for bandwidth-intensive tasks such as streaming and gaming. The router supports multiple 4G LTE bands and includes a Nano SIM card slot for easy mobile broadband access. For wired connections, it features one 10/100 Mbps LAN port and one LAN/WAN port. Dual detachable external antennas enhance signal reception and stability. The device also supports WAN failover to maintain uninterrupted internet connectivity.
Technical Specifications
- Model: TL-MR100
- Wireless Standards: IEEE 802.11b/g/n
- Frequency: 2.4 GHz
- Signal Rate: Up to 300 Mbps
- Interfaces: 1 x 10/100 Mbps LAN Port, 1 x 10/100 Mbps LAN/WAN Port, 1 x Nano SIM Card Slot, 2 x External SMA-F Antenna Interfaces
- Antennas: 2 Detachable External 4G LTE Antennas
- Buttons: WPS/Reset Button
- Power Supply: 9V/0.85A (EU)
- Dimensions (W x D x H): 6.06 x 4.49 x 1.42 inches (154 x 114 x 36 mm)
- Network Type: 4G FDD-LTE Bands B1/B3/B5/B7/B8/B20/B28; TDD-LTE Bands B38/B40/B41; 3G HSPA/UMTS Bands B1/B5/B8
- Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
- Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
- WAN Failover: Supported
- Operating Modes: 3G/4G Router, Wireless Router
- WAN Types: Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access)
- Management Features: Local and Remote Management
- DHCP: Server, Client List, Address Reservation
- Port Forwarding: ALG, Virtual Server, Port Triggering, UPnP, DMZ
- Dynamic DNS: DynDns, NO-IP
- Protocols: IPv4, IPv6
- Guest Network: 2.4 GHz Guest Network
- Security: IPv4 SPI Firewall, IP and MAC Address Binding
- Certification: CE, RoHS
- Package Contents: TL-MR100 Router, 1.5m Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
- System Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux; Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-enabled browsers; Nano SIM Card
- Operating Environment: Temperature 0°C~40°C (32°F~104°F), Humidity 10%~90% non-condensing
- Storage Environment: Temperature -40°C~70°C (-40°F~158°F), Humidity 5%~90% non-condensing
