Description
Overview

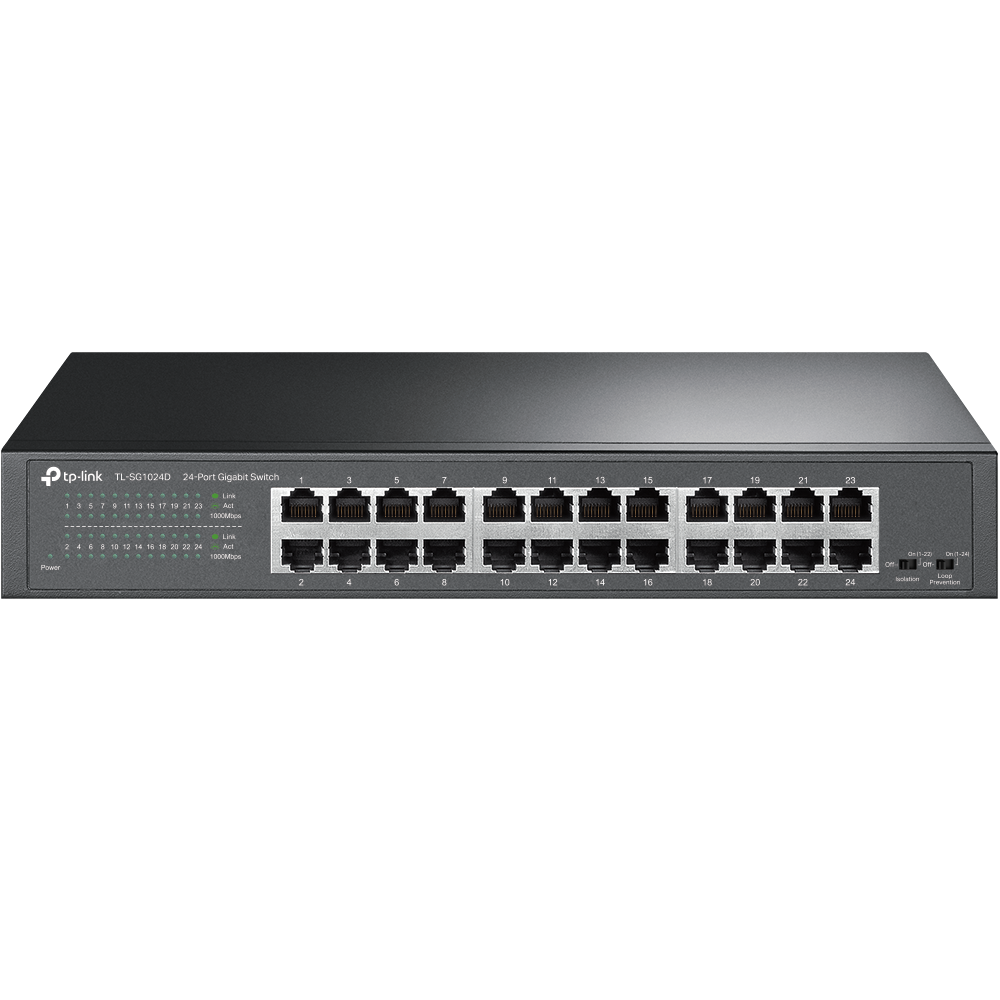

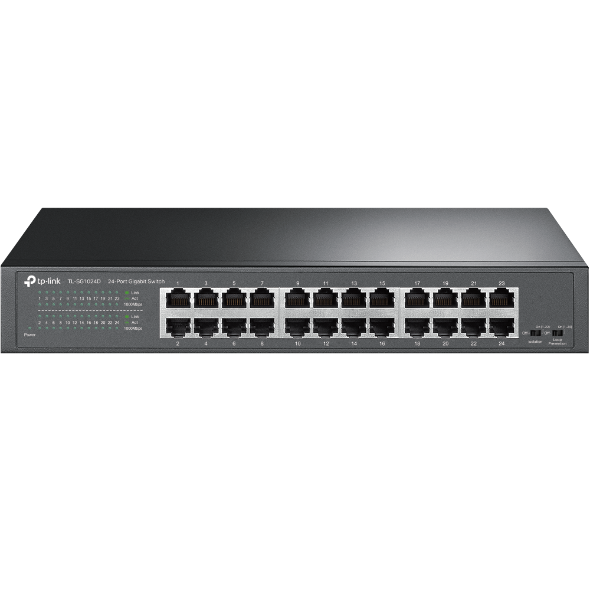

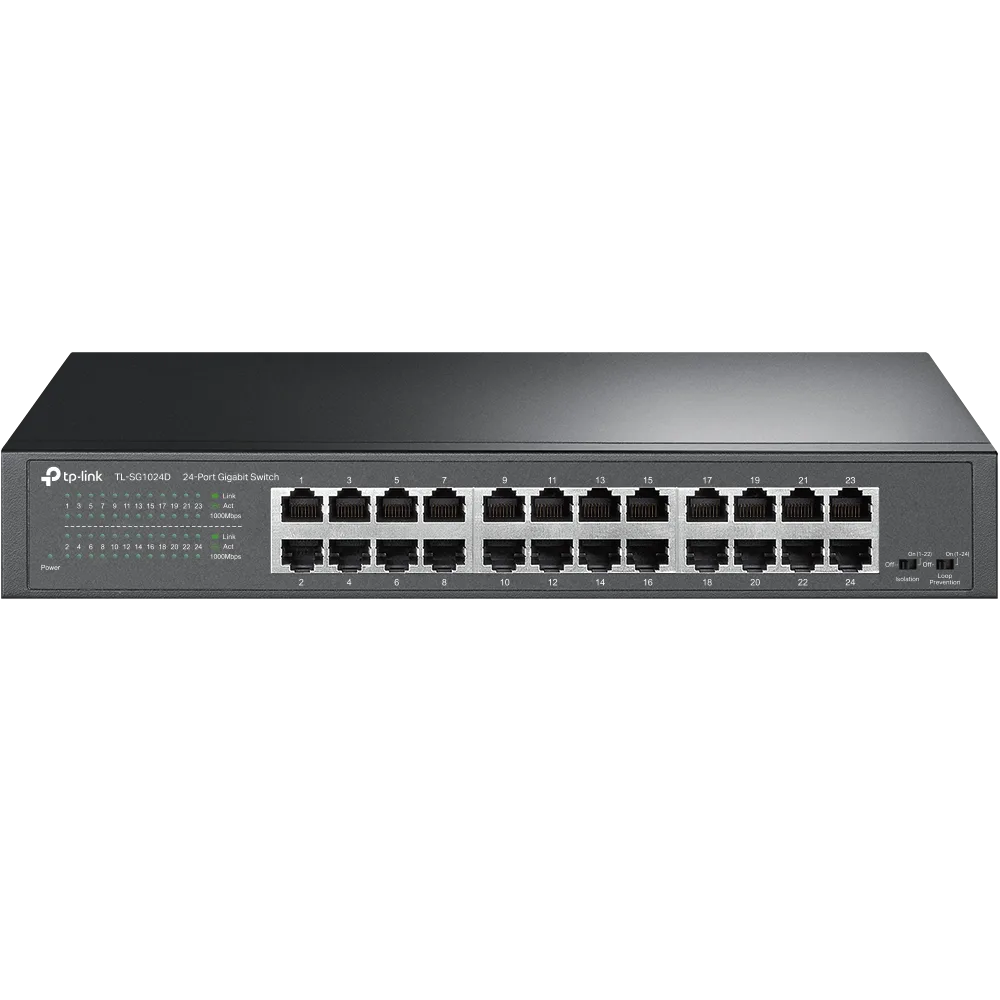

The TP-Link TL-SG1024D is a 24-port Gigabit Ethernet switch designed for desktop or rackmount use, providing reliable and high-speed network connectivity. It supports auto-negotiation and Auto MDI/MDIX on all ports, simplifying setup and ensuring optimal performance. The fanless design ensures quiet operation, making it suitable for office environments.
With a switching capacity of 48Gbps and a packet forwarding rate of 35.7 million packets per second, this switch efficiently handles heavy network traffic. It also features advanced functions such as isolation mode and loop prevention to enhance network stability and security.
Technical Specifications
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
- Interface: 24 x 10/100/1000Mbps RJ45 ports (Auto Negotiation/Auto MDI/MDIX)
- Network Media: 10BASE-T: UTP category 3, 4, 5 cable (max 100m); 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (max 100m)
- Fan Quantity: Fanless
- Physical Security Lock: No
- Power Supply: 100-240VAC, 50/60Hz
- Dimensions (W x D x H): 11.6 Ã 5.5 Ã 1.7 in (294 Ã 140 Ã 44 mm)
- Mounting: Rack mountable
- Max. Power Consumption: 13.62W (220V/50Hz)
- Max Heat Dissipation: 46.44 BTU/h
- Switching Capacity: 48 Gbps
- Packet Forwarding Rate: 35.7 Mpps
- MAC Address Table: 8K
- Advanced Features: Isolation Mode (Ports 1-22), Loop Prevention (Ports 1-24)
- Jumbo Frame: 10 KB
- Green Technology: Yes
- Transmission Method: Store-and-Forward
- Certification: FCC, CE, RoHS
- Package Content: 24-Port Gigabit Desktop/Rackmount Switch, Power Cord, Installation Guide, Rackmount Kits, Rubber Feet
- Environment: Operating Temperature: 0°C~40°C (32°F~104°F); Storage Temperature: -40°C~70°C (-40°F~158°F); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
Source: TP-Link official page
