Description
Overview

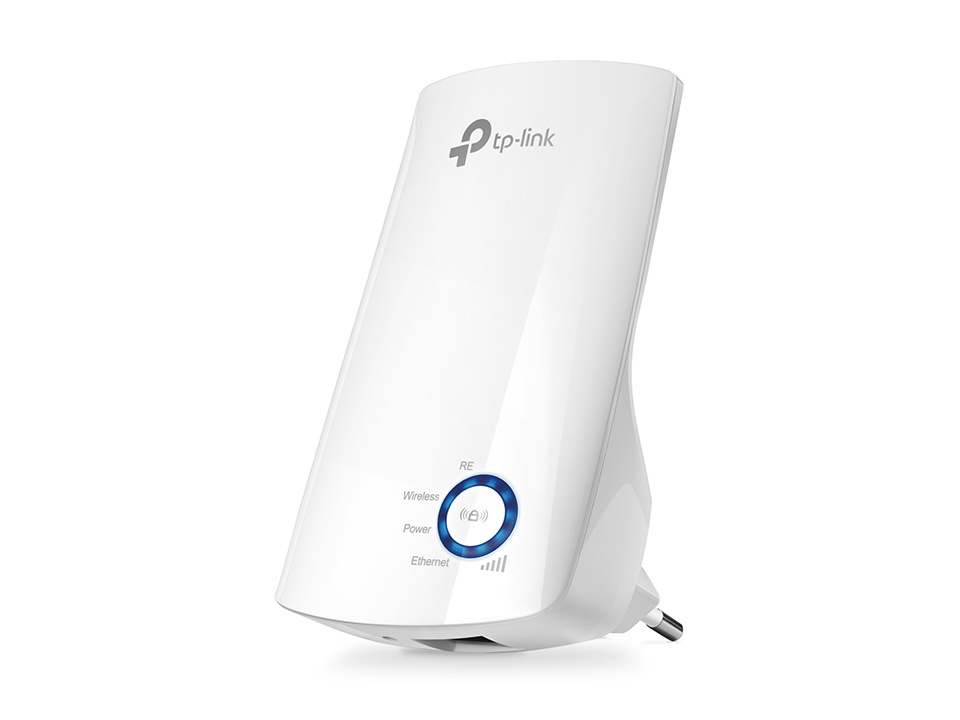

The TP-Link TL-WA850RE is a 300Mbps Universal Wi-Fi Range Extender designed to amplify your existing wireless signal, extending coverage to areas where your router’s signal is weak or unreachable. Operating on the 2.4GHz frequency band with Wireless N technology, it ensures reliable and stable Wi-Fi connectivity throughout your home or office. The device also features a convenient Ethernet port to connect wired devices, and supports both Range Extender and Access Point modes for versatile network expansion.
Installation is straightforward with the WPS button for quick pairing and LED indicators to help find the optimal placement. Its compact design with internal antennas blends seamlessly into any environment while delivering enhanced wireless performance.
Technical Specifications
- Model: TL-WA850RE
- Wireless Standards: IEEE 802.11n, 802.11g, 802.11b
- Frequency: 2.4~2.4835 GHz
- Signal Rate: Up to 300Mbps (11n), 54Mbps (11g), 11Mbps (11b)
- Interface: 1 x 10/100Mbps Ethernet Port (RJ45)
- Buttons: WPS Button, Reset Button
- Antennas: 2 Internal Antennas
- Transmission Power: < 20 dBm (EIRP)
- Plug Types Available: EU, UK, US
- Power Input: 100-240V~50/60Hz
- Max Power Consumption: About 3W
- Dimensions (W x D x H): 4.3 x 2.6 x 3.0 in. (110.0 x 65.8 x 75.2 mm)
- Wireless Security: 64/128/152-bit WEP, WPA-PSK, WPA2-PSK
- Working Modes: Range Extender, Access Point
- Reception Sensitivity: <-68dBm at various data rates (270M, 130M, 108M, 54M, 11M, 6M, 1M)
- Network Services: Web management (HTTP/HTTPS), DHCP Server, App management
- Certification: CE, RoHS
- System Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/10, Mac OS, NetWare, UNIX, Linux
- Operating Environment: Temperature 0°C~40°C, Humidity 10%~90% non-condensing
- Storage Environment: Temperature -40°C~70°C, Humidity 5%~90% non-condensing
- Package Contents: TL-WA850RE Extender, Quick Installation Guide
Source: TP-Link official page
