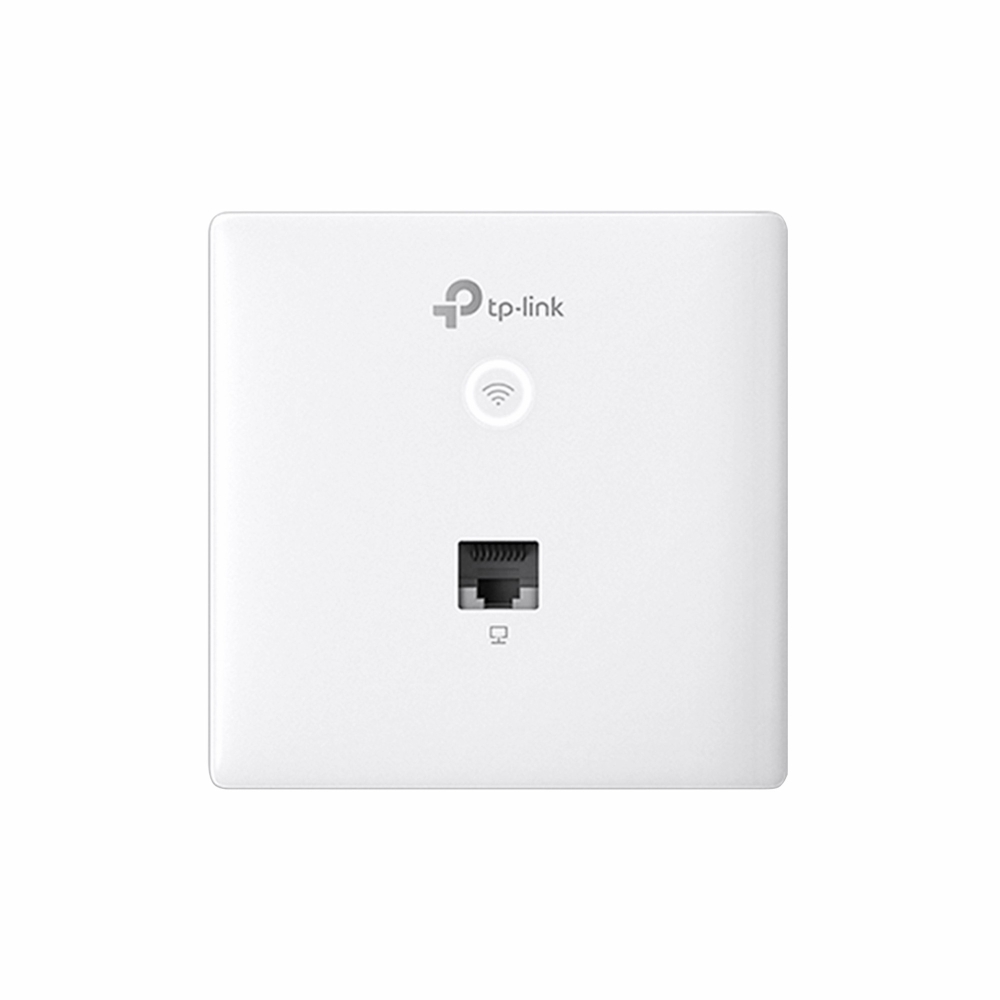

TP-Link EAP115-Wall 300Mbps Wireless N Wall-Plate Access Point

Description

Overview

The TP-Link EAP115-Wall is a 300Mbps Wireless N Wall-Plate Access Point designed to deliver a strong wireless signal and provide guests with their own private Wi-Fi network. Its wall-plate design allows for convenient installation in hotel rooms, dormitories, or offices, ensuring seamless connectivity in a compact form factor.

Technical Specifications

• Interface: Uplink: 1× 10/100 Mbps Ethernet Port; Downlink: 1× 10/100 Mbps Ethernet Port (Note: Non-Omada devices connected to the wired LAN ports will not be recognized by Omada controllers. Connect non-Omada devices to an Omada switch linked to the AP’s wired LAN ports.)
• Physical Security Lock: No
• Buttons: LED/Wi-Fi Button, RESET
• Power Supply: PoE (IEEE 802.3af)
• Max. Power Consumption: 2.8 W
• Dimensions (W x D x H): 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)
• Antenna: Internal 2× 1.8 dBi Omni
• Mounting: Wall Mounting (Screws included)
• Hardware Watch Dog: Yes
• Coverage: 25㎡ (300 ft²)
• Concurrent Clients: 100+
• Wireless Standards: IEEE 802.11n/g/b
• Frequency: 2.4 GHz
• Signal Rate: 11n: Up to 300 Mbps (dynamic); 11g: Up to 54 Mbps (dynamic); 11b: Up to 11 Mbps (dynamic)
• Wireless Functions: Multiple SSIDs (up to 8), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control, QoS (WMM), Seamless Roaming (802.11r), Load Balance, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
• Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Local LAN port based VLAN, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
• Transmission Power: CE: ≤20 dBm (2.4 GHz)
• Omada App Support: Yes
• Centralized Management: Omada Hardware Controller, Omada Software Controller
• Cloud Access: Yes (requires Omada controller)
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c
• System Logging: Local/Remote Syslog
• SSH: Yes
• Web-based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-site Management: Yes
• Management VLAN: Yes
• Certification: CE, RoHS
• Package Content: 300 Mbps Wireless N Wall-Plate Access Point EAP115-Wall, Installation Guide, Mounting Screw
• System Requirements: Microsoft Windows XP, Vista, 7, 8, 10, 11; Linux
• Environment: Operating Temperature: 0–40 °C (32–104 °F); Storage Temperature: -40–70 °C (-40–158 °F); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link official page
