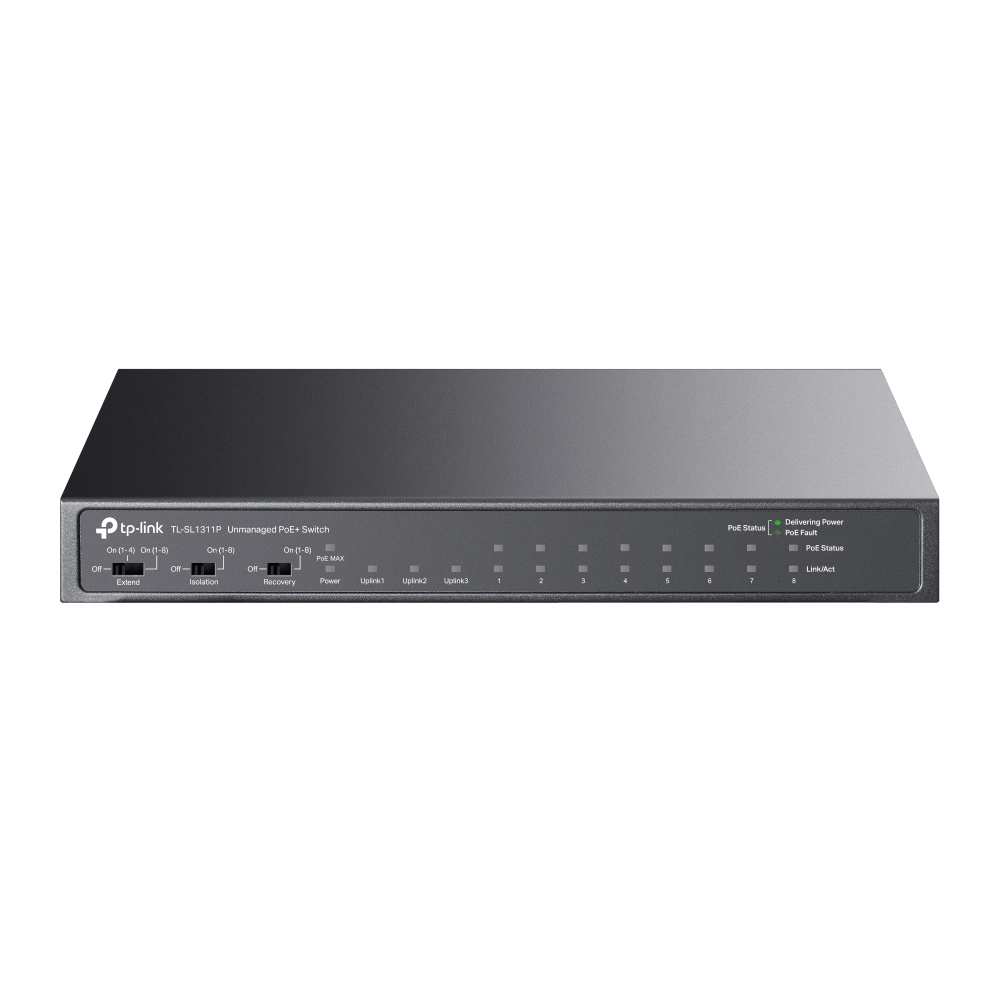

TP-Link TL-SL1311P 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+ and 65W Power Budget

Description

Overview

The TP-Link TL-SL1311P is a versatile desktop switch featuring 8 Fast Ethernet (10/100Mbps) ports with PoE+ capability and 3 Gigabit ports (2 RJ45 and 1 SFP). Designed for easy plug-and-play deployment, it supports Power over Ethernet transmission up to 250 meters, making it ideal for surveillance applications in offices, dormitories, and small businesses. With a total PoE power budget of 65 watts, the switch efficiently powers connected devices while maintaining reliable network performance.

Its fanless design ensures silent operation, and the inclusion of a physical security lock adds an extra layer of protection. The switch supports advanced features such as extend mode for longer PoE transmission, isolation mode, and PoE auto recovery, enhancing network stability and management.

Technical Specifications

• Interface: 8 × 10/100 Mbps 802.3af/at PoE+ ports, 2 × Gigabit RJ45 ports, 1 × Gigabit SFP port; supports AUTO Negotiation and AUTO MDI/MDIX
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (max 100m); EIA/TIA-568 100Ω STP (max 100m); 100BASE-TX: UTP category 5, 5e cable (max 100m); EIA/TIA-568 100Ω STP (max 100m)
• Fan Quantity: Fanless
• Physical Security Lock: Yes
• External Power Supply: External Power Adapter (Output: 53.5 VDC / 1.31 A)
• Packet Forwarding Rate: 5.6544 Mpps
• PoE Ports (RJ45): Ports 1–8 compliant with IEEE 802.3af/at; total power supply 65 W
• MAC Address Table: 2K entries
• Jumbo Frame: 16 KB
• Switching Capacity: 7.6 Gbps
• Dimensions (W × D × H): 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
• Max. Power Consumption: 5.61 W (220 V/50 Hz, no PD connected); 77.32 W (110 V/50 Hz, with 65 W PD connected)
• Max Heat Dissipation: 19.13 BTU/h (no PD connected); 263.7 BTU/h (with 65 W PD connected)
• Advanced Features: Compatible with IEEE 802.3af/at PDs; Extend Mode Button (Ports 1–4 and 1–8, up to 250 m PoE power and data transmission); Isolation Mode Button (Ports 1–8); PoE Auto Recovery Button (Ports 1–8); MAC Address Auto-Learning and Auto-Aging; IEEE802.3x Flow Control for Full-Duplex and Backpressure for Half-Duplex
• Transmission Method: Store-And-Forward
• Certification: FCC, CE, RoHS
• Package Content: TL-SL1311P switch, Power Adapter, Installation Guide
• Environment: Operating Temperature: 0–40 °C (32–104 °F); Storage Temperature: -40–70 °C (-40–158 °F); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link official page
