Description
Overview

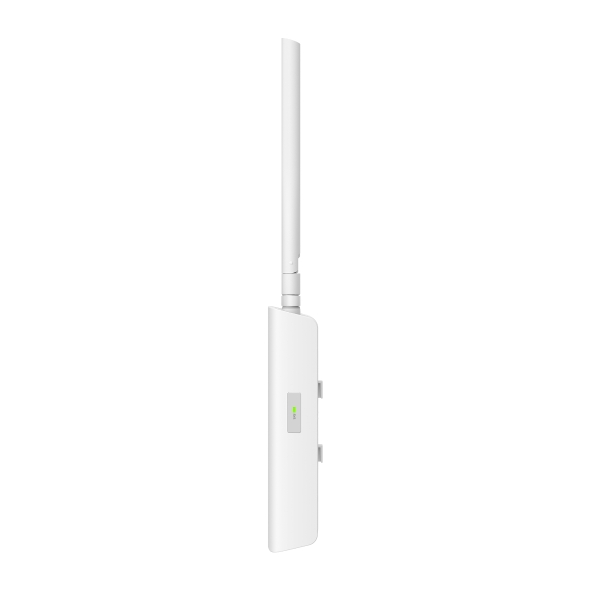

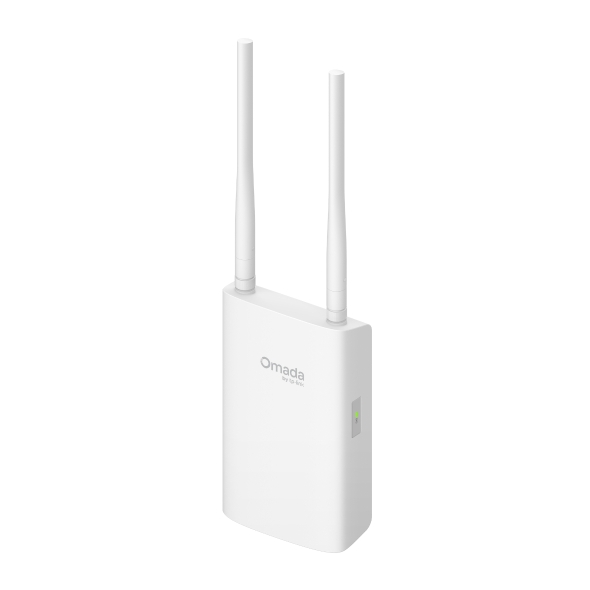

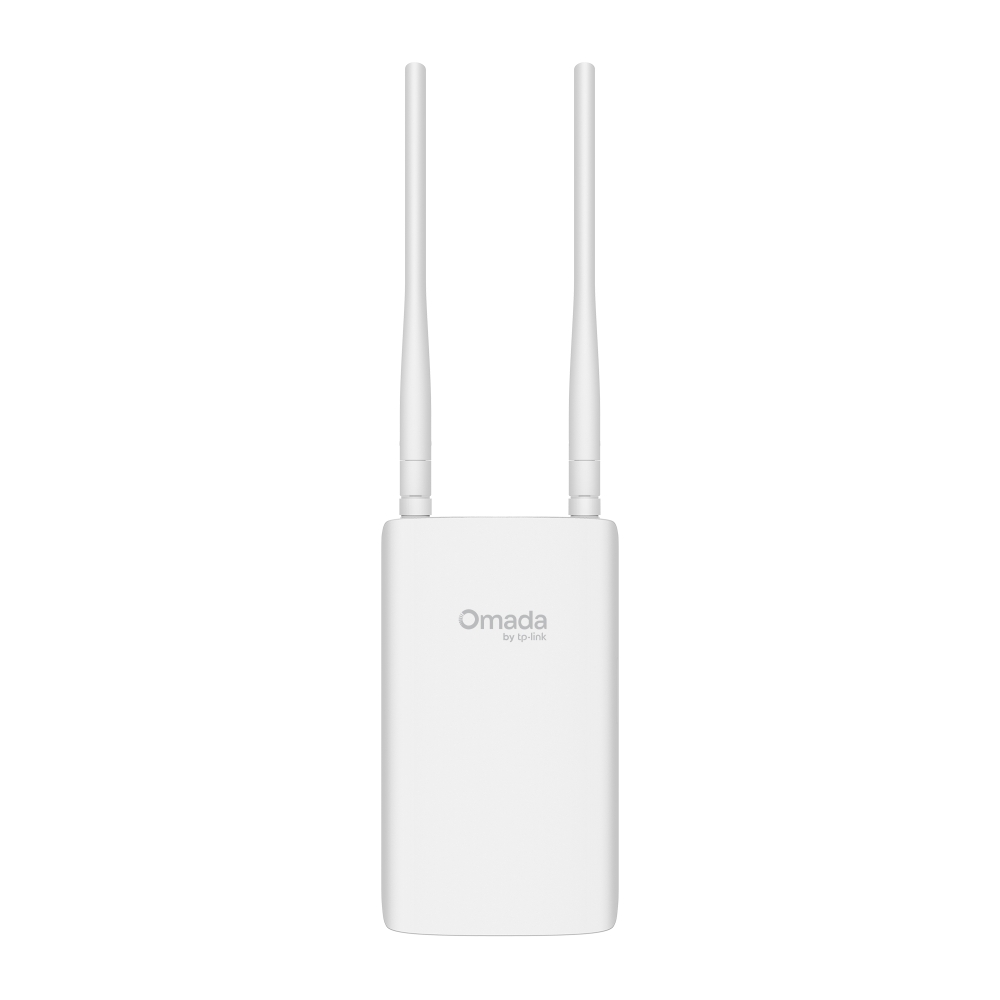

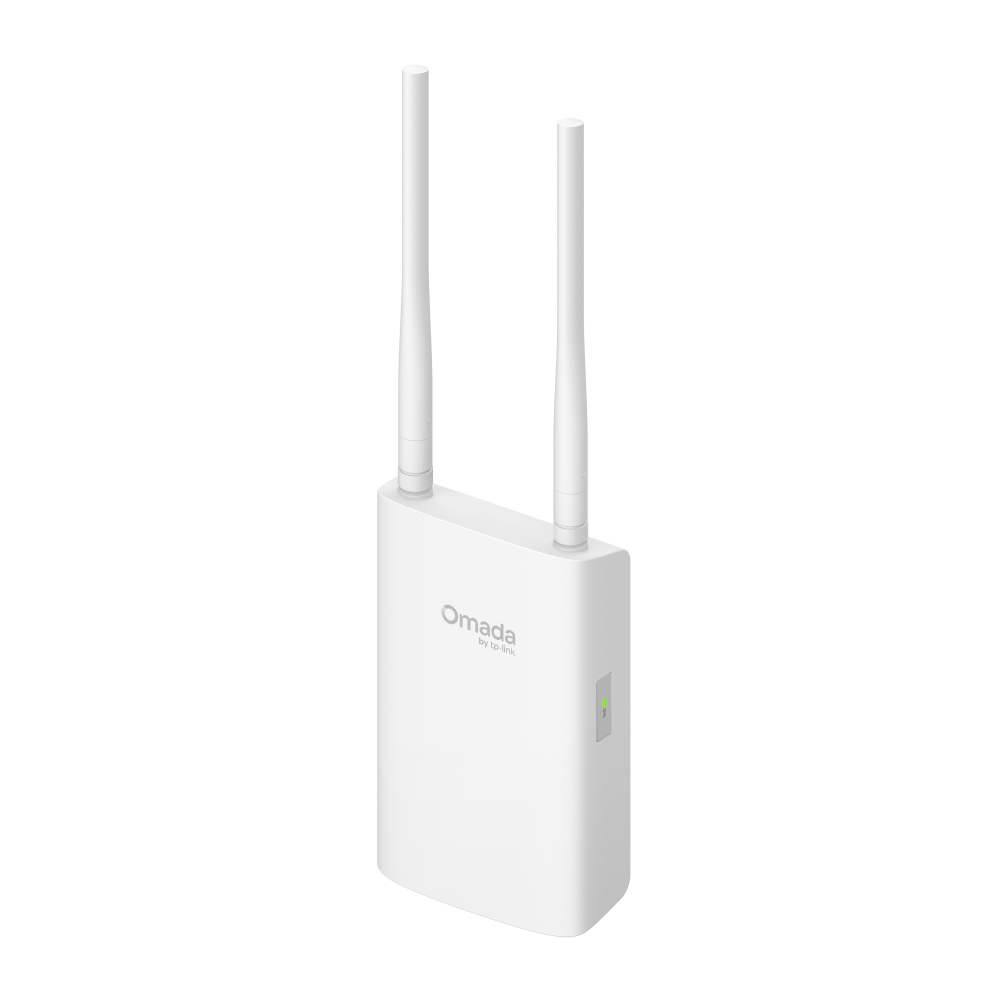

The TP-Link EAP603-Outdoor is an AX1800 Wi-Fi 6 access point designed for both indoor and outdoor environments such as swimming pools, cafes, and amusement parks. It delivers combined wireless speeds up to 1.8 Gbps across dual bands (2.4 GHz and 5 GHz), ensuring reliable and fast connectivity in challenging outdoor conditions. The device features a weatherproof enclosure rated IP66 for wall mounting and IP65 for pole mounting, making it durable against harsh weather elements. It supports Power over Ethernet (PoE) for flexible deployment and includes Bluetooth capabilities for IoT applications.
Technical Specifications
- Model: EAP603-Outdoor
- Wireless Standard: IEEE 802.11a/n/ac/ax (5 GHz), IEEE 802.11b/g/n/ax (2.4 GHz)
- Maximum Speed: 2.4 GHz up to 573 Mbps, 5 GHz up to 1201 Mbps

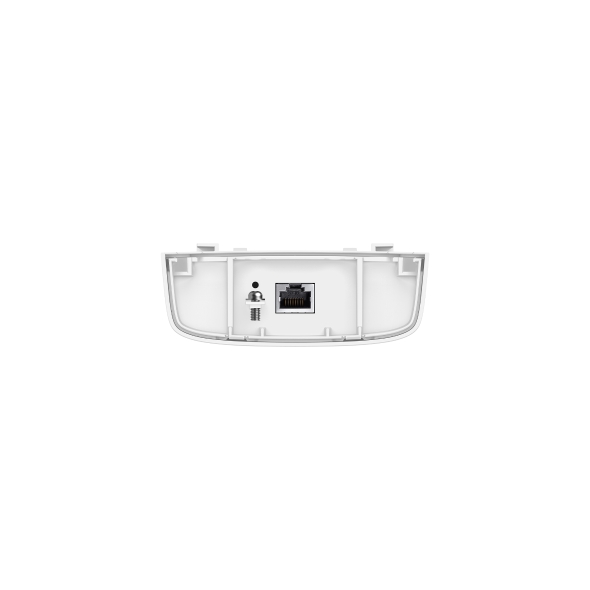

- Interface: 1Ã 10/100/1000 Mbps Gigabit Ethernet port (RJ45) with PoE in, 1Ã Grounding Terminal
- Power Supply: 802.3at PoE, 48V Passive PoE (adapter included for dry indoor use only)
- Max Power Consumption: 15.8 W (802.3at PoE+), Idle mode 4.8 W
- Antenna: 2Ã 4 dBi external omnidirectional antennas (2.4 GHz), 2Ã 5 dBi external omnidirectional antennas (5 GHz), 1Ã 4 dBi internal Bluetooth antenna
- Coverage: Up to 200 m (2,150 ft) on 2.4 GHz, up to 300 m (3,200 ft) on 5 GHz
- Weatherproof Rating: IP66 for wall mount, IP65 for pole mount

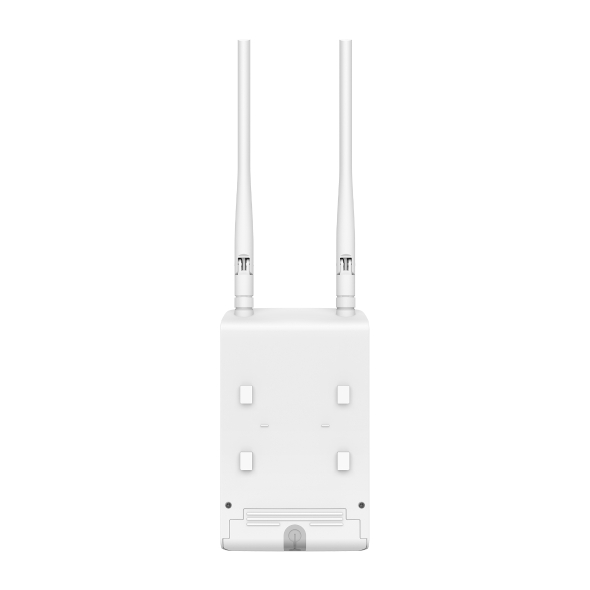

- Mounting: Pole mount and wall mount kits included
- Management: Omada Hardware Controller, Omada Software Controller, Omada Central (Cloud-Based), Omada App
- Additional Features: Reset button, LED ON/OFF control, centralized management, SNMP v1/v2c/v3, SSH, web-based management, email alerts
- Operating Environment: Temperature -30°C to 70°C (-22°F to 158°F), Humidity 10%â90% non-condensing
- Certification: CE, FCC, RoHS
- Package Contents: EAP603-Outdoor unit, Passive PoE adapter, Power cord, Installation guide, Mounting kit
Source: TP-Link official page
