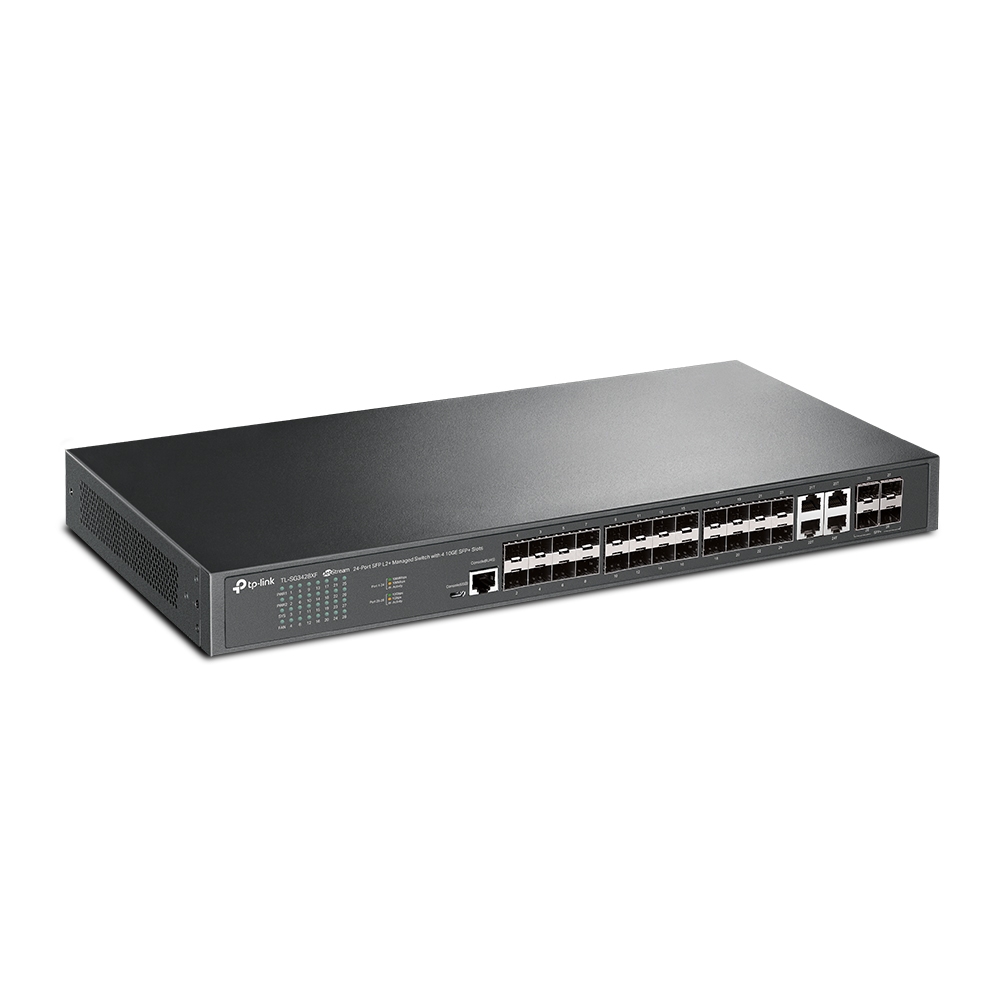

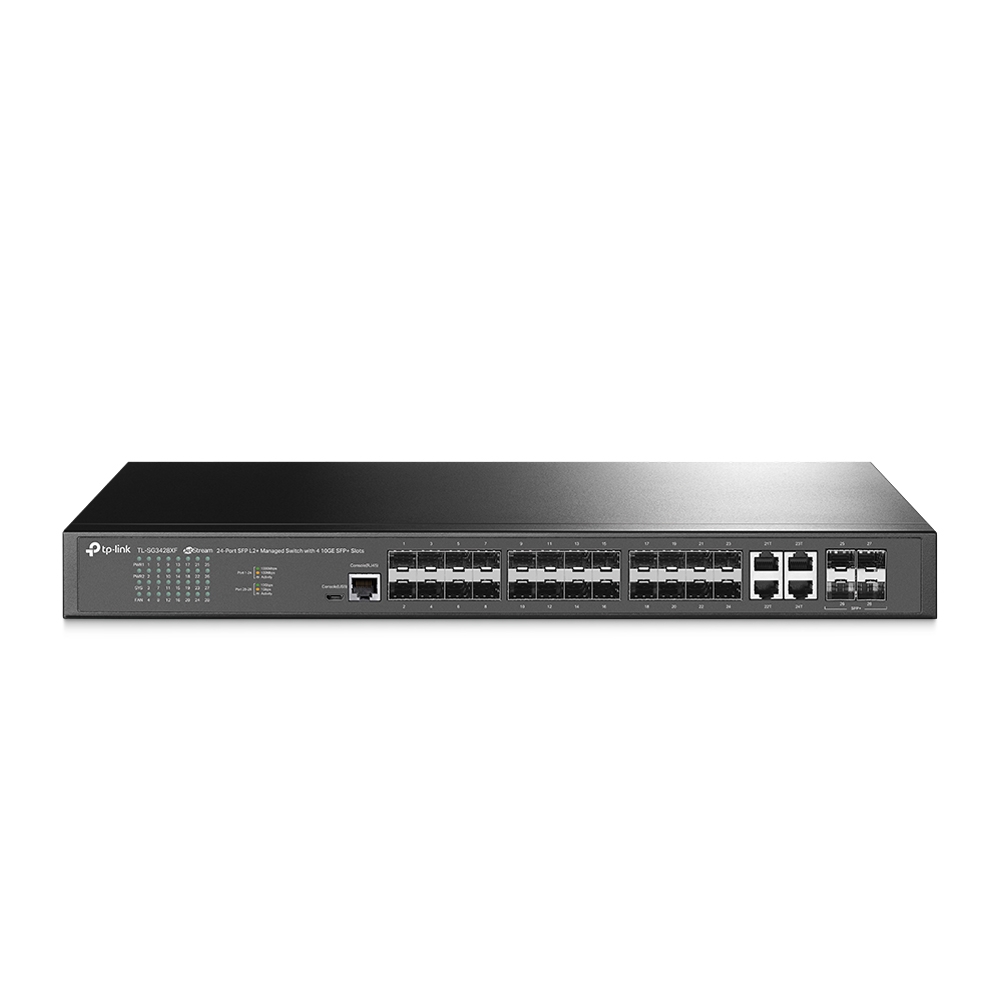

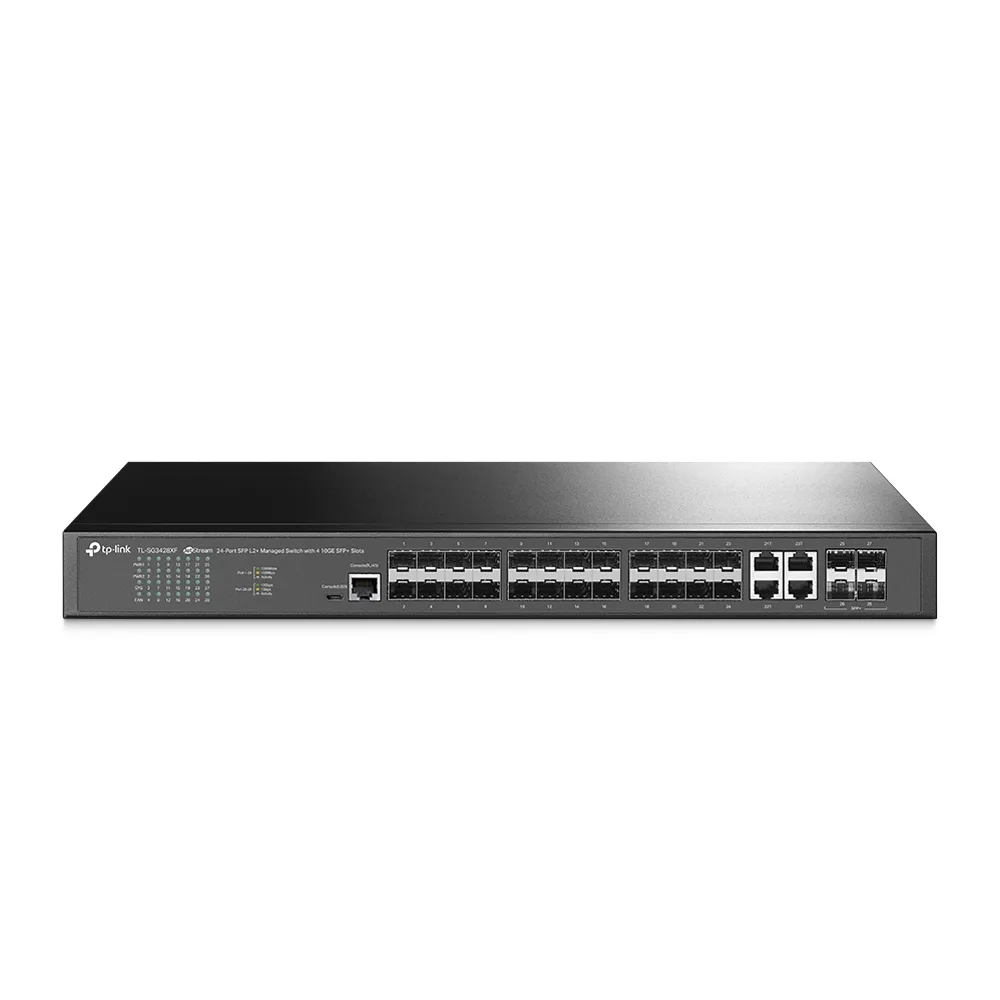

TP-Link JetStream TL-SG3428XF 24-Port SFP L2+ Managed Switch with 4 x 10GE SFP+ Slots

Description

Overview

The TP-Link JetStream TL-SG3428XF is a high-performance 24-port SFP Layer 2+ managed switch featuring 4 10 Gigabit Ethernet SFP+ slots. Designed for seamless integration into the Omada Software Defined Networking (SDN) platform, this switch enables remote and centralized management anytime and anywhere, making it ideal for enterprise network environments requiring robust and scalable connectivity.

Technical Specifications

• Interface: 20× Gigabit SFP Ports, 4× Gigabit SFP/RJ45 Combo Ports, 4× 10G SFP+ Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port
• Fan Quantity: 1 Fan

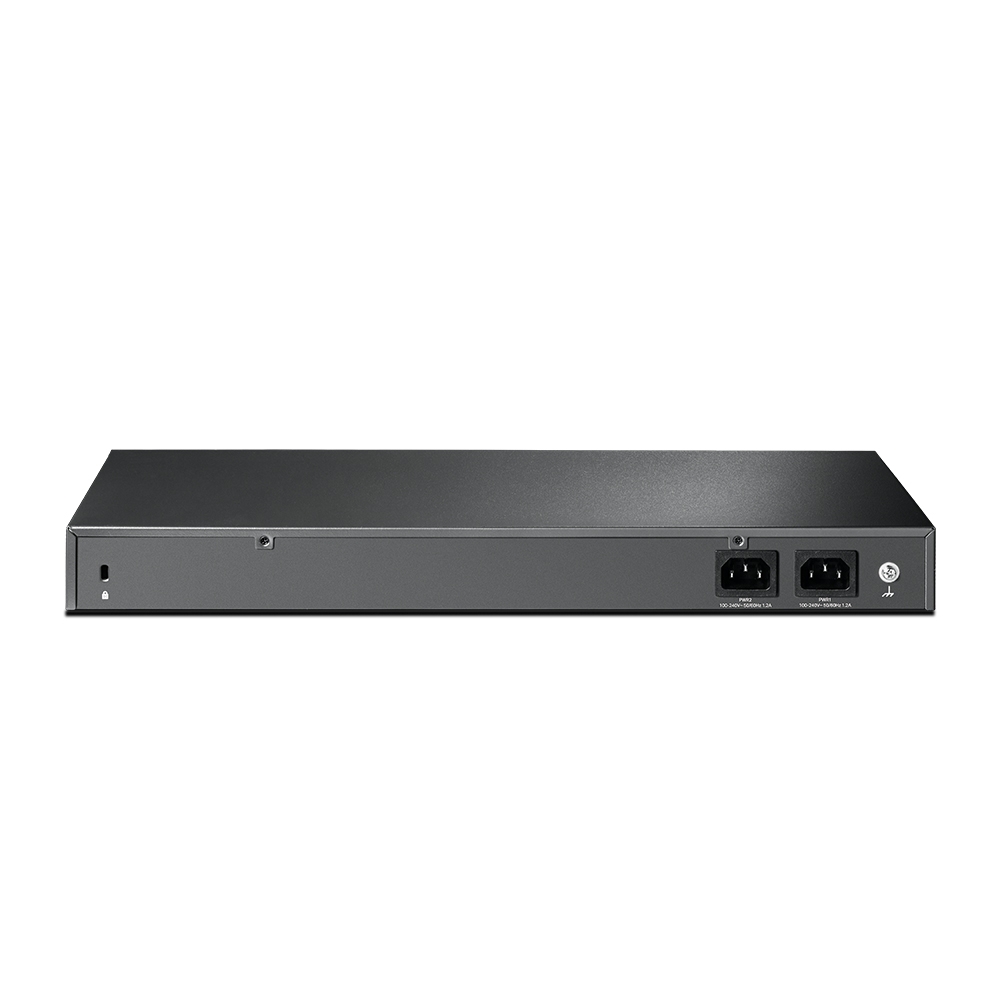

• Power Supply: Dual Redundant Power Supplies, 100-240 V AC~50/60 Hz
• Dimensions (W x D x H): 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
• Mounting: Rack Mountable
• Max. Power Consumption: 35.7 W (110 V/60 Hz)
• Max Heat Dissipation: 121.81 BTU/hr (110 V/60 Hz)
• Switching Capacity: 128 Gbps
• Packet Forwarding Rate: 95.23 Mpps
• MAC Address Table: 16 K
• Packet Buffer Memory: 12 Mbit
• Jumbo Frame: 9 KB
• Quality of Service: 8 priority queues, 802.1p CoS/DSCP priority, Queue scheduling (SP, WRR, SP+WRR), Bandwidth Control (Port/Flow based Rating Limiting), Smoother Performance, Actions for Flows (Mirror, Redirect, Rate Limit, QoS Remark)
• L3 Features: 128 IPv4/IPv6 Interfaces, Static Routing (48 static routes), Static ARP (128 entries), Proxy ARP, Gratuitous ARP, DHCP Server, DHCP Relay (Interface and VLAN), DHCP L2 Relay
• L2 and L2+ Features: Link Aggregation (static and 802.3ad LACP, up to 8 groups with 8 ports each), Spanning Tree Protocol (802.1d STP, 802.1w RSTP, 802.1s MSTP), STP Security (TC Protect, BPDU Filter, Root Protect), Loopback Detection (Port and VLAN based), Flow Control (802.3x, HOL Blocking Prevention), Mirroring (Port, CPU, One-to-One, Many-to-One, Tx/Rx/Both)
• L2 Multicast: IGMP Snooping (v1/v2/v3), Fast Leave, IGMP Snooping Querier, IGMP Authentication, MLD Snooping (v1/v2), Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast, MVR, Multicast Filtering (256 profiles, 16 entries per profile)
• Advanced Features: Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule
• VLAN: VLAN Group (max 4K VLAN groups), 802.1Q Tagged VLAN, MAC VLAN (30 entries), Protocol VLAN (16 templates, 16 VLANs), Private VLAN, GVRP, VLAN VPN (QinQ, Port-Based QinQ, Selective QinQ), Voice VLAN
• Access Control List: Time-based ACL, MAC ACL (Source/Destination MAC, VLAN ID, User Priority, Ether Type), IP ACL (Source/Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS, User Priority), Combined ACL, Packet Content ACL, IPv6 ACL, Policy (Mirroring, Redirect, Rate Limit, QoS Remark), ACL apply to Port/VLAN
• IPv6: Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 ACL, IPv6 Interface, Static IPv6 Routing, IPv6 Neighbor Discovery (ND), Path MTU Discovery, ICMPv6, TCPv6/UDPv6, IPv6 Applications (DHCPv6 Client, Ping6, Tracert6, Telnet v6, IPv6 SNMP, IPv6 SSH, IPv6 SSL, HTTP/HTTPS, IPv6 TFTP)
• MIBs: MIB II (RFC1213), Interface MIB (RFC2233), Ethernet Interface MIB (RFC1643), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RMON MIB (RFC2819), RMON2 MIB (RFC2021), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIB
• Omada App: Supported (requires OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
• Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller (OC300, OC200), Omada Software Controller
• Cloud Access: Supported (requires OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
• Zero-Touch Provisioning: Supported (requires Omada Cloud-Based Controller)
• Management Features: Web-based GUI, CLI via console port and telnet, SNMP v1/v2c/v3 (Trap/Inform), RMON (groups 1,2,3,9), SDM Template, DHCP/BOOTP Client, 802.1ab LLDP/LLDP-MED, DHCP AutoInstall, Dual Image and Configuration, CPU Monitoring, Cable Diagnostics, EEE, Password Recovery, SNTP, System Log
• Certification: CE, FCC, RoHS
• Package Content: TL-SG3428XF Switch, Power Cord, Quick Installation Guide, Rackmount Kit, Rubber Feet
• System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™, Windows 7/8/10/11, MAC® OS, NetWare®, UNIX®, or Linux
• Environment: Operating Temperature: 0–45 °C (32–113 °F); Storage Temperature: -40–70 °C (-40–158 °F); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing
