Description
Overview

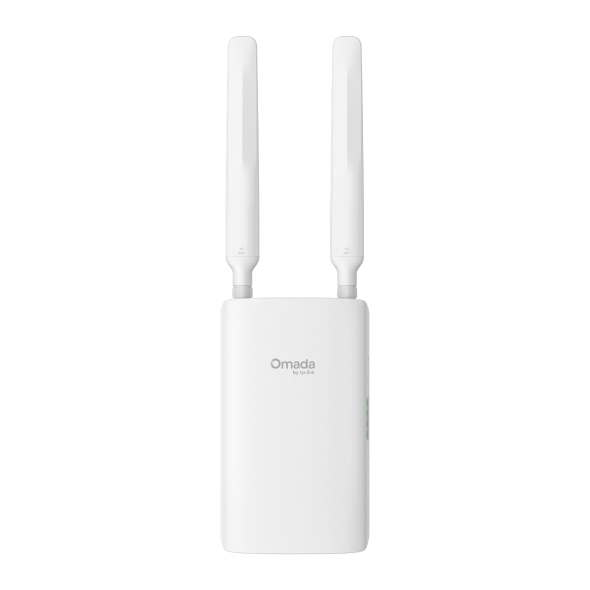

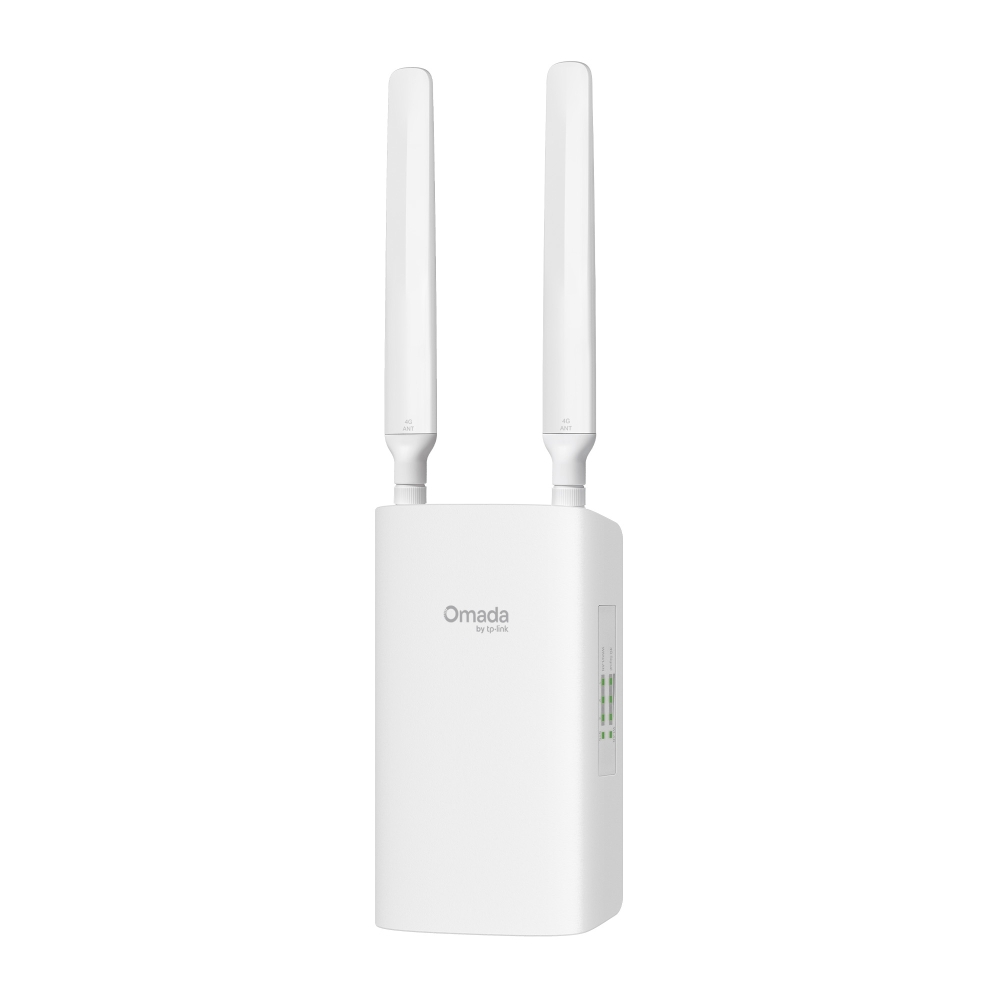

The TP-Link Omada ER703WP-4G-Outdoor is a versatile 4G+ Cat6 AX3000 Wi-Fi 6 gateway designed for both outdoor and indoor use. It supports LTE Band EU frequencies with carrier aggregation for enhanced 4G speeds up to 300 Mbps downlink and 50 Mbps uplink. Equipped with three Gigabit Ethernet WAN/LAN ports, it ensures reliable and fast wired connectivity. The device features advanced security and network management capabilities including deep packet inspection, multiple VPN protocols, and comprehensive access control.
Designed for robust performance, the ER703WP-4G-Outdoor includes 512 MB DDR4 RAM and 256 MB NAND flash memory. It supports seamless roaming, mesh networking, MU-MIMO, and beamforming technologies to optimize wireless coverage and efficiency. The gateway is suitable for various deployment scenarios with pole or wall mounting options and includes surge protection for enhanced durability.
Technical Specifications
- Network Type: LTE Band EU with 4G LTE-FDD and LTE-TDD support, 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA, Carrier Aggregation across multiple bands
- SIM Type: 1Ã Nano SIM Card
- Frequency: Downlink: 300 Mbps, Uplink: 50 Mbps
- DPI: Deep Packet Inspection supporting 2421 application types
- Access Control: Source/Destination IP ACL, Stateful ACL, IPv4/IPv6 ACL, National Based ACL, FQDN
- DNS Proxy: DNSSEC, DoH, DoT, DNS Override
- Filtering: Web Group Filtering, URL Filtering, Web Security
- ARP Inspection: Sending GARP Packets, ARP Scanning, IP-MAC Binding, ARP Detection
- Attack Defense: TCP/UDP/ICMP Flood Defense, Block TCP Scan (Stealth FIN/Xmas/Null), Block Ping from WAN

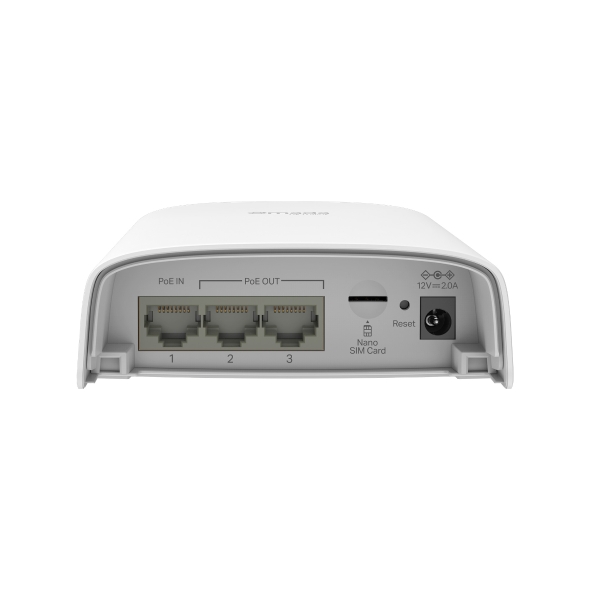

- Interface: 3 Gigabit WAN/LAN Ports
- Network Media: 10BASE-T, 100BASE-TX, 1000BASE-T with UTP/STP cables (max 100 m)
- Button: Reset Button
- Power Supply: 802.3at/bt PoE, Passive PoE, DC Power Supply (adapter not included)
- Wi-Fi Frequency & Signal Rate: 2.4 GHz: 574 Mbps, 5 GHz: 2402 Mbps (HE160)
- Max. Power Consumption: 14.5W without PoE, 63W with PoE
- Flash: 256 MB NAND
- DRAM: 512 MB DDR4

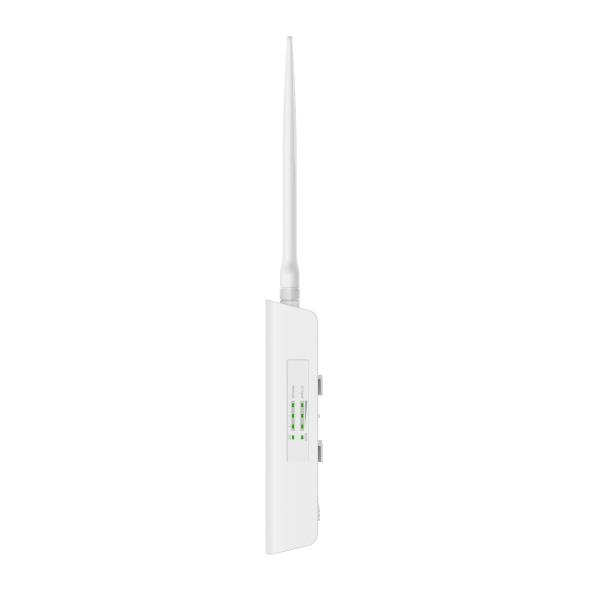

- LED Indicators: 4G Signal, WLAN, WAN/LAN, SYS
- Net Weight: 0.430 Kg (including antennas)
- Dimensions (W x D x H): 4.0 Ã 1.5 Ã 6.9 in (100.4 Ã 38.7 Ã 174.8 mm) excluding antennas
- Antenna: 2 internal Wi-Fi antennas, 2 external LTE antennas
- Surge Protection: 4 kV surge protection

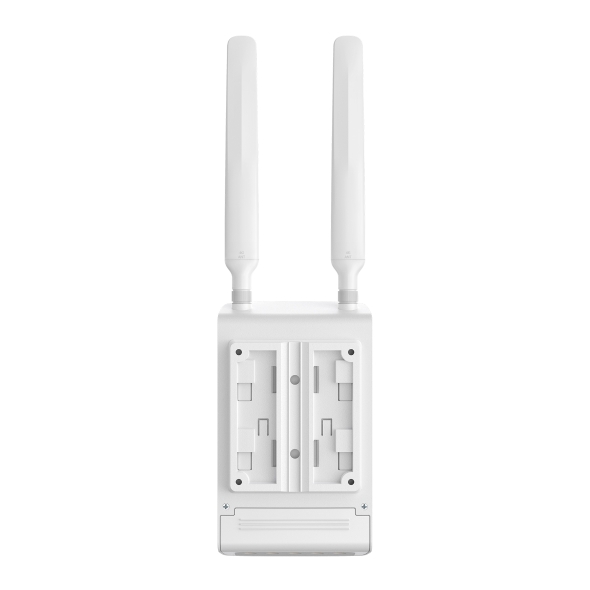

- Mounting: Pole or Wall Mounting
- Concurrent Session: 120,000
- New Sessions / Second: 3,800
- NAT Throughput (Static IP/DHCP/PPPoE/L2TP/PPTP): Up to ~950 Mbps depending on protocol
- Packet Forwarding Rate: 1,453,489 pps (66 Byte), 81,275 pps (1,518 Byte)
- VPN Throughput: IPsec up to 568.3 Mbps, GRE up to 450.3 Mbps unencrypted, WireGuard 462.8 Mbps, OpenVPN 85.1 Mbps, L2TP and PPTP with encryption support
- DPI Throughput: TCP 1131 Mbps, UDP 974 Mbps
- SSL VPN Throughput: 86.6 Mbps
- Advanced Features: Seamless Roaming, Mesh, OFDMA, Beamforming, MU-MIMO, Rate Limit, Airtime Fairness, Automatic Channel Selection, WPA/WPA2/WPA3 encryption, Multiple SSIDs (16 total), Load Balance, Band Steering, RADIUS Accounting, MAC Authentication, Reboot and Wireless Schedules
- Guest Network: Supported
- WAN Connection Types: Static IP, Dynamic IP, PPPoE, PPTP, L2TP
- DHCP: DHCP Server, DHCPv6 PD Server, DHCP Options Customization, Address Reservation, Multi-IP Interfaces
- VPN Support: IPsec (100 tunnels), PPTP (50 tunnels), L2TP (50 tunnels), OpenVPN (55 tunnels), WireGuard
- Web Authentication: No Authentication, Simple Password, Hotspot, External Radius and Portal Server, LDAP
- Management: Omada App support, Omada Cloud Essentials, Cloud-Based Controller, Hardware and Software Controllers, Remote Management, SNMP, CLI, Syslog
- Certification: CE, FCC, RoHS
- Package Contents: ER703WP-4G-Outdoor unit, Mounting Kits, Passive PoE Adapter, Quick Installation Guide
- System Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10/11, MAC OS, NetWare, UNIX, Linux
- Environment: Operating Temperature -30°C to 60°C, Storage Temperature -40°C to 70°C, Operating Humidity 5% to 95% non-condensing, Storage Humidity 5% to 90% non-condensing
Source: TP-Link official page
