Description
Overview

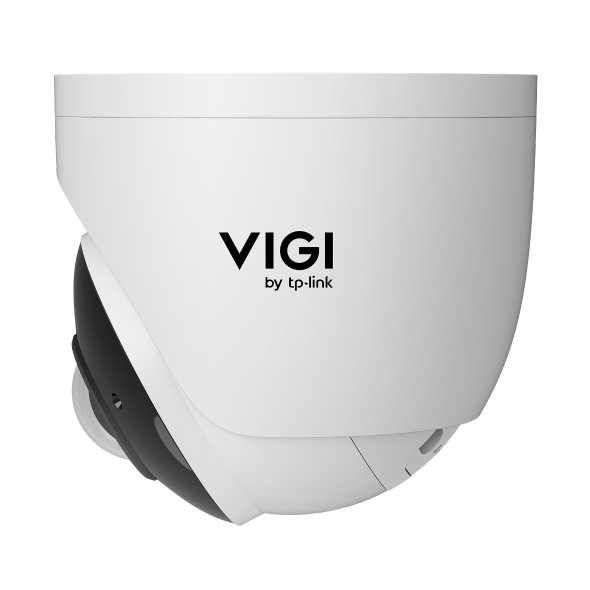

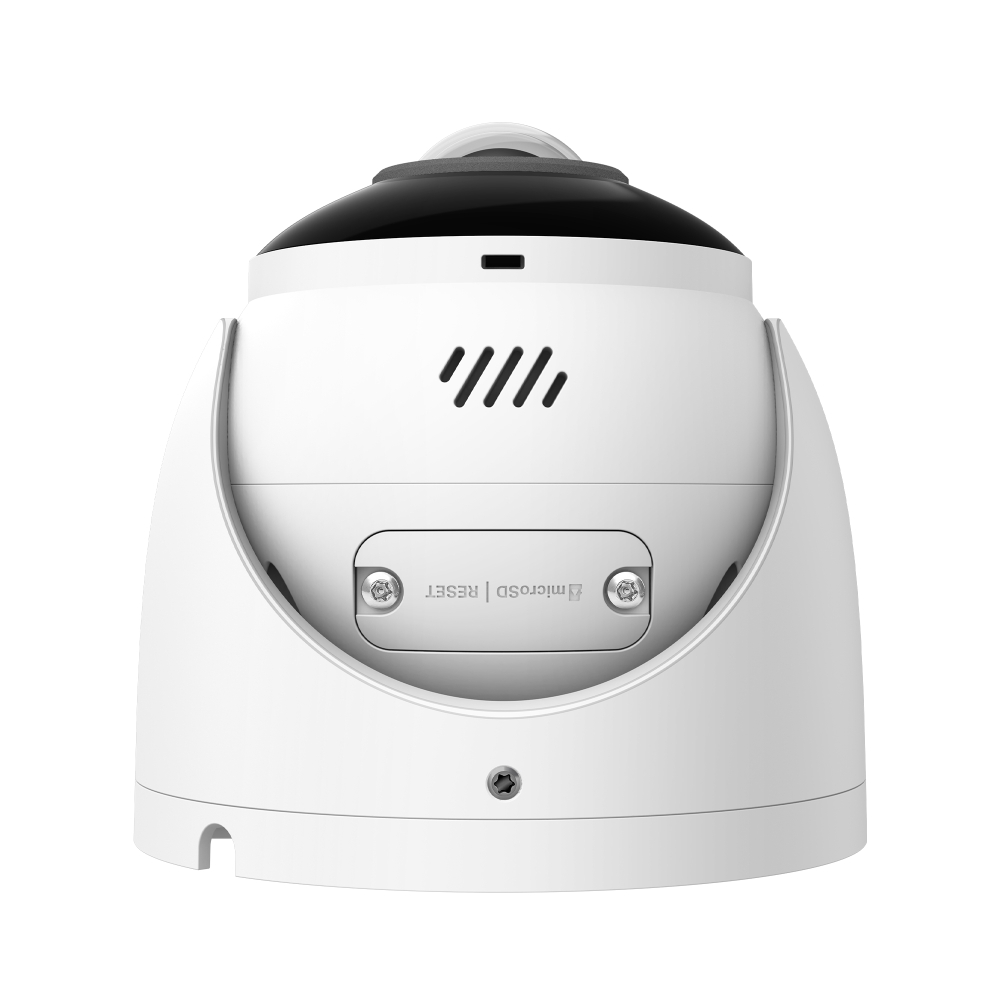

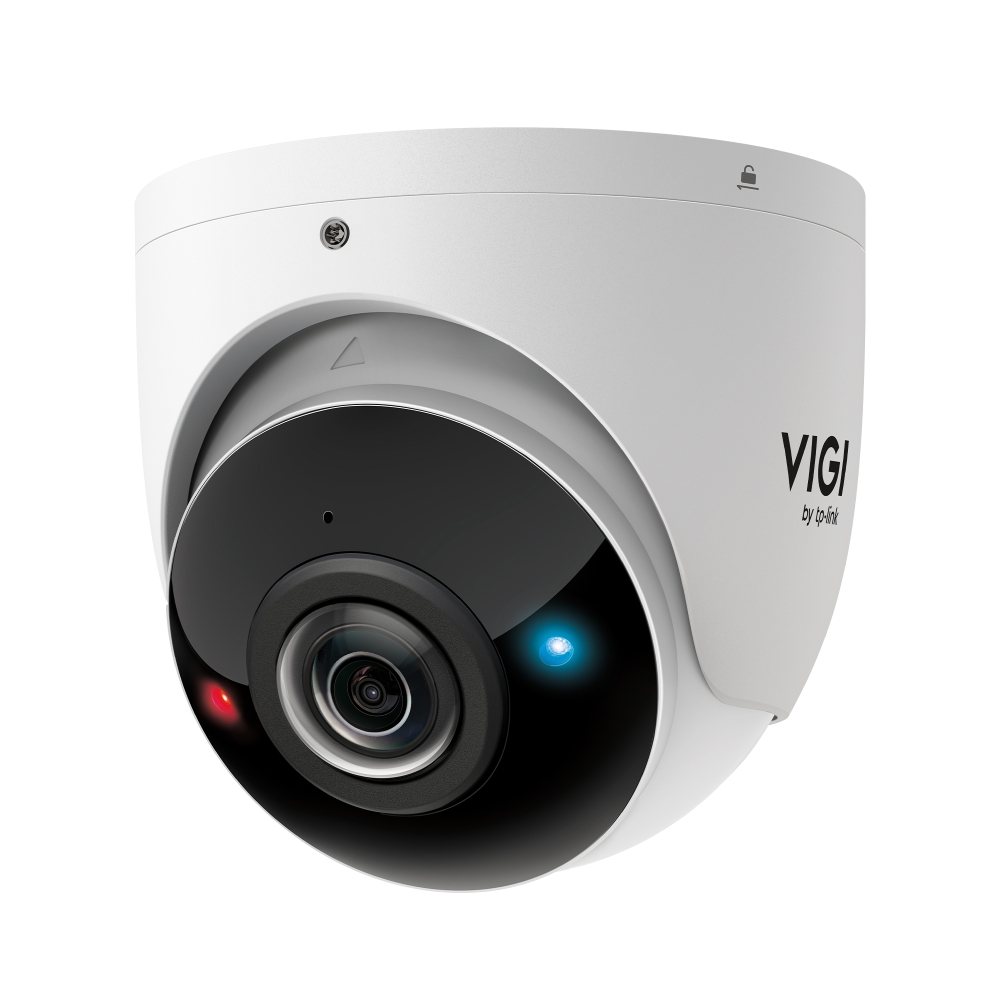

The InSight S485PI is a high-resolution 8MP IR panoramic turret network camera designed to provide comprehensive surveillance coverage for your business. Featuring a 1/2.7â Progressive Scan CMOS sensor and a fixed 1.65 mm focal length lens, it delivers a wide 180° horizontal field of view to monitor large areas effectively. The camera supports two-way audio communication with a built-in microphone and speaker, enhancing interaction and security monitoring capabilities.
Equipped with advanced IR LEDs, it ensures clear imaging even in low-light or no-light conditions up to 20 meters. The device supports multiple video compression standards including H.265+ and H.264+, optimizing bandwidth and storage efficiency. Its rugged metal construction with IP67 waterproof and IK10 vandal-proof certifications makes it suitable for various challenging environments.
The camera offers flexible power options including 12V DC and PoE (802.3at), simplifying installation. It also supports on-board storage via a MicroSD card slot with capacity up to 512 GB. Smart event detection features such as intrusion, line-crossing, and loitering detection enhance security by providing intelligent alerts.
Technical Specifications
- Image Sensor: 1/2.7â Progressive Scan CMOS
- Shutter Speed: 1/3 to 1/10000 s
- Minimum Illumination: 0.005 Lux; 0 Lux with IR light
- Lens Type: Fixed Focal Lens
- Focal Length: 1.65 mm
- Aperture: F2.0
- Field of View (FOV): Horizontal 180°, Vertical 86°, Diagonal 180°
- IR LED: 4 LEDs, Range 20 m (65.62 ft), Wavelength 850 nm
- Max. Resolution: 3840×2160
- Video Compression: H.265+/H.265/H.264+/H.264
- Audio: Two-Way Audio with built-in microphone and speaker; Audio In/Out interfaces; 8 KHz sampling rate
- Network Interface: 1 RJ45 10/100M Ethernet port with PoE support
- Storage: MicroSD card slot supporting up to 512 GB
- Power Supply: 12V DC ±5%, Max 18 W; PoE 802.3at, class 4, Max 21 W
- Protection: IP67 waterproof, IK10 vandal-proof
- Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Dimensions: 4.4 Ã 4.4 Ã 4.3 in (112.3 Ã 112.3 Ã 110.2 mm)
- Weight: 0.76 Kg
- Certifications: CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK10
- Smart Events: Intrusion, Line-Crossing, Region Entering/Exiting, Object Abandoned/Removal, Loitering, People and Vehicle Detection, Abnormal Sound, Scene Change
- Basic Events: Motion Detection with Human & Vehicle Classification, Video Tampering, Illegal Login, Alarm Input
- Alarm Linkage: Memory Card Recording, FTP Upload, Alarm Output, Push Notifications, Active Defence (Sound & Light), Email Alarm
- Client Support: VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
- Web Browser Compatibility: Google Chrome® 57+, Firefox® 52+, Safari® 11+, Microsoft® Edge 91+
- Package Contents: VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories
Source: TP-Link official page
Datasheet & Support Downloads
