Description
Overview

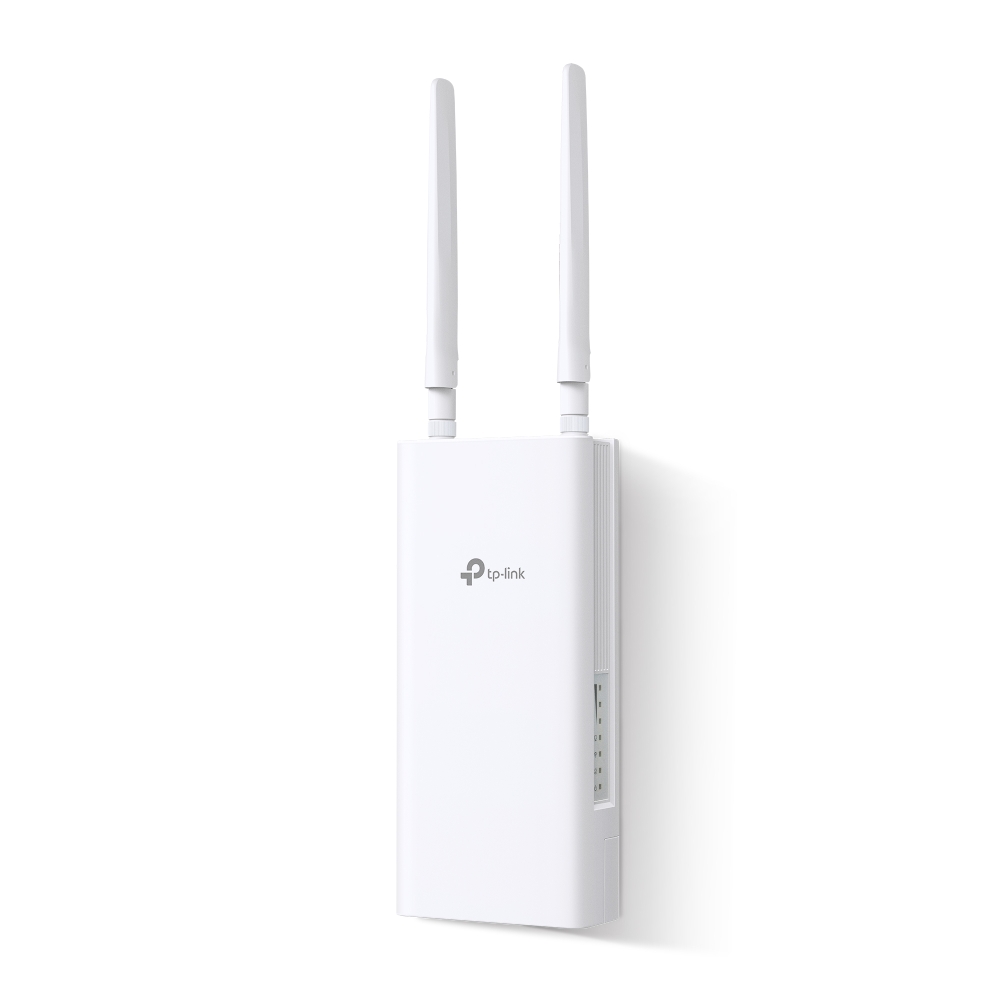

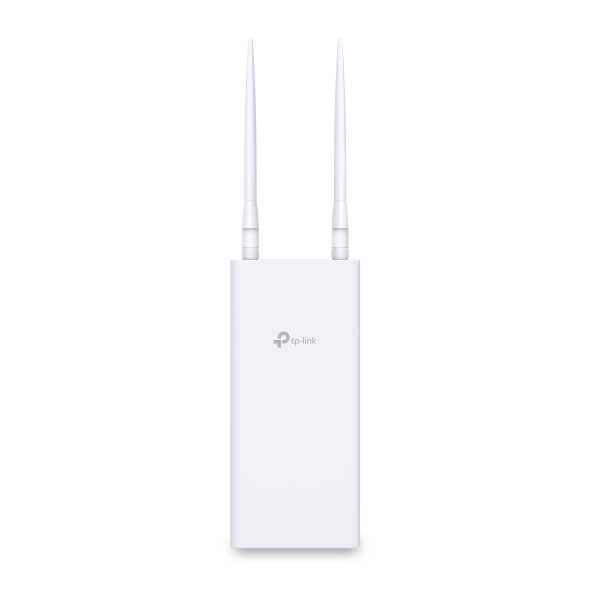

The TP-Link TL-MR100-Outdoor is a robust 4G LTE outdoor router designed to deliver reliable wireless connectivity with speeds up to 300 Mbps. Featuring an IP65 weatherproof rating, it is built to withstand harsh outdoor environments. The router supports plug-and-play installation with both Power over Ethernet (PoE) and DC power supply options, making it highly versatile for various deployment scenarios.
Equipped with dual detachable LTE antennas and a 2.4 GHz wireless band, the TL-MR100-Outdoor ensures stable and efficient wireless coverage. It supports multiple network types including 4G FDD-LTE, TDD-LTE, and 3G, providing flexible connectivity options. The device also offers advanced security protocols and management features to maintain network integrity and ease of use.
Technical Specifications
- Network Type: 4G FDD-LTE Bands B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz), TDD-LTE Bands B38/B40/B41 (2600/2300/2500 MHz), 3G DC-HSPA+/HSPA/UMTS Bands B1/B5/B8 (2100/850/900 MHz)
- Speed: Download up to 150 Mbps, Upload up to 50 Mbps
- SIM Type: 1Ã Nano SIM Card Slot

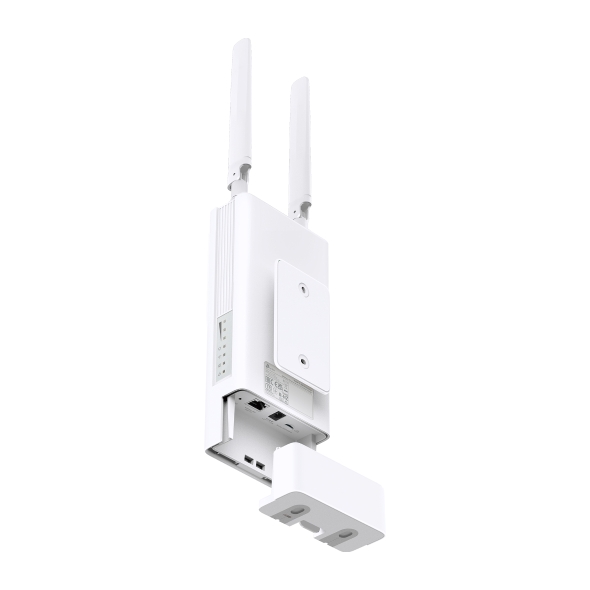

- Interface: 1Ã 100 Mbps WAN/LAN Port (PoE In), 1Ã Nano SIM Card Slot, 1Ã DC Power Port
- Buttons: 1Ã Reset Button
- Power: 12V/1A DC, 24V/0.5A Passive PoE, 44-57V/0.35A 802.3af/802.3at
- Dimensions (W x D x H): 8.9 x 3.9 x 2.2 in (226.6 x 100 x 54.7 mm)
- Antennas: 2Ã Detachable LTE Antennas
- Wireless Standards: IEEE 802.11b/g/n
- Frequency: 2.4 GHz
- Signal Rate: 300 Mbps
- Reception Sensitivity: 11g 54M: -74 dBm, 11n HT20: -73 dBm, 11n HT40: -70 dBm
- Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
- Wireless Security: WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
- Security: DoS, IPv4 SPI Firewall, IP and MAC Address Binding
- Operating Modes: 3G/4G Router, Wireless Router
- WAN Type: Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access)
- Management Features: Local Management, Remote Management
- DHCP: Server, DHCP Client List, Address Reservation
- Port Forwarding: ALG, Virtual Server, Port Triggering, UPnP, DMZ
- Dynamic DNS: TP-Link, DynDns, NO-IP
- Protocols: IPv4, IPv6
- Guest Network: 2.4 GHz guest network
- Administration: Upgrade Firmware, Factory Default, System Log, Diagnostic Tools
- Network Services Enabled by Default: Web Server (HTTP/HTTPS) Ports 80/443 TCP, DHCP Server Port 67 UDP, DNS Port 53 TCP, App Management Ports 22/20002 TCP, CWMP Port 7547 TCP
- Package Content: 1Ã TL-MR100-Outdoor Unit, 1Ã 10-meter RJ45 Ethernet Cable, 1Ã PoE Adapter, 1Ã AC Power Cord, 1Ã Quick Installation Guide, Window/Pole/Wall Mounting Kits
- Requirements: Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browsers (latest versions recommended)
- Certifications: CE, RoHS
- Environment: Operating Temperature: -30°C to 60°C (-22°F to 140°F), Storage Temperature: -40°C to 70°C (-40°F to 158°F), Operating Humidity: 10% to 90% RH, Storage Humidity: 5% to 90% RH
Source: TP-Link official page
