Description
Overview

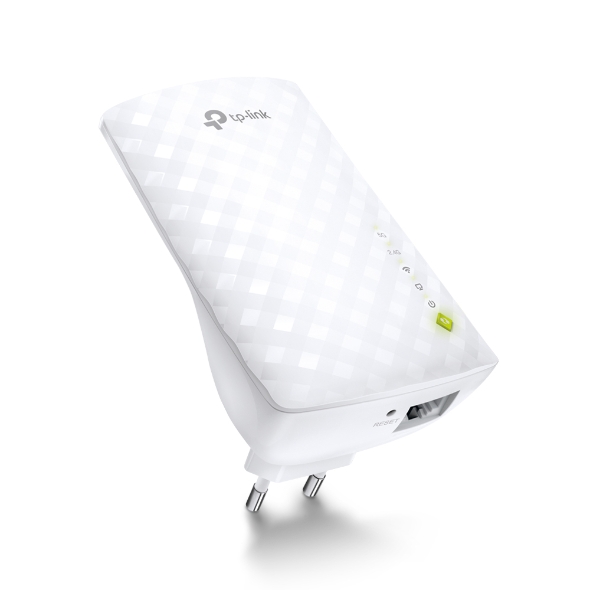

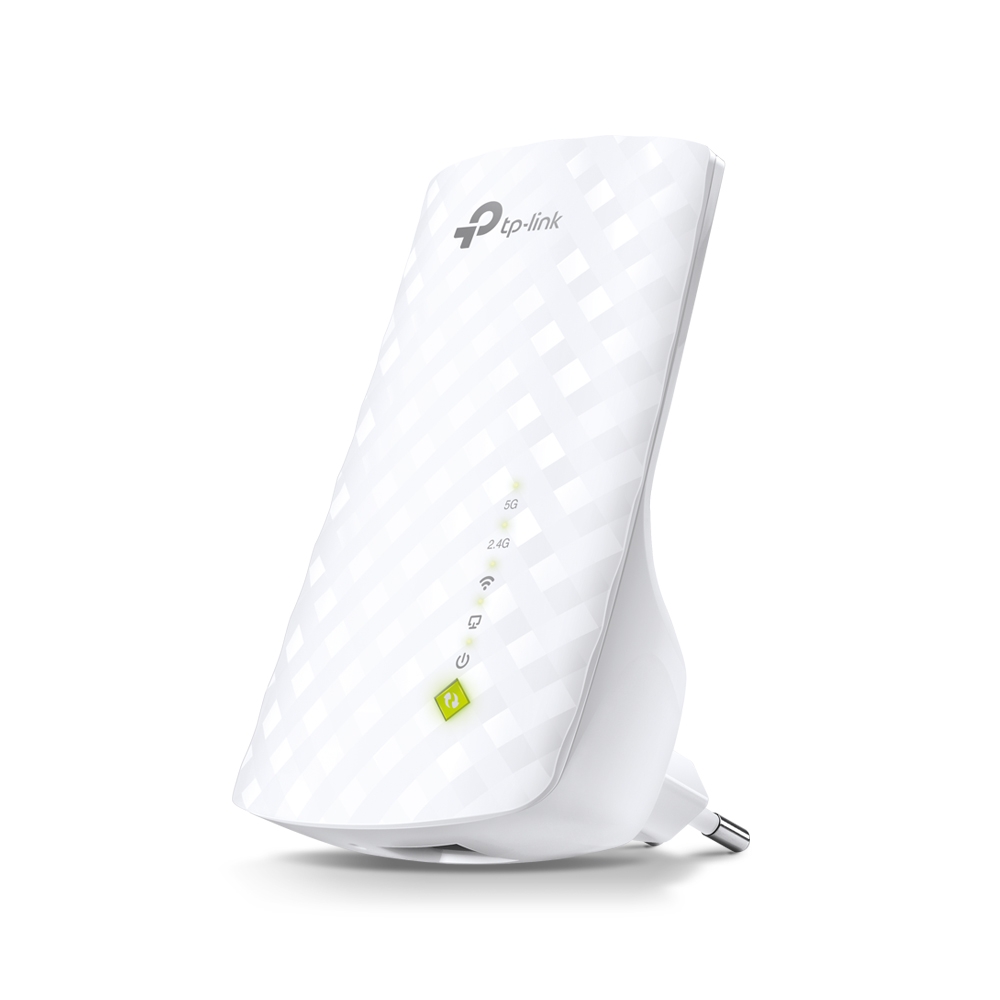

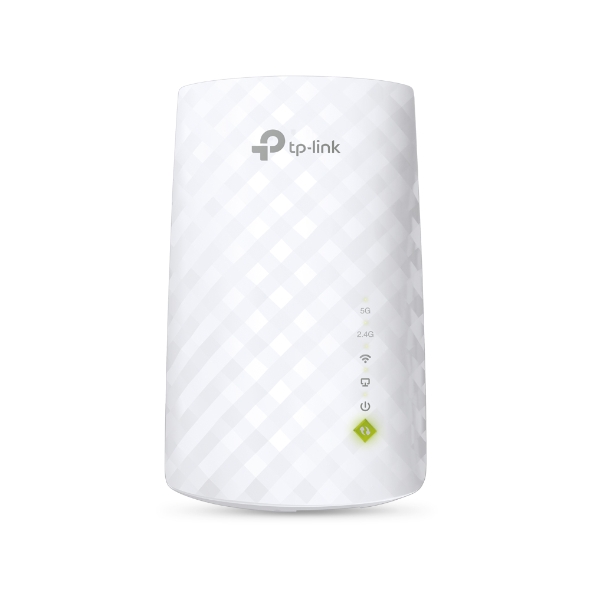

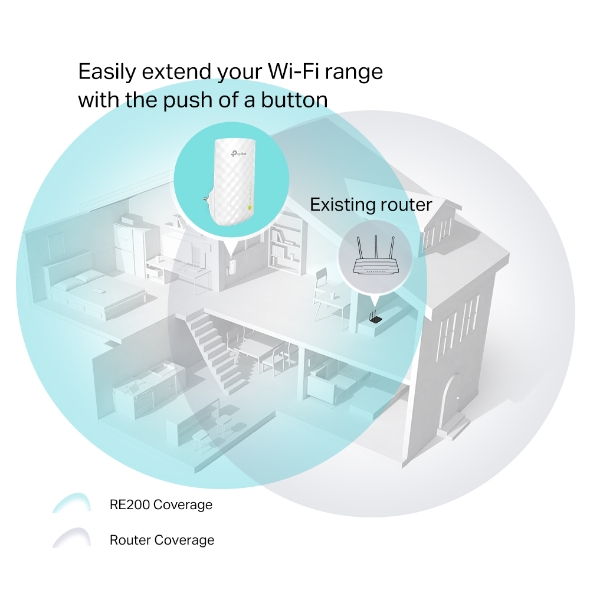

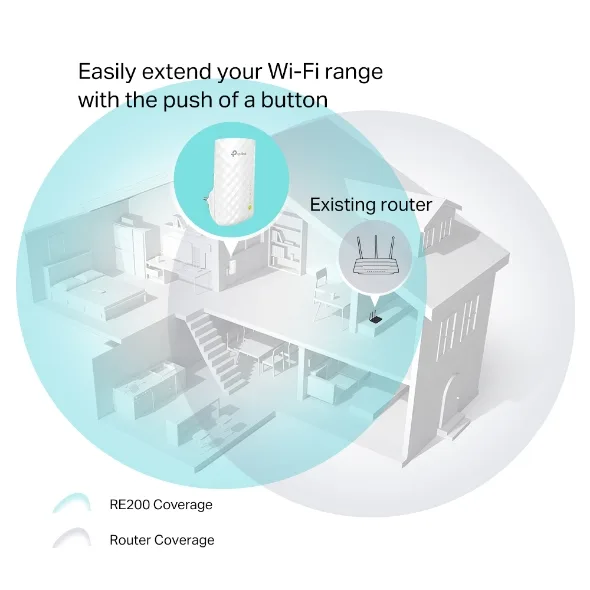

The TP-Link RE200 AC750 Wi-Fi Range Extender enhances your wireless network by extending coverage to areas that are difficult to reach or wire. It supports dual-band Wi-Fi with speeds up to 300Mbps on 2.4GHz and 433Mbps on 5GHz, ensuring stable and fast connections throughout your home or office. Equipped with OneMesh technology, it seamlessly integrates with compatible routers to create a unified mesh network for smooth roaming.
Technical Specifications
- Plug Type: EU, UK, US, AU
- Interface: 1 x 10/100Mbps Ethernet Port (RJ45)
- Buttons: WPS Button, Reset Button
- Input Power: 100-240V~50/60Hz
- Max. Power Consumption: About 6.5W
- Dimensions (W x D x H): 4.3 x 2.6 x 3.0 in (110.0 x 65.8 x 75.2 mm)
- Antenna: 3 Internal Antennas
- Wireless Standards: IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
- Frequency: 2.4GHz & 5GHz
- Signal Rate: 300Mbps at 2.4GHz, 433Mbps at 5GHz
- Working Modes: Range Extender / Access Point
- Reception Sensitivity: 5G: 390M: -60dBm, 29.3M: -83dBm, 180M: -64dBm, 13.5M: -87dBm, 78M: -68dBm, 6.5M: -90dBm, 54M: -75dBm, 6M: -90dBm; 2.4G: 270M: -70dBm, 130M: -70dBm, 108M: -73dBm, 54M: -75dBm, 11M: -86dBm, 6M: -92dBm, 1M: -94dBm
- Wireless Functions: Enable/Disable Wireless Radio, DFS (latest firmware and hardware required), Access Control, LED Control, Power Schedule, Wi-Fi Coverage
- Wireless Security: 64/128/152-bit WEP, WPA-PSK / WPA2-PSK
- Transmission Power: < 20 dBm (EIRP)
- Mesh Technology: OneMesh
- Certification: CE, FCC, RoHS
- Package Content: AC750 Wi-Fi Range Extender RE200, Quick Installation Guide
- System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista, 7, 8, 10; Mac® OS; NetWare®; UNIX®; Linux
- Environment: Operating Temperature: 0°C~40°C (32°F~104°F); Storage Temperature: -40°C~70°C (-40°F~158°F); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
Source: TP-Link official page
