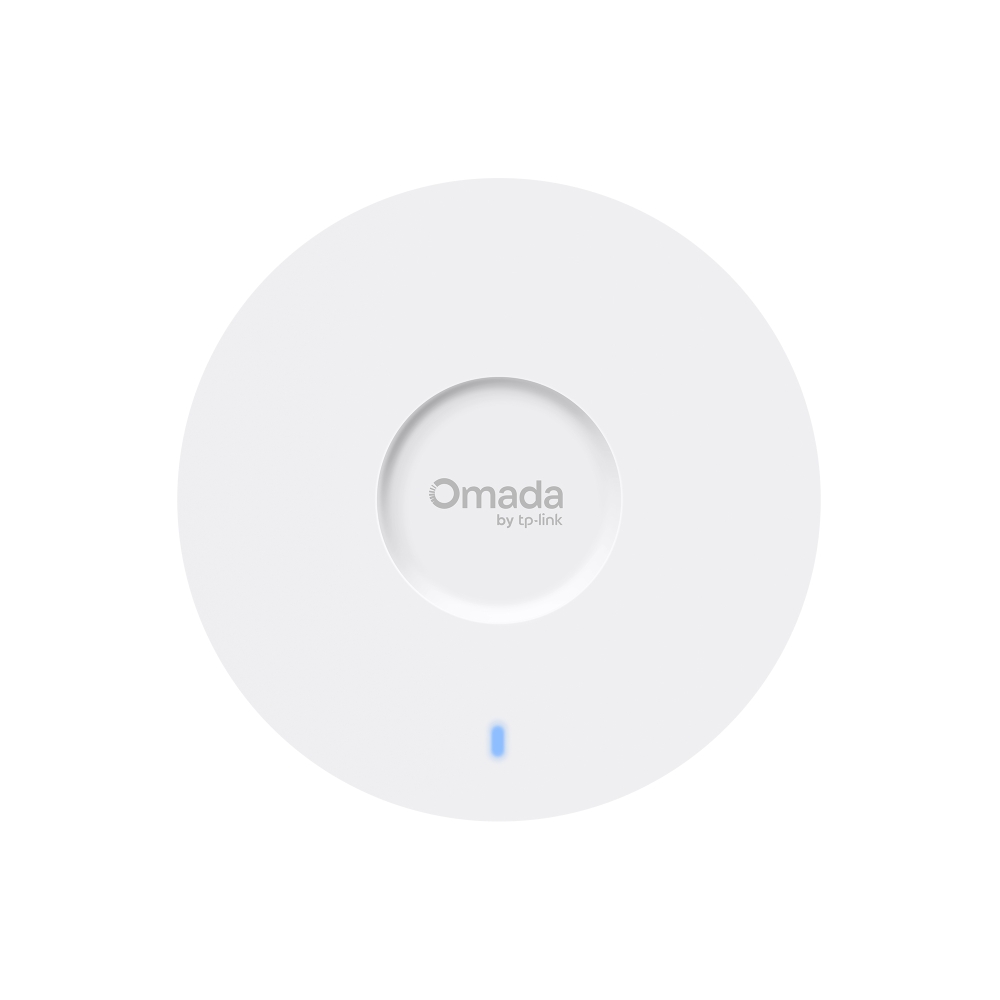

TP-Link EAP650 AX3000 Ceiling Mount WiFi 6 Access Point with 1GB Ethernet Port

Description

Overview

The TP-Link EAP650 is an AX3000 ceiling mount WiFi 6 access point designed with a compact form factor, making it ideal for high-performance business environments such as offices, campuses, retail stores, hotels, and meeting rooms. It supports dual-band wireless connectivity and advanced features to ensure reliable and fast wireless coverage.

Technical Specifications

• Interface: 1× Gigabit Ethernet Port
• Button: Reset
• Power Supply: 802.3at PoE, 12V DC (Power Adapter included) (EU Version: 12 V / 1.0 A DC; US Version: 12 V / 1.5 A DC), 48V Passive PoE
• Max. Power Consumption: EU: 13.7 W; US: 15.5 W
• Weight: Main Unit: 0.38 kg (0.838 lb); Mounting Bracket: 0.054 kg (0.119 lb); Shipping Unit: 0.85 kg (1.87 lbs)
• Dimensions (W x D x H): Main Unit: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm); Shipping Unit: 9.7 × 9.0 × 2.6 in (245 × 228 × 65 mm)
• Antenna: Internal Dual-Band Antennas; 2.4 GHz: 2× 4 dBi; 5 GHz: 2× 5 dBi

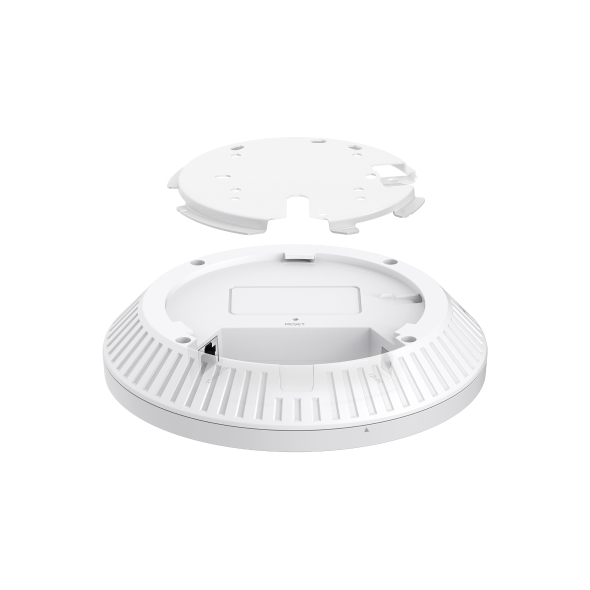

• Mounting: Ceiling / Wall / Junction Box / T-Bar Mounting (Kits included)
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 5 GHz: Up to 2402 Mbps; 2.4 GHz: Up to 574 Mbps
• Wireless Functions: 1024-QAM, 4× Longer OFDM Symbol, OFDMA, Multiple SSIDs (Up to 16 SSIDs, 8 per band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control, QoS (WMM), MU-MIMO, HE160 (160 MHz Bandwidth), Seamless Roaming, Omada Mesh, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
• Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Transmission Power: CE: 7-20 dBm (2.4 GHz, EIRP), 6-22 dBm (5 GHz, U-NII-1, U-NII-2A, EIRP), 6-27 dBm (5 GHz, U-NII-2C, EIRP); FCC: 4-26 dBm (2.4 GHz), 4-24 dBm (5 GHz, U-NII-1), 4-25 dBm (5 GHz, U-NII-2A, U-NII-2C, U-NII-3)
• Omada App: Yes
• Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
• Cloud Access: Yes (requires Omada controller)
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• System Logging Local/Remote Syslog: Local/Remote Syslog
• SSH: Yes
• Web-based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-site Management: Yes
• Management VLAN: Yes
• Zero-Touch Provisioning: Yes (requires Omada controller)
• Certification: CE, FCC, RoHS
• Package Content: EAP650, Power Adapter, Mounting Kits, Installation Guide
• System Requirements: Microsoft Windows XP, Vista, 7, 8, 10, 11, Linux
• Environment: Operating Temperature: 0–40 °C (32–104 °F); Storage Temperature: -40–70 °C (-40–158 °F); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing
