TP-Link EAP723 BE5000 Dual-band Wi-Fi 7 Access Point with 2.5G Port

Description

Overview

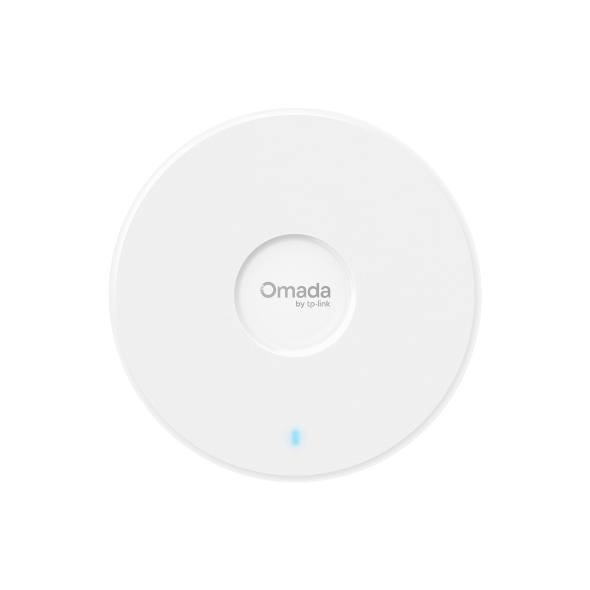

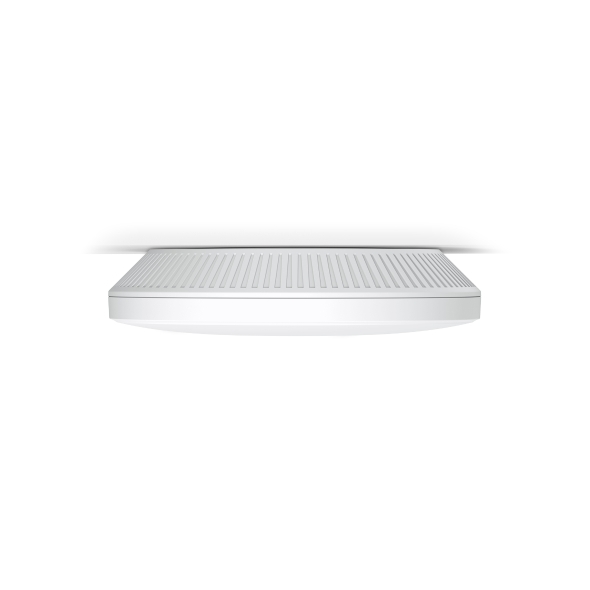

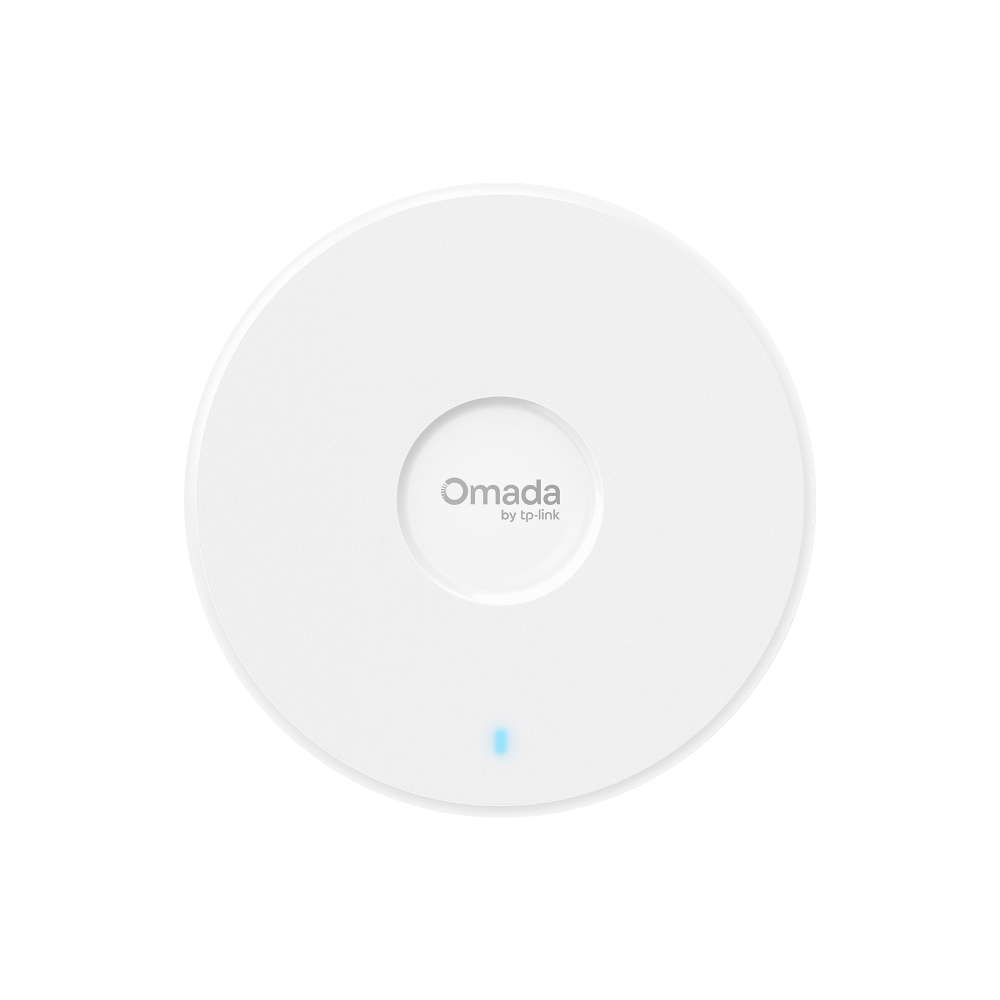

The TP-Link EAP723 is a high-performance ceiling mount Wi-Fi 7 access point based on the BE5000 dual-band chipset. Designed to deliver fast and reliable wireless connectivity, it features a 1× 2.5G Ethernet port and supports a wide range of advanced wireless functions to ensure seamless network performance in demanding environments.

Ideal for business and enterprise use, the EAP723 supports over 250 concurrent clients and covers an area up to 1500 square feet (140 square meters). It offers flexible power options via 802.3at PoE or a 12V/1.5A DC input (DC adapter not included), making installation versatile and convenient. The package includes mounting kits for ceiling, wall, or junction box installation.

Technical Specifications

• Interface: 1× 2.5G Ethernet Port

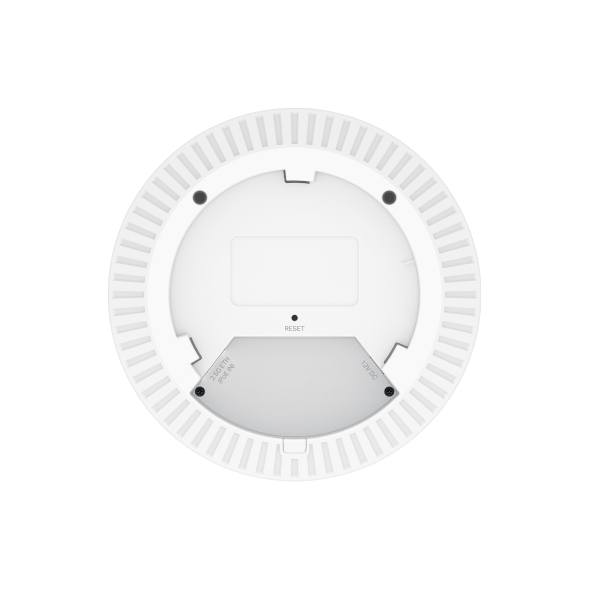

• Button: Reset
• Power Supply: 802.3at PoE or 12V/1.5A DC (DC adapter not included; DC power interface: 12V, accepts 2.1 mm / 5.5 mm center-positive circular plug with 9 mm length)
• Max. Power Consumption: 17.83 W (PoE); 13.99 W (DC)
• Dimensions (W × D × H): 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)
• Antenna: 2.4 GHz: 2× 4.0 dBi; 5 GHz: 2× 5.0 dBi

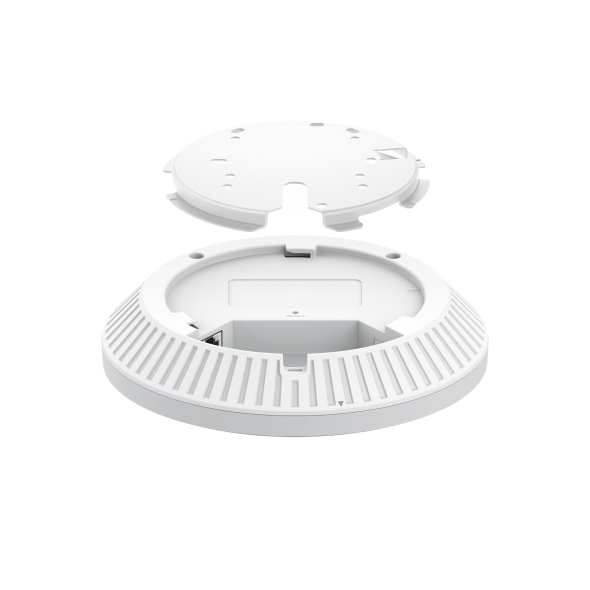

• Mounting: Ceiling / Wall / Junction Box Mounting (kits included)
• Coverage: 1500 ft² (140 m²)
• Concurrent Clients: 250+
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz)
• Wireless Functions: MLO, 4K-QAM, Seamless Roaming, 240 MHz Bandwidth, Mesh, OFDMA, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDs (16 total; 8 per band), Wireless Schedule, Reboot Schedule, QoS (WMM), Rate Limit, Static IP/Dynamic IP, RADIUS Accounting, MAC Authentication
• Wireless Security: Captive Portal Authentication, Access Control, Maximum MAC Filter: 4,000, Wireless Isolation Between Clients, VLAN, Rogue AP Detection, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Transmission Power: < 25 dBm (2.4 GHz); < 25 dBm (5 GHz UNII-1 & UNII-4); < 24 dBm (5 GHz UNII-2 & UNII-3)
• Omada App: Yes
• Centralized Management: Omada Central (Cloud-Based), Omada Hardware Controller, Omada Software Controller
• Cloud Access: Yes (requires Omada Controller)
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• System Logging Local/Remote Syslog: Yes
• Web-based Management: Yes
• Certification: CE, FCC, RoHS, IC
• Package Content: Omada Wi-Fi 7 Ceiling Mount Access Point EAP723, Installation Guide, Ceiling/Wall/Junction Box Mounting Kit
• Environment: Operating Temperature: 0 °C–40 °C (32 °F–104 °F); Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing

Source: TP-Link official page
