Description
Overview

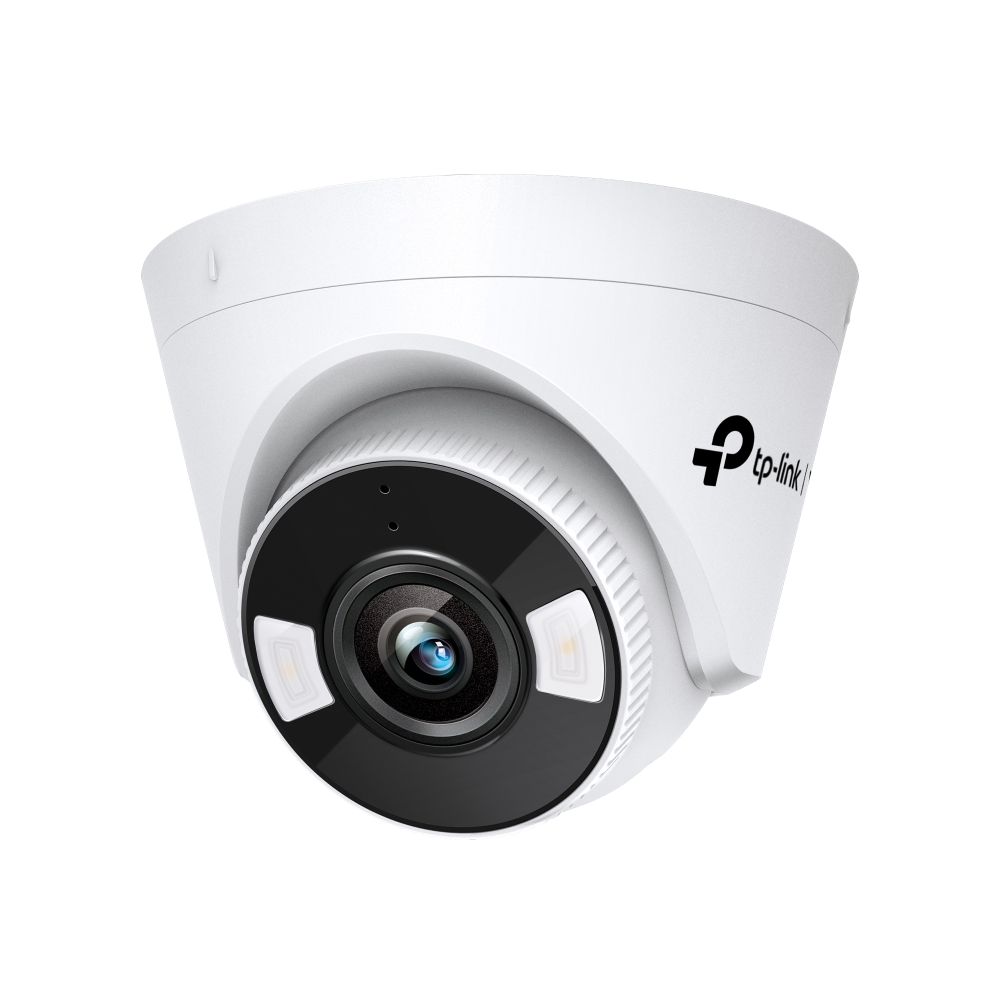

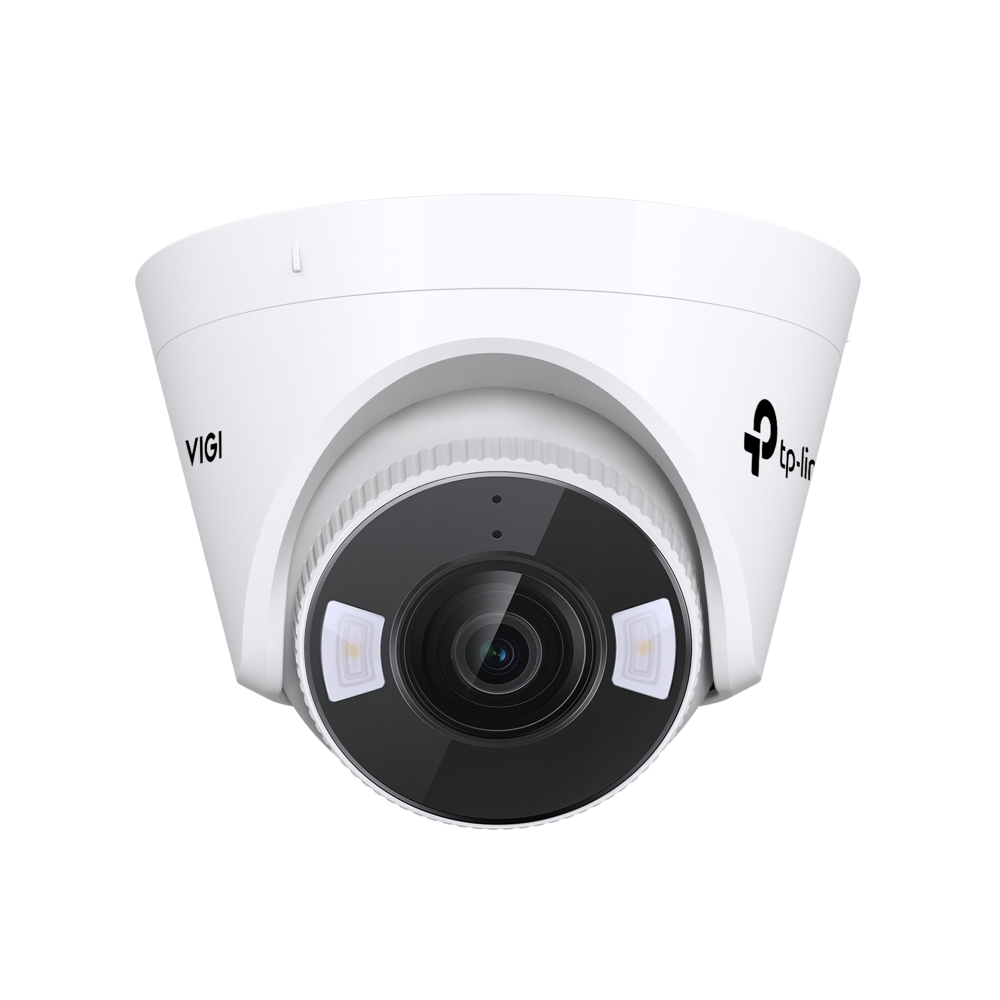

The VIGI C430 is a 3MP full-color turret network camera designed to enhance security for your business. Featuring a 1/2.8â Progressive Scan CMOS sensor and a fixed 2.8mm focal length lens, it delivers clear and detailed video footage with a maximum resolution of 2304 Ã 1296 pixels. The camera supports advanced video compression standards including H.265+ and H.264+, optimizing bandwidth and storage efficiency.
Equipped with both IR and white LEDs, the camera ensures excellent visibility in low-light conditions up to 30 meters. It includes a built-in microphone capable of capturing audio within a 5-meter radius, enhancing situational awareness. The device supports Power over Ethernet (PoE) for flexible installation and can also be powered via a 12V DC power port.
Designed for durability, the VIGI C430 operates reliably in temperatures ranging from -30 °C to 60 °C and humidity levels up to 95% non-condensing. Its compact dimensions and lightweight plastic construction make it easy to mount and integrate into various environments.
Technical Specifications
- Image Sensor: 1/2.8â Progressive Scan CMOS
- Shutter Speed: 1/3 to 1/10000 s
- Slow Shutter: Yes
- Minimum Illumination: 0.005 Lux; 0 Lux with IR/White Light
- Day/Night Mechanism: IR Cut Filter
- Day/Night Switch: Unified / Scheduled / Auto
- Lens Type: Fixed Focal Lens
- Focal Length: 2.8 / 4 mm
- Aperture: 2.8 mm: F1.64; 4 mm: F1.6
- Field of View (FOV): 2.8mm: Horizontal 107.5°, Vertical 57.2°, Diagonal 128.7°; 4mm: Horizontal 84.4°, Vertical 44.3°, Diagonal 100.6°
- DORI Distance (2.8 mm lens): Detect 52 m, Observe 22 m, Recognize 10 m, Identify 5 m
- DORI Distance (4 mm lens): Detect 70 m, Observe 29 m, Recognize 14 m, Identify 7 m
- Range: Pan 0° to 360°, Tilt 0° to 85°, Rotate 0° to 360°
- IR LEDs: 2 LEDs, 30 m range, 850 nm wavelength
- White LEDs: 2 LEDs, 30 m range
- Illuminator Control: Auto / Scheduled / Always on / Always off
- Max. Resolution: 2304 Ã 1296
- Main Stream Frame Rate & Resolution: Up to 25fps at 2304×1296, 2048×1280, 1920×1080, 1280×720 (max 20fps if rotated 90° or 270°)
- Sub-Stream Frame Rate & Resolution: Up to 25fps at 704×576, 640×480, 352×288, 320×240 (max 20fps if rotated 90° or 270°)
- Bit Rate Control: CBR, VBR
- Video Compression: Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
- Audio: Built-in microphone, 8KHz sampling rate, 64 Kbps (G.711 alaw), environment noise filtering
- Protocols Supported: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, 802.1x, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP
- ONVIF: Yes (Profile S/T)
- Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
- Client Software: VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
- Web Browser Compatibility: Google Chrome® 57+, Firefox® 52+, Safari® 11+, Microsoft® Edge 91+
- Smart Events: Intrusion Detection, Line-Crossing Detection, Region Entering/Exiting Detection, Object Abandoned/Removal Detection, Abnormal Sound Detection, People and Vehicle Detection
- Basic Events: Motion Detection (with Human & Vehicle Classification), Video Tampering Detection, Exception (Illegal Login)
- Alarm Linkage: White Light Flashing, Message Push
- Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
- Power Supply: 12V DC ±5%, Max. 5.5 W (5.5mm Coaxial Power Plug); PoE 802.3af/at, class 0, Max. 6 W
- Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Storage Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
- Operating Humidity: 95% or Less (Non-Condensing)
- Storage Humidity: 95% or Less (Non-Condensing)
- Material: Plastic
- Dimensions (L Ã W Ã H): 4.8 Ã 3.3 Ã 4.8 in (123 Ã 83 Ã 123 mm)
- Net Weight: 0.21 Kg
- Gross Weight: 0.36 Kg
- Certifications: CE, NTRA, VCCI, BSMI
- Package Contents: VIGI Network Camera, Quick Start Guide, Mounting Accessories
