TP-Link EAP610 AX1800 WiFi 6 Ceiling Mount Access Point with Gigabit Ethernet

Description

Overview

The TP-Link EAP610 is a high-performance AX1800 Dual Band WiFi 6 access point designed for ceiling mounting. It is ideal for environments such as offices, hospitality venues, schools, restaurants, and meeting rooms. This device delivers fast and reliable wireless connectivity with support for up to 250+ concurrent clients and coverage up to 115 square meters (1250 ft²).

Equipped with a single Gigabit Ethernet port supporting 802.3af PoE, 48 V Passive PoE, and a 12 V/1 A DC power adapter (included), the EAP610 offers flexible deployment options. Its internal omni antennas provide strong signal strength on both 2.4 GHz and 5 GHz bands. The device supports advanced wireless technologies including MU-MIMO, OFDMA, seamless roaming (802.11k/v/r), and Omada Mesh for enhanced network performance and user experience.

Security features include WPA3-Personal/Enterprise, captive portal authentication, access control, wireless MAC address filtering, and rogue AP detection. Centralized management is available through Omada Cloud, hardware, or software controllers, enabling easy network monitoring and configuration.

Technical Specifications

• Model: EAP610
• Wireless Standard: IEEE 802.11ax/ac/n/g/b/a
• Frequency Bands: 2.4 GHz and 5 GHz
• Maximum Data Rate: 5 GHz: up to 1201 Mbps; 2.4 GHz: up to 574 Mbps
• Concurrent Clients: 250+
• Interface: 1× Gigabit Ethernet port
• Power Supply: 802.3af PoE, 48 V Passive PoE, 12 V/1 A DC (adapter included)
• Max Power Consumption: 10.9 W (PoE); 9.9 W (DC)
• Antenna: Internal omni antennas; 2×4 dBi (2.4 GHz), 2×5 dBi (5 GHz)

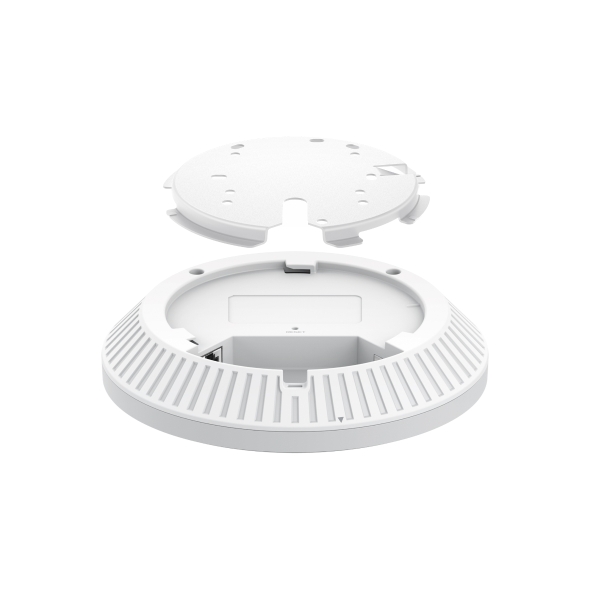

• Mounting: Ceiling, wall, junction box (kits included)
• Coverage Area: 115 m² (1250 ft²)
• Wireless Features: 1024-QAM, 4× longer OFDM symbol, OFDMA, MU-MIMO, multiple SSIDs (up to 16), seamless roaming (802.11k/v/r), Omada Mesh, band steering, load balancing, airtime fairness, beamforming, rate limiting, wireless scheduling, and statistics
• Wireless Security: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, captive portal authentication, access control, MAC filtering, wireless isolation, SSID to VLAN mapping, rogue AP detection, 802.1X support
• Transmission Power: CE: 7–20 dBm (2.4 GHz, EIRP), 7–23 dBm (5 GHz U-NII-1 & U-NII-2A, EIRP), 7–27 dBm (5 GHz U-NII-2C, EIRP); FCC: 4–24 dBm (2.4 GHz), 4–24 dBm (5 GHz U-NII-1 & U-NII-3)
• Management: Omada Central (cloud-based), hardware controller, software controller; web-based HTTP/HTTPS; SNMP v1/v2c/v3; SSH; L3 management; multi-site management; VLAN support; zero-touch provisioning
• LED Control: On/off control available
• System Logging: Local and remote syslog
• Certification: CE, FCC, RoHS
• Package Contents: EAP610 access point, power adapter, ceiling/wall/junction box mounting kits, installation guide
• System Requirements: Microsoft Windows XP/Vista/7/8/10/11, Linux
• Environment: Operating temperature 0–40 °C (32–104 °F), storage temperature -40–70 °C (-40–158 °F), operating humidity 10–90% RH non-condensing, storage humidity 5–90% RH non-condensing

Source: TP-Link official page
